JTPB-1.2*1.2 Lifting Winches
on Line or Video
One Year
Electric Winch
DC
Fast
Weight Level
1T
1
Moving
Explosion-Proof
CE, ISO 9001
National Standards
1200 mm
1200 mm
30 Kn
203t M
412t M
620 M
zhongmei
Wooden Case or Carton Case
JTPB-1.2*1.2 Lifting Winches
Shandong, China
Product Description
Introduction of Explosion-Proof Mining Underground Hoisting Winch Safe And Smooth Hydraulic Winch
The mining lifting hoisting winch has an anti-overcoiling device, an anti-speed device, an overload and undervoltage protection device, a speed limiting device, a depth indicator failure protection device, a gate tile gap protection device, a loose rope protection device, a deceleration function protection device and a locking device. The overcoil prevention device, the overspeed prevention device, the speed limiting device and the deceleration function protection device are double-wired and independent to ensure safe operation of the winch.zmwm17
Parameter of Explosion-Proof Mining Underground Hoisting Winch Safe And Smooth Hydraulic Winch
| Model | Drum | Max. Wire rope tension KN | Wire Rope Max. Length m | Wire rope | Average lifting speed m/s | Electric motor | Dimension mm | Weight kg | |||||
| Diameter mm | Width mm | The first layer | The second layer | The third layer | Max Dia. mm | Breaking pull sum | Rotating speed r/min | Power KW | |||||
| JTPB-1.2*1.0 | 1200 | 1000 | 30 | 170 | 344 | 516 | 20 | 275 | 1.88-2.4 | 967 | 55-75 | 4658*2680*1450 | 10421 |
| JTPB-1.2*1.2 | 1200 | 1200 | 30 | 203 | 412 | 620 | 20 | 275 | 1.57-2.4 | 967 | 55-75 | 4458*2680*1450 | 9940 |
| JTPB-1.6*1.2 | 1600 | 1200 | 45 | 215 | 433 | 655 | 26 | 405 | 1.56-4 | 975 | 95-155 | 5224*2800*1925 | 15195 |
| JTPB-1.6*1.5 | 1600 | 1500 | 45 | 269 | 542 | 819 | 26 | 405 | 1.56-4 | 975 | 95-155 | 5524*2800*1925 | 15678 |
| JKB-2 X1.8P | 2000 | 1800 | 62 | 332 | 670 | 1013 | 32 | 558 | 2.5 | 735 | 200 | 6410*3234*2600 | 25560 |
| JKB-2 X1.5P | 2000 | 1500 | 62 | 277 | 557 | 842 | 32 | 558 | 2.5 | 735 | 200 | 6160*3234*2600 | 24780 |
| JKB-2.5X2P | 2500 | 2000 | 83 | 373 | 755 | 1143 | 40 | 747 | 3 | 740 | 315 | 6700*3610*2600 | 36998 |
| JKB-2.5X2.3P | 2500 | 2300 | 83 | 429 | 867 | 1312 | 40 | 747 | 3 | 740 | 320 | 7000*3610*2600 | 39620 |

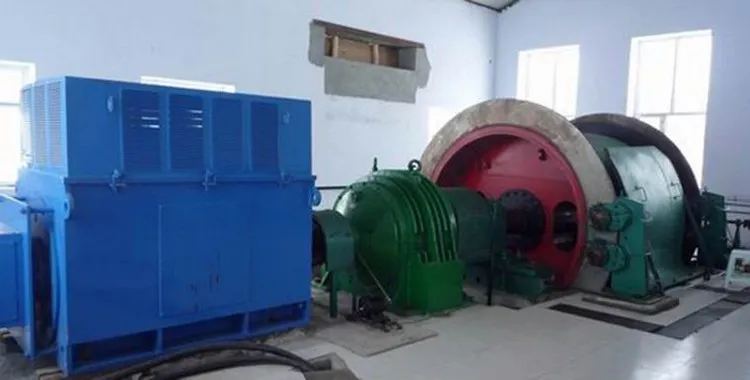

Pictures of Explosion-Proof Mining Underground Hoisting Winch Safe And Smooth Hydraulic Winch
