Product Description

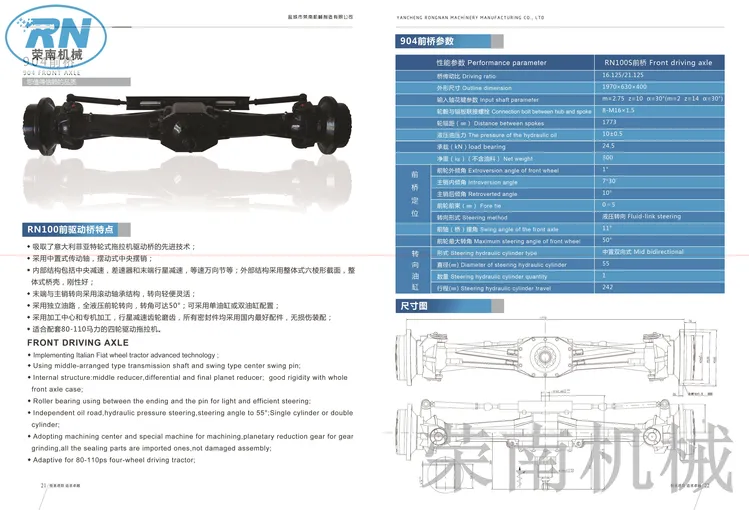

Product Information:
- Italian Fiat wheel tractor advanced technology implemented
- Middle-arranged type transmission shaft and swing type center swing pin used
- Internal structure includes middle reducer, differential, and final planet reducer for good rigidity
- Roller bearing used between the ending and the pin for light and efficient steering
- Independent oil road and hydraulic pressure steering with a steering angle of up to 50°
- Available with single cylinder or double cylinder
- Machining center and special machine used for machining
- Planetary reduction gear for gear grinding
- All sealing parts are imported for better quality
- Adaptive for 80-110ps four-wheel driving tractor
Technical Parameter:
Company name: Yancheng City Rong Nan Machinery Manufacturing Co., Ltd.
| Performance parameter | RN100 Front driving axle (904) | |
| Driving ratio | 16.125/21.125 | |
| Outline dimension | 1930×630×400 | |
| Driving shaft front axle | Middle-arranged driving shaft | |
| Input shaft parameter | m=2.75 z=10 α=30°(m=2 z=14 α=30°) | |
| Connection bolt between hub and spoke | 8×M16×1.5 | |
| Distance between spokes (mm) | 1773 | |
| The pressure of the hydraulic oil | 10±0.5 | |
| load bearing (kN) | 24.5 | |
| Net weight (KG) without oil | 280 | |
| Oil Volume | Middle (L) | 7 |
| Round edge (L) | 1.5 | |
| Front Axle Position | Extroversion angle of front wheel | 1° |
| Introversion angle | 7°30´ | |
| Retroverted angle | 3° | |
| Fore tie (mm) | 1~5 | |
| Steering method | Fluid-link steering | |
| Swing angle of the front axle | 11° | |
| Maximum steering angle of front wheel | 50° | |
| Steering Cylinder | Steering hydraulic cylinder type | Right rear\The left and right rear type |
| Diameter of steering hydraulic cylinder(mm) | 55 | |
| Steering hydraulic cylinder quantity | 1 or 2 | |
| Steering hydraulic cylinder travel(mm) | 205 | |
