ZZ3257N3847A
Manual
Diesel
31-40t
Euro 2
6×4
＞8L
≤5
351-450hp
ECE, GCC, ISO, DOT
Radial
Front Lifting Style
Used
Hyva or Holland Hydraulic System
with
Excellent
HOWO
Nude
China
870423009
Product Description
Truck Features
1. Excellent Condition
2. Low Price
3. Good Quality
Specification
HOWO /6x4series /3825+1350wheelbase/"VOLVO" Technology Cabin
Photos
Details
Delivery
Contact:
Mobile +8618754250907
If any inquiry, please feel free to contact us at any time.
1. Excellent Condition
2. Low Price
3. Good Quality
Specification
HOWO /6x4series /3825+1350wheelbase/"VOLVO" Technology Cabin
| Dimension | ||
| Overall Dimensions(L×W ×H)(mm)(unloaded) | 8545×2496×3550 | |
| Cargo body inner size (L×W×H) (mm) | 5600×2300×1500 Middle Lifting system, bottom 8mm/side 6mm | |
| Wheel base (mm) | 3825+1350 | |
| Approaching angle/Departure angle(°) | 19/23 | |
| Overhang(front/rear) (mm) | 1500/1870 | |
| Ground Clearance | 340 | |
| Engine | ||

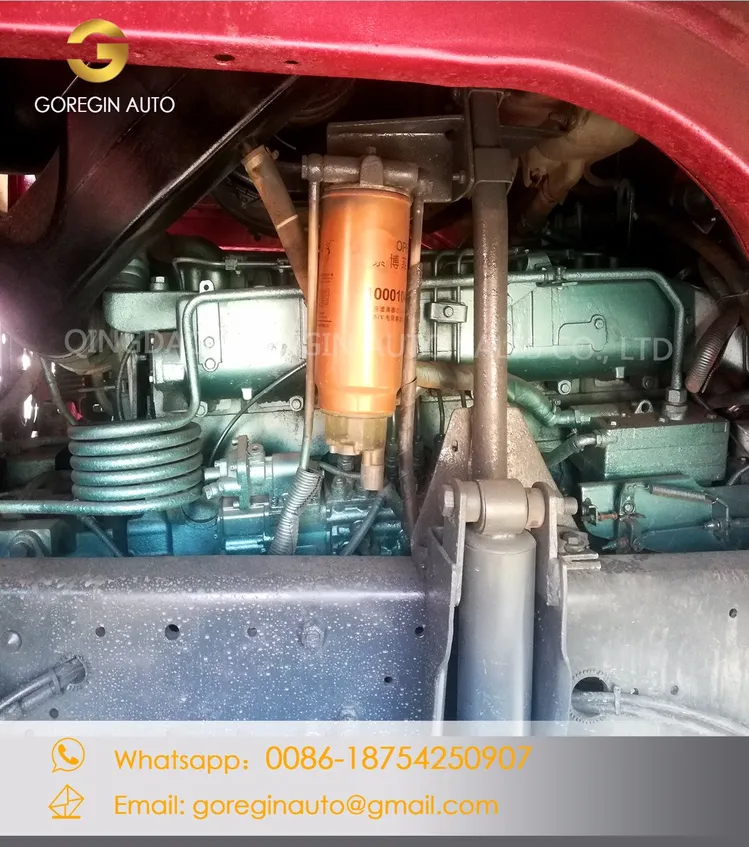

| WD615.97E (Steyr technology, made by China National Heavy Duty truck Group) 9726cc Diesel engine Emission standard Euro3 water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection Power max(kw/rpm) 276kw(375HP)/2200 | ||
| Max speed(km/h) | 75 | |
| Curb weight(kg) | 12000KG | |
| Loading Weight(kg) | 25000KG | |
| Fuel tanker capacity(L) | 300 | |
| Transmission | Model | HW19710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF8118 |
| Front axle | Steering with double T-cross section beam 9tons | |
| Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels 16tons*2 | |
| Tire | 12.00R20 | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO76 Standard cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
