ZZ3257N3847A
Manual
Diesel
51-60t
Euro 2
6×4
＞8L
≤5
351-450hp
ECE, GCC, ISO, DOT
Radial
Front Lifting Style
Used
Hyva or Holland Hydraulic System
with
Excellent
2-5 Years
<40000km
HOWO
Nude
China
870423009
Product Description
Specification

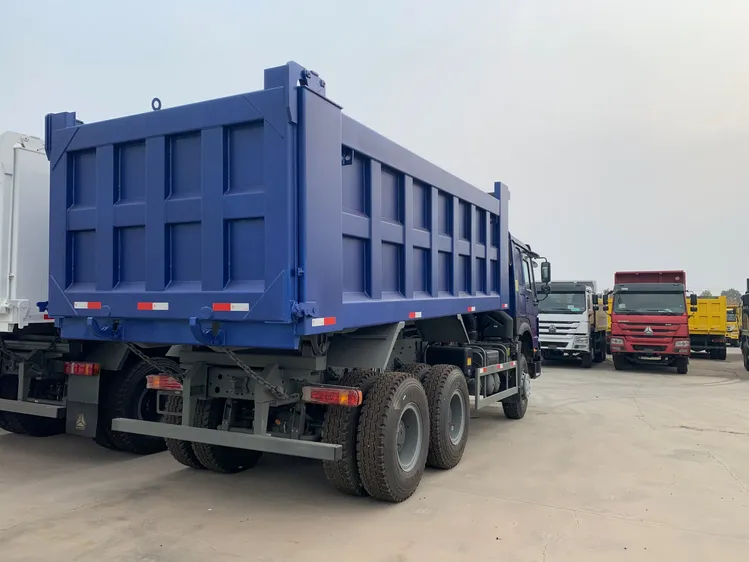

HOWO /6x4series /3825+1350wheelbase/"VOLVO" Technology Cabin
Detail
Delivery
Contact:
If any inquiry, please feel free to contact us at any time.
Justin Chen
HOWO /6x4series /3825+1350wheelbase/"VOLVO" Technology Cabin
| Dimension | ||
| Overall Dimensions(L×W ×H)(mm)(unloaded) | 8545×2496×3450 | |
| Cargo body inner size (L×W×H) (mm) | 5600×2300×1400, Middle Lifting system, bottom 8 mm/side 6mm | |
| Wheel base (mm) | 3825+1350 | |
| Approaching angle/Departure angle(°) | 19/23 | |
| Overhang(front/rear) (mm) | 1500/1870 | |
| Ground Clearance | 340 | |
| Engine | ||
| WD615.69 (Steyr technology, made by China National Heavy Duty truck Group) 9726cc Diesel engine Emission standard Euro2 water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection Power max(kw/rpm) 247kw(336HP)/2200 | ||
| Max speed(km/h) | 75 | |
| Curb weight(kg) | 12000KG | |
| Loading Weight(kg) | 25000KG | |
| Fuel tanker capacity(L) | 300 | |
| Transmission | Model | HW19710,10 forward&2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Steering system | Model | ZF8118 |
| Front axle | Steering with double T-cross section beam 9tons | |
| Rear axle | Pressed axle housing, central double reduction with differential locks between axles and wheels AC 16tons*2 | |
| Tire | 12.00R20 | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw | |
| Starter | 7.5Kw/24V | |
| Cab | HOWO76 Standard cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |
Delivery
Contact:
If any inquiry, please feel free to contact us at any time.
Justin Chen
