Model NO.
PCD040
Plug Type
Type 1 / SAE J1772
Max Power
7.2kw
Rated Voltage
230V ±10% AC
Rated Current
32A
Function
Temperature Monitoring
IP Rating
IP66
Car Fitment
Adapted All Models
Application
Home Use/ Commercial Use
Working Temperature
-25ºC~+55ºC
Weight
5kg
Current Adjusting
Yes
Dimension(W/H/D)
265/105/55mm
Transport Package
Carton Box
Specification
SAE J1772
Trademark
BESEN
Origin
China
After-sales Service:
1 Year Warranty
Usb Number:
No
Certification:
FCC, CE, RoHS, ISO
Color:
Black
Input Voltage:
AC 230V

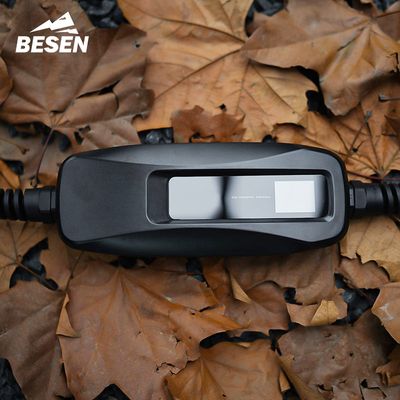

Product Name:
Portable EV Charger
| Electrical Specification | |
| Input voltage | 100V/240V AC |
| Output voltage | 100V/240V AC |
| Max. output power | 7.2kW |
| Max. output current | 32A |
| Input frequency | 47~63Hz |
| Charging interface type | SAE J1772 |
| Functions and Accessories | |
| LCD | 1.8-inch color display |
| RCD | Type A |
| LED Indicator light | Yes |
| Intelligent power adjustment | Yes |
| Charging time setting | No |
| Working Environment | |
| Protection rating | IP 67 |
| Environment temperature | -40ºC ~+80ºC |
| Relative humidity | 0-95% non-condensing |
| Maximum altitude | <2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <8W |
| Certificate | |
| CE | FCC |
| CSA | CCC |
| IP 66 | IK 10 |
