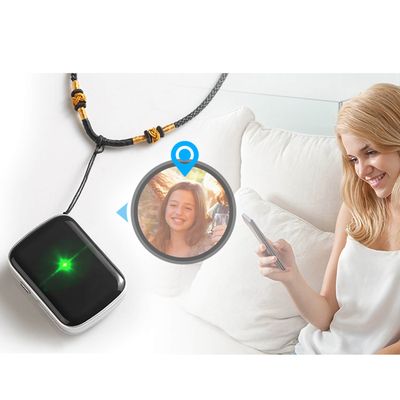

Peace of mind with a mini portable GPS tracker pendant gadget, tiny size and easy-to-use, a real time GPS tracker taking care of the dementia,Alzheimer's or Kids, the vulnerable and elderly's real time position,configure safety zones that automatically alert friends or family relatives if the device moves outside of pre-set specify area,and if your loved one is lost, in distress, has a fall or need assistance in any emergency situation just press the SOS panic button.
Working Features:
•Two way voice call/2 way communication
•Support GPS+Wifi hotspots+LBS positioning
•SOS panic button
•Reject unknown calls
•Real time Google Map location
•Phone book/Contacts
•IP67 waterproof
•Voice remote monitoring /listen in
•History Route
•Alarm Clock
•Pedometer & Sleep monitoring
•Support 2G GSM network
•SMS Alerts
•Low battery alert/SOS alerts
•Remote shutdown
•Geo-fence/Safety Zone(Three non overlapped area can be setup)
•Beesure GPS app and AWS cloud server platform lifetime free
•With 1meter length magnet charging cable with avoid short circuit ic
Specification:
Size:52X38X16mm
weight: 36g
Charging: 1 meter length Magnet charging cable with avoid short circuit IC
Battery:1000mAh Class A Rechargeable Polymer Battery
Button: SOS button+Power button
Sim card slot: support nano sim card
Chipset:MTK MT2503A
GPS chip:Tracking Sensitivity:-165dBm, acquisition sensitivity:-148dBm
Built-in high sensitivity ceramic antenna
| 1. structure division | |||
| structure parts | category | specification | remarks |
| ID design | delicacy and smart | ||
| Whole machine size | 52X38X16mm | ||
| Weight | Color Optional | ||
| colour | 36g | ||
| button | one button(power/SOS button) | ||
| screen | no | ||
| gps antenna | High sensitive ceramics active antenna | ||
| GSM antenna | FPC antenna | ||
| battery | 1000mAh Class A Rechargeable Polymer Battery | ||
| SIM card | Nano SIM | ||
| G-sensor | support | ||
| I/O port | 1 meter length Magnetic charging cable with avoid short circuit IC | ||
| 2. Hardware parts | |||
| Hardware parts | CPU | MTK MT2503A | |
| GPS chip | MTK2503 | ||
| GPRS | Class12 | ||
| GPS signal | L1,1575.42MHz C/A | ||
| GPS channel number | 22 channels | ||
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm | ||
| GPS location accuracy | less than 5m | ||
| LBS location accuracy | 200-500m | ||
| Minimum standby current | less than 0.5 mA | ||
| Average stndby current | less than 2.5 mA | ||
| Average working current | around 55mA | ||
| Working temperature | -20~70ºC | ||
| Working humidity | 5% to 95% non-congealable | ||
| GPS antenna | Built-in high sensitivity FPC antenna | ||
| GSM antenna | Built-in four frequency method of antenna | ||
| bluetooth | bluetooth 3.0(Normal closed) | can support bluetooth 4.0 in future | |
| G-sensor | Support | ||
| MIC | Support | ||
| 3. software parts | |||
| software parts | supported operating systems | Support android 2.3 and above system, IOS5.0 and above. | |
| call function | 2 way talk/The remote monitoring | ||
| Language support | Simplified Chinese and English | Compatible with support for multi-languages | |
| GSM+GPRS+GPS | GPS+LBS+WIFI hotspots Multi-modal positioning | ||
| support AGPS | Cold start 26 seconds positioning | ||
| call function | SOS call, voice monitor, whitelist for don't disturb | ||
| power management | Ultra-low power consumption of power management,intelligent dormancy | ||
| One key emergency | SOS one key emergency function ,autodialing | ||
| Record function | choose the record function on the APP, and then the device can be record actomate, after record,will send back to APP directly. | ||
| Smart Geo-fence | Outside the range setting can be automatic alarm | ||
| wireless upgrading | Software upgrade,remote debugging maintenance, remote setting parameters | ||
| historical route | Can check history of three months | ||
Note: Our server for oversea market is AWS server, all data with key encryption. We are ok to create the sub-account ID and password to manage all your devices in our server platform, you can change the password after you login the web-link. Also our server platform and phone app Beesure GPS ( for Android and IOS) are free of charge all the time, no any advertisement nor subscription in the app. Setracker or Setracker2 registered app login account is ok to use on Beesure GPS app directly.
If you have your own server platform and your own APP, we are OK to offer the server protocol for your configuration with your own server and your own APP software.
Our Service
1) OEM is warmly welcome! We offer free Laser engraved logo, OEM package and instruction manual. OEM MOQ is 1000pcs.
2) All our production conducted full testing in our production line prior packaging.
3) We not charge any extra cost for samples, cost are negotiation.
4) 24*7 online technical supports.
Warranty
1. We guarantee the warranty policy of all our products is one year after shipping, except the artificial damaged. We will fix the item or replace new ones once after receiving the return items.
2. We have after-sales server team and online technical support team , please kindly feel free contact us for any question or comments, you can easy reach us on our office landline or send us email or online whatsapp or wechat.
FAQ
*What's the MOQ and lead time?
1.We don't have strict MOQ, samples or trial order is available anytime. OEM is 1000pcs, we are negotiable with you.
2.Our sample lead time 2-3days, our production lead time is 10-15days, also based on the order quantity.
*How can I get a sample to check quality?
Please kindly forward us the sample order summary (include the exact item style number, preferred colors, sample quantity), then we will make the sample PI for your approval include the pre-paid freight charge through international courier door to door for your approval, after received your payment, we will send you the sample dispatch and advise you the tracking number .Our payment method is ok through PayPal , Western Union /Moneygram or Bank transaction.
*When can I get the prices?
We guarantee we send you complete e-mail offer within 12 hours after we receive your inquiries.
If any question or comments, please kindly feel free to contact us.
