Peace of mind with a mini portable GPS tracker pendant gadget, tiny size and easy-to-use, a real time GPS tracker taking care of the dementia,Alzheimer's or Kids, the vulnerable and elderly's real time position,configure safety zones that automatically alert friends or family relatives if the device moves outside of pre-set specify area,and if your loved one is lost, in distress, has a fall or need assistance in any emergency situation just press the SOS panic button.
Working Features:
•Two way voice call/2 way communication
•Support GPS+Wifi hotspots+LBS positioning
•SOS/Power button
•Reject unknown calls
•Real time Google Map location
•Phone book/Contacts
•Geo-fence/Safety Zone(Three non overlapped area can be setup)
•Voice remote monitoring /listen in
•History Route
•Alarm Clock
•Pedometer & Sleep monitoring
•Support 2G GSM network
•SMS Alerts
•Low battery alert/SOS alerts
•Remote shutdown
•Beesure GPS app and AWS cloud server platform lifetime free

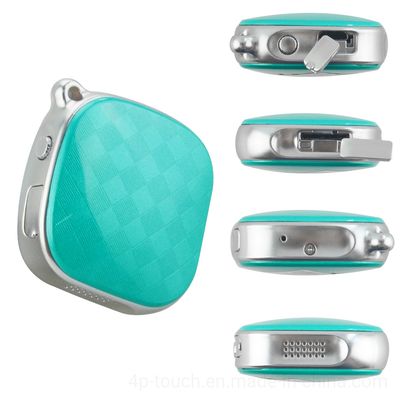

Mini GPS Tracker Key Pendant
1.2G/GSM network: 850/900/1800/1900MHz
2.Size: 46 DIA*12mm
3 Net Weight:40g
4.Button: One button(power button and SOS button)
5.GPS antenna: Built-in high sensitivity ceramic antenna
6.GSM antenna: FPC antenna
7.Rechargeable lithium battery: 500mAh class A rechargeable polymer battery
8.SIM card slot: Micro SIM Card slot
9.Chipset: MTK2503
10.GPS chip:MTK3327
11.software: Android 2.3 and above, iOS 5.0 and above
12.Colors:Green
13.Working time:2-3days
1. Structure | ||
| Structure | Item | Specification |
| ID style | Delicate and mini | |
| Product size | 38X38X12mm | |
| Colors | Green | |
| Button | One button(Power button/SOS button) | |
| Screen | No | |
| gps antenna | High sensitivity ceramic active antenna | |
| GSM antenna | FPC antenna | |
| Battery | 500mAh Class A Rechargeable Polymer Battery | |
| SIM card | micro SIM | |
| G-sensor | Support | |
| I/O port | USB charging | |
| 2. Hardware | ||
| Hardware | Chipset | MTK MT6261 |
| GPS chip | MTK3337 | |
| GPRS | Class12 | |
| GPS signal | L1,1575.42MHz C/A | |
| GPS channels | 22 channels | |
| GPS receiving sensitivity of chip level | Track:-165dBm,Catch:-148dBm | |
| GPS Positioning accuracy | less than 5 M | |
| LBS Positioning accuracy | 200-500M | |
| Minimum standby current | <0.5 mA | |
| The average standby current | <2.5 mA | |
| The average working current | About 55mA | |
| Working Temp. | -20~70ºC | |
| Operating humidity | 5% to 95% noncondensing | |
| Test and Certification | Can pass 3C and CE certification | |
| GPS antenna | Built-in high sensitivity FPC antenna | |
| GSM antenna | Built-in four frequency PIFA antenna | |
| Bluetooth | Bluetooth 3.0(Normal Closed) | |
| G-sensor | Support | |
| MIC | Support | |
| 3.Software | ||
| Software | OS | Support Android 2.3 and above ,IOS5.0 and above |
| Call function | Two-way communication/remote pickup | |
| Language | Chinese,English | |
| GSM+GPRS+GPS | GPS+WIFI hotspots+LBS multimode positioning | |
| Support AGPS | Cold start 26 seconds positioning | |
| Call Function | SOS call ,Voice monitoring ,Whitelist no disturbing function | |
| Power management | Ultra-low power consumption of power management,Smart Stay | |
| A key emergency | A key to SOS emergency function, automatic answering the call | |
| Intelligent fence | Outside the range set can be automatic alarm | |
| Historical route | Can check history of three months | |
| Wireless upgrading | Remote software upgrade, remote debugging maintenance, remote setting parameters | |
Note: Our server for oversea market is AWS server, all data with key encryption. We are ok to create the sub-account ID and password to manage all your devices in our server platform, you can change the password after you login the web-link. Also our server platform and phone app Beesure GPS ( for Android and IOS) are free of charge all the time, no any advertisement nor subscription in the app. Setracker or Setracker2 registered app login account is ok to use on Beesure GPS app directly.
If you have your own server platform and your own APP, we are OK to offer the server protocol for your configuration with your own server and your own APP software.
Our Service
1) OEM is warmly welcome! We offer free Laser engraved logo, OEM package and instruction manual. OEM MOQ is 1000pcs.
2) All our production conducted full testing in our production line prior packaging.
3) We not charge any extra cost for samples, cost are negotiation.
4) 24*7 online technical supports.
Warranty
1. We guarantee the warranty policy of all our products is one year after shipping, except the artificial damaged. We will fix the item or replace new ones once after receiving the return items.
2. We have after-sales server team and online technical support team , please kindly feel free contact us for any question or comments, you can easy reach us on our office landline or send us email or online whatsapp or wechat.
FAQ
*What's the MOQ and lead time?
1.We don't have strict MOQ, samples or trial order is available anytime. OEM is 1000pcs, we are negotiable with you.
2.Our sample lead time 2-3days, our production lead time is 10-15days, also based on the order quantity.
*How can I get a sample to check quality?
Please kindly forward us the sample order summary (include the exact item style number, preferred colors, sample quantity), then we will make the sample PI for your approval include the pre-paid freight charge through international courier door to door for your approval, after received your payment, we will send you the sample dispatch and advise you the tracking number .Our payment method is ok through PayPal , Western Union /Moneygram or Bank transaction.
*When can I get the prices?
We guarantee we send you complete e-mail offer within 12 hours after we receive your inquiries.
If any question or comments, please kindly feel free to contact us.
