Model NO.
TK116
Weight
45g
GSM Frequency
850/900/1800/1900MHz
Working Voltage
12VDC/24VDC/36VDC
Dimension
79.5(L)X38.5(W)X13.5(H)
GPS Positioning Accuracy
5-15 Meters
Lbs Positioning Accuracy
About 200m
Battery Capacity
200mAh
Optional Accessory
Relay, Mic, Sos
Working Current
30mAh
Standby Current
10mA
Working Temperature
-20c to 70c
Humidity
20%-80% Rh
Positioning Mode
GPS,Lbs
Transport Package
Standard Package
Specification
CE, CCC
Trademark
keelin
Origin
Shenzhen, China
HS Code
8526911000
Production Capacity
1, 200, 000PCS/Year
Screen Size:
No Screen
Use:
Automotive
Certification:
CE
Warranty:
1 Year
Model Number:
Tk116
Catalogue:
GPS Tracker
GPS Tracker with Safe Zone Notification for Vehicle Security
Wiring harness GPS tracker connect to 12V DC battery on your vehicle, trailer, equipment for continuous tracking, it makes you peace of mind. GPS tracker keep an eye on the car, vehicle, Get automatic Geo-fence alert when the vehicle is cross or out or in of pre-selected fence area. Protect the vehicle with the help of GPS tracking device.
Product Features
*Supports quad bands, i. E. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage: 6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor for vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle.
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)
Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port, used for temperature and oil detection
Can be extended: External lithium battery port, used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
GPS Tracker TK116 Specification
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Current | <10mA@12V |
| GPS positioning accuracy | 5-15m |
| GSM positioning accuracy | about 200m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 200mAh |
| Dimensions (mm) | 79.5(L)X38.5(W)X13.5(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 45 g |
| Main function table | |
| GPS | OK |
| AGPS | OK |
| Remote cut oil/engine | OK |
| Monitor/listen | OK |
| ACC | OK |
| OBD diagnostics | NO |
| Built-in battery | OK |
| Pedometer | NO |
| Power failure Alarm | OK |
| Low power Alarm | OK |
| SOS Alarm | OK |
| Speed Alarm | OK |
| Shift Alarm | OK |
| Collision Alarm | OK |
| Falling Alarm | OK |
| Vibration Alarm | OK |
| Geo-fencing Alarm | OK |

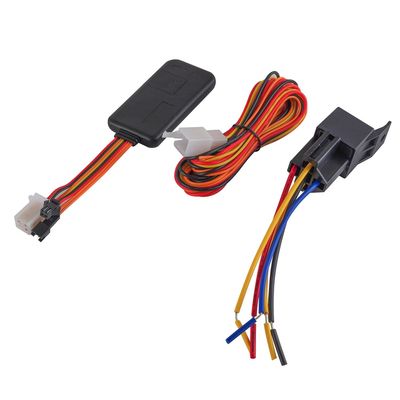

Car GPS tracker TK116 picture
