Model NO.
MT100-4G
Memory
4MB Data Logger
RFID Reader
Car Alarm & Driver Identify
Power Consumption
65mA Standby Current
Support Ota Function
Yes
Harsh Acceleration Alert/Braking Alert
Yes
Oil Leaking Alarm
Yes
Fuel Management
Yes
Remote Engine Cut
Yes
Transport Package
Neutral Color Box
Specification
80*58*22mm
Trademark
Topshine (supported OEM/ODM)
Origin
China
Production Capacity
10000 Sets/Month
Screen Size:
No Screen
Use:
Automotive, Truck/Car/Motorcycle
Certification:
RoHS, CE
Warranty:
2 Years
Software:
Free Tracking Platform
GSM Module:
Legal IMEI and CE Certificate

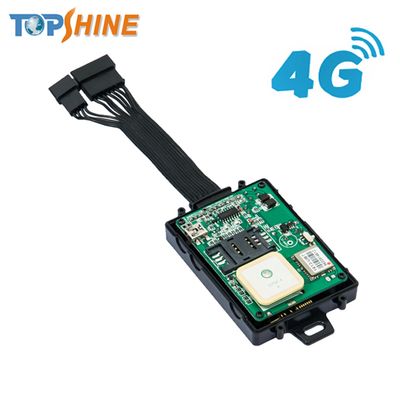

OBD Can bus connector GPS 4G tracker with diagnosis vehicle data
(*4G GPS tracker *2 years warranty *Free Tracking Platfrom *CE & RoHS certification *industrial grade module)
4G GPS tracker MT100 can work with OBDii connect to diagnosis vehicle data and generate one OBD report on the GPS tracking platform.
1. Product Overview
GPS tracker MT100 is a most advanced and high-cost effective GPS tracker, it can support fingerprint reader to achieve smart car alarm and driver ID identify. It is equipped with ARM9 high speedy microprocessor; using fully new and industrial grade modules. Its functions also very powerful, Bidirectional communication; 2 A/D connectors for multi fuel sensor monitoring; support unique active RFID for automatic anti-theft and driver identification; with harsh braking & acceleration alarm and accident alarm; and many useful functions and extensibility for fleet management and vehicle security purpose.
2. Applications
l Vehicle Real Time Tracking
l Vehicle Security/Anti-Hijack
l Fleet Management
3. Features & Functions
* 2G / 4G GPS tracker
* Smart car alarm and driver ID identify via fingerprint
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 650 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* I/O: 2 Inputs, 3 Outputs, 1 Analog Input, 1 RS232 port.
3.1 Multiple alerts
* Over speed alert
* Geo-fence alert
* Engine on alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Oil leaking/Refuel Alarm
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alert
3.2 Optional / customizable functions
* Customize output4 wire (optional)
* Customize input5 wire for detecting Air condition ON or OFF..etc, it is positive trigger (optional)
* Customize second Analog port (like detecting second fuel tank)(optional)
* Customize dual serial port that can support RFID reader and temperature sensor (or OBDII connector) at the same time(optional)
* Remote diagnostics OBDii connector via ECU
* Detecting the voltage of car battery (optional)
* Accident alarm (need crash sensor support) (optional)
* RS232 Port Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Fuel sensor detecting/monitoring (optional)
4. Specifications
| Items | Specifications |
| Dimension | 80*58*22mm |
| Weight | 92g |
| Input voltage | DC 9V~36V/1.5A |
| Back-up Battery | 650mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~75°C |
| Humidity | 5%~95% |
| Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 4M Byte |
| Sensor | Motion sensor |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -159dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 2 Input 3 Output 1 Analog Input 1 RS232 Port 1 USB Port |
5. Accessories
| Standard Accesorries | |
| Main unit | SOS button |
| Relay (12V/24V) | Wiring |
| Optional Accessories | |
| Cuttable fuel sensor | Ultrasonic fuel sensor |
| Passive RFID | Passive RFID tag |
| Active RFID | Active RFID tag |
| Ibutton reader | Siren |
| OBDii connector | Temperature sensor |
| Microphone | Speaker |
6. Online GPRS01 Tracking Platform
Topshine company provide free tracking platform (web based and mobile APP)
7. Our service
1) Any inquiries will be replied within 12 hours on work day.
2) Professional manuafacurer and wholesaler for 10 years.
3) OEM available: Customized logo or color box
We can help you to design and put it into production about your idea.
4) High quality, fashion design, reasonable&competitive price, fast lead time
5) After-sale service:
All products will have been strictly Quality checked in workshop before packing
All products will be well packed before shipping.
All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
6) Fast delivery: Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
7) Payment: T/T, Western Union and Paypal
