Model NO.
TK528-EF
Working Temperature
-20-85degree
Receiving Ways
56 Channels
Positioning Mode
Auto 2D/3D
Humidity
0 ~ 95%
Deep Sleep Mode Current
<4mA
Standby Current
8mA
Working Current
20mA
Backup Battery
Rechargeable 3.7V 350mAh Li-ion Battery
Transport Package
Car GPS Neutral Packing with White/Colorful Boxes
Specification
90*60*20(mm)
Trademark
TOPTEN
Origin
China
HS Code
8512301200
Production Capacity
50000PCS/Month
Screen Size:
No Screen
Use:
Automotive
Certification:
CE
Warranty:
1 Year
Working Voltage:
6-90V
Weight:
75g

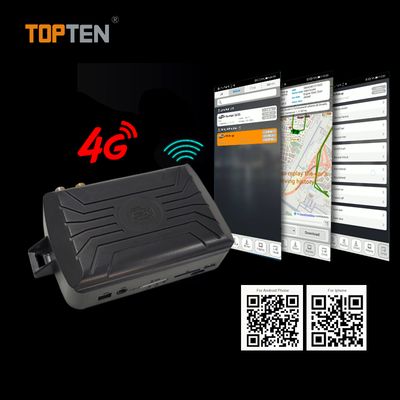

4G TK528 Vehicle Tracker For Fleet Management,Support Voice Monitoring And 2 Way Talking-EF
Features & Functions
- Track on command or by time interval via SMS/GPRS;
- Arm/disarm by SMS or phone call.
- Check the car's real physical address (such as city name, street name.);
- Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
- Check the location directly by the Google map's URL;
- Data logger to store 5520 waypoints.
- Online tracking by website;
- Over-speed alarm, Movement alarm, Engine on alarm, Vibration alarm;
- Turn over alarm(optional);
- Acceleration & Deceleration (Crash) Alarm(optional);
- OTA function: Upgrade firmware on air;
- Smart engine ON/OFF status detection without wiring to ACC;
- Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alarm immediately;
- Cut off engine to stop the car safely by SMS/GPRS;
- Routine optimization when vehicle turns a corner;
- A-GPS function to get GPS signal much faster;
- Support USB configure;
- Wide working voltage range, from 10V-90VDC, suitable for motorcycle, car or big truck.
- Reliable design of framework with hardware watchdog.
- Extreme power save working mode, power consumption could be less than 4mA.
- Detection on internal battery's volume & vehicle battery's voltage.
| Working voltage: | +6.0 ~+90VDC/2.0A | |
| Backup battery: | Rechargeable 3.7V 350mAh Li-ion battery | |
| Dimension (main unit): | 90*60*20(mm) | |
| Weight (main unit): | 75g | |
| GSM frequency: | 2G: 850MHz/900MHz/1800MHz/1900MHz (Quad-band) 4G: LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28/B66 | |
| GPS chipset: | Embedded | |
| GPS sensibility | -162dBm | |
| GPS receiving channel | 56 channels | |
| Working frequencies | 1575.42Mhz C/A(GPS) | |
| Positioning accuracy | ≤10m (wide-open area) | |
| Speed accuracy | ≤0.1M/S (wide-open area) | |
| Positioning mode | Auto 2D/3D | |
| Hot start | 1 sec., average | |
| Warm start | 2 sec., average | |
| Cold start | 40 sec., average | |
| Working temperature: | -20 ~ 85ºC | |
| Humidity: | 0 ~ 95% | |
| Interface | 4 inputs, 4 outputs, 2 A/D ports, MIC & Speaker port, camera port, RS232 port, OBD port, Speed limiter |
Realtime GPS Tracking Platform for Car GPS Tracker
Computer website and Mobile App
Computer Page
Mobile Real-time Tracking Application (Name:GPS-Go,but Pls download it from the code as Above.)
Mobile SMS Application( App Name:GPS Remote)
