Bus Truck Car Vehicle GPS Tracker with Internal 4MB Data Logger for GSM/GPRS Network Blind Area, GPS Tracker, GPS Tracking

Product detail

Model NO.

VT310N

Analog

Opened Protocol

GPS Module

Ublox 7

Support Fuel Sensor

USB Port

Two Way Communication

Customizable

Input Port

Backup Battery (mAh)

Output Port

RS232

Microphone Port

Customizable

Voltage

9 ~ 36

Transport Package

Neutral Color Box

Specification

23*16*6cm

Trademark

Neutral

Origin

China

HS Code

8517691090

Production Capacity

10, 000/Month

Screen Size:

No Screen

Automotive

Certification:

RoHS, FCC, CE, CE/RoHS/SGS

Warranty:

2 Years

Free Tracking Software:

Is_Customized:

Bus Truck Car vehicle GPS tracker with Internal 4MB Data logger for GSM/GPRS network blind area
(2 years warranty, Free Tracking Platfrom (web base & Android),CE & RoHS & SGS certification)

Products Overview

VT310N is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, VT310N has good sensitivity and stable performance. Especially, VT310N is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customer or manage their fleet.

Bus Truck Car Vehicle GPS Tracker with Internal 4MB Data Logger for GSM/GPRS Network Blind Area

Application

* For vehicle tracking and security
* Intelligent fleet management

Specification

Technical Parameters:
Power Supply	+9V - +35V / 1.5A
Backup Battery	650mAh
Dimension	1056225cm
Weight	95g
Operating temperature	-20° to 65° C
Humidity	5% to 95% Non-condensing
GPS Module	latest GPS SIRF-Star III chipset
GPS Sensitivity	-158Db
GPS Frequency	L1, 1575.42 MHz
C/A Code	1.023 MHz chip rate
Channels	20 channel all-in-view tracking
Position Accuracy	10 meters, 2D RMS
Velocity Accuracy	0.1 m/s
Time Accuracy	1 us synchronized to GPS time
Default datum	WGS-84
Reacquisition	0.1 sec., average
Hot start	1 sec., average
Warm start	38 sec., average
Cold start	42 sec., average
Altitude Limit	18,000 meters (60,000 feet) max.
Velocity Limit	515 meters/second (1000 knots) max.
LED	2 LED lights to show GPS/GSM working status.
Flash Memory	4MB

Feature

Multiple Geo-Fence Setting,Movement Alert,overspeed Alert,tow alert,main power cut off alert etc	Fuel stolen alarm,monitor petrol level
GPS tracker + RFID car alarm	cut off engine remotely
GSM jamming detection, anti jamming	With 650mAh inbuilt rechargeable battery
Ublox7 GPS industrial high sensitive module	Two way tracking, GPS/intelligent GSM positioning
Active RFID / Passive RFID / Smart phone RFID for anti-theft and driver(student) ID identification function (Optional)	Powerful and multifunctional tracker for comprehensive Fleet management
Inbuilt 4MB data logger for saving position when in GSM/GPRS blind area	Get real time vehicle position address street name /Google map link by SMS

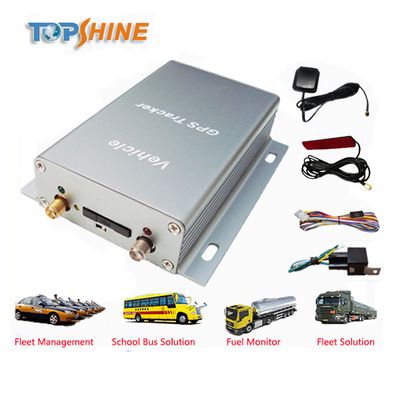

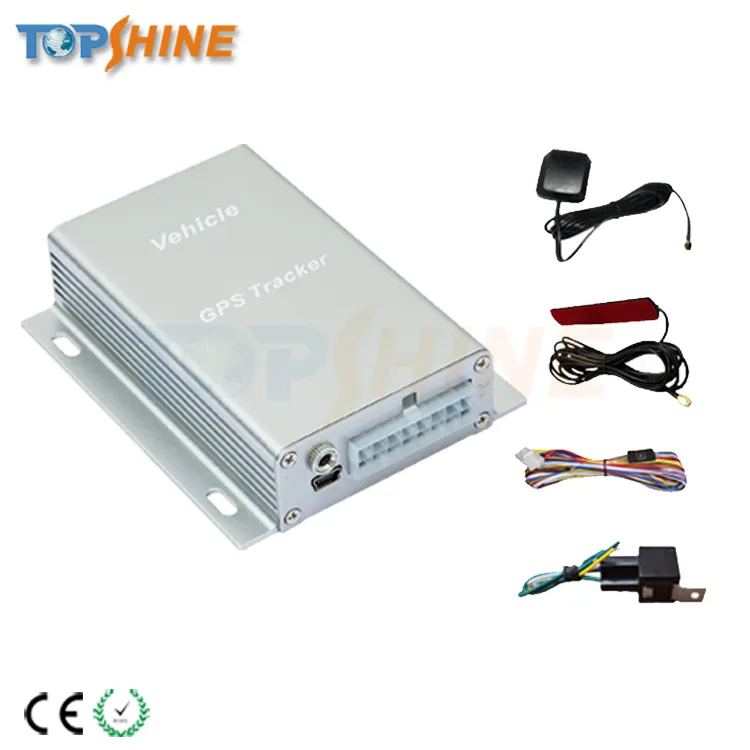

Package & Accessories

VT310N unit: 1 unit
Wire : 1 piece
Relay: 1 piece
SOS button :1 piece
GPS antenna :1 piece
GSM antenna : 1 piece

Optional accessory :

* Fuel sensor
* Temperature sensor
* RFID kit
* Crash sensor
* Smart phone reader
* Door sensor
* Alcohol Sensor
* Speed Limiter

We provide you free GPS tracking platform ( web base & Android APP )
Welcome to login platform demo to test the function

Web Base : findtextile.com/store/gztopshine
Mobile phone link : findtextile.com/store/gztopshine/M
User name: officetest1
Password: 123

Web base gps tracking platform

Android APP GPS tracking platform

Our advantage

* Provide 2 free Tracking Platfrom (web base base & Android APP) .
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.

Payment & Shipment:

Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery
