Model NO.
GT48-TN
OBD Interface
16pins
Arm/Disarm
Yes
Anti-Tamper
Yes
RFID for Driver
2.4G
Internal Memory
4MB
Voice Monitoring
Support
Application
Car/Truck/Fleet Management
Transport Package
White box
Specification
57*83*20 (mm)
Trademark
TOPTEN
Origin
China
HS Code
85311010
Production Capacity
5, 000pcs/month
Screen Size:
No Screen
Use:
Automotive
Certification:
FCC, CE
Warranty:
1 Year
Frequency:
Quadband, 2g/3G/4G
Tracking:
GPS+GSM+GPRS

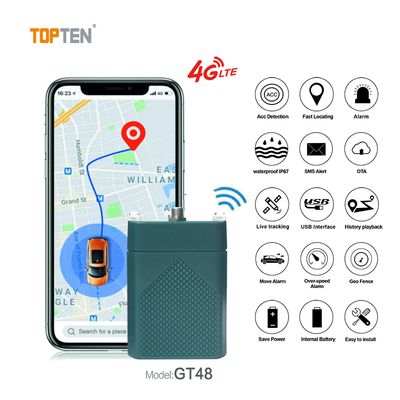

Function with the GT48 gps tracker:
1. Track on command or by time interval via SMS/GPRS;
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name.);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Data logger to store 5520 waypoints.
7. Online tracking by website;
8. Odometer function;
9. Over-speed alarm, Movement alarm, Engine on alarm, Vibration alarm;
10. Turn over alarm;
11. Acceleration & Deceleration (Crash) Alarm;
12. OTA function: Upgrade firmware remotely on air;
13. Smart engine ON/OFF status detection without wiring to ACC;
14. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alarm immediately;
15. Cut off engine to stop the car safely by SMS/GPRS;
16. Routine optimization when vehicle turns a corner;
17. A-GPS function to get GPS signal much faster;
18. Support USB configure;
19. Wide working voltage range, from 10V-90VDC, suitable for motorcycle, car or big truck.
20. Reliable design of framework with hardware watchdog.
21. Detection on internal battery's volume & vehicle battery's voltage.
22. Support active RFID Driver ID identification (optional)
23. Support wireless immobilizer (optional)
24. IP67 level waterproof.
Specifications:
GPS tracking platform:
1. Track on command or by time interval via SMS/GPRS;
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address (such as city name, street name.);
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Data logger to store 5520 waypoints.
7. Online tracking by website;
8. Odometer function;
9. Over-speed alarm, Movement alarm, Engine on alarm, Vibration alarm;
10. Turn over alarm;
11. Acceleration & Deceleration (Crash) Alarm;
12. OTA function: Upgrade firmware remotely on air;
13. Smart engine ON/OFF status detection without wiring to ACC;
14. Built-in rechargeable backup battery; when the car battery is cut off or low enough, the system will send out power failure alarm immediately;
15. Cut off engine to stop the car safely by SMS/GPRS;
16. Routine optimization when vehicle turns a corner;
17. A-GPS function to get GPS signal much faster;
18. Support USB configure;
19. Wide working voltage range, from 10V-90VDC, suitable for motorcycle, car or big truck.
20. Reliable design of framework with hardware watchdog.
21. Detection on internal battery's volume & vehicle battery's voltage.
22. Support active RFID Driver ID identification (optional)
23. Support wireless immobilizer (optional)
24. IP67 level waterproof.
Specifications:
Size of the main unit: | 57*83*20 (mm) |
| Weight of the main unit | 83G |
| Inside Backup battery: | Rechargeable 3.7V 350mAh Li-ion battery |
| Working temperature: | -20~85 centigrade |
| Humidity: | 0~95% |
| GSM frequencies: | Quad-band: 2G: 850MHz/900MHz/1800MHz/1900MHz 4G: LTE-FDD:B1/B3/B5/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 |
| Working frequencies: | 1575.42MHz C/A(GPS) |
| Receiving sensibility: | -162dBm |
| Positioning accuracy: | ≤10m(wide-open area) |
| Speed accuracy: | ≤0.2M/S(wide-open area) |
| Positioning mode | Auto 2D/3D |
| Working voltage: | +10~+90VDC/1.5A |
| GPS Position time: | Cold start: 40 seconds Warm start: 20 seconds |
GPS tracking platform:
