Model NO.
TK116
Lbs Positioning Accuracy
200m
Working Current
<30mA@12V
Standby Current
<10mA@12V
Transport Package
Standard
Specification
CE, CCC
Trademark
Keelin
Origin
Shenzhen
HS Code
8526911000
Production Capacity
1, 200, 000PCS/Year
Color:
Black
Weight:
45g
GSM Frequency:
850/900/1800/1900MHz
Working Voltage:
12VDC/24VDC/48VDC/60VDC
Optional Accessory:
Relay, Mic, Sos
GPS Positioning Accuracy:
5-15m
GPS Tracker TK116 Product Features
*Supports quad bands,i.e. 850/900/1800/1900MHz, worldwide used.
*Wide Input Voltage:6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)
GPS Tracker TK116 Base Specifications

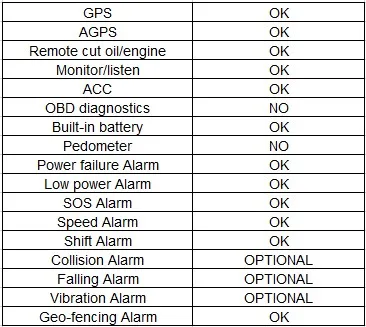

GPS Tracker TK116 Main Function Table
Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port , used for temperature and oil detection
Can be extended: External lithium battery port ,used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Accessories (Optional)
Relay/ Microphone/SOS
Our solutions
Shenzhen Eelink Communication Technology Co. Ltd aims at win- win cooperation and provides complete tracking solutions according to different clients' requirements.
1.Brand Agent of Keelin, use Keelin platform and App.
*Wide Input Voltage:6-36V DC.
*GPS + GSM (LBS) Tracking
*GPS precise positioning with A-GPS and feedback position via GPRS at setting times
*Tracks real-time and playback
*Web browser platform, Smart phone app platform and SMS query.
*Built-in battery, Power disconnect alarm & Low battery alarm.
*Supports multiple alarm, acceleration sensor can be added (B models, optional component), so as increase vibration, collision and falling alarm.
*Supports ACC status checking and vehicle status notifying.
*Use relay to remotely control the vehicle..
*Use SOS button for SOS call.
*Uses external microphone to monitor remotely.
*Multiple protocol support, OTA upgrade program.
*Mini size, easy to hide and install
Alarm Type
Vibration Alarm(Optional)
Collision / falling Alarm(Optional)
Speed Alarm
Geo-fence Alarm
Power disconnect Alarm
SOS Alarm(need SOS Cable)
GPS Tracker TK116 Base Specifications
| Voltage | 12VDC/24VDC/36VDC |
| Work current | <30mA@12V |
| Standby Curren | <10mA@12V |
| GPS positioning accuracy | 15m |
| GSM positioning accuracy | 100m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 200mAh |
| Dimensions (mm) | 79.5(L)X38.5(W)X10.5(H) |
| Operating temperature | -20ºC~70ºC |
| Operating humidity | 20%~80%RH |
| Net Weight | 45 g |
GPS Tracker TK116 Main Function Table
Function Extension
Default interface: Microphone input port for remote monitoring
Can be extended: ADC input port , used for temperature and oil detection
Can be extended: External lithium battery port ,used for long battery life
Can be extended: UART expansion port (TTL level), RS232 serial port expansion application
Platform
You can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the cars' track, listen and cut off oil of car on the platform server.
Accessories (Optional)
Relay/ Microphone/SOS
Our solutions
Shenzhen Eelink Communication Technology Co. Ltd aims at win- win cooperation and provides complete tracking solutions according to different clients' requirements.
1.Brand Agent of Keelin, use Keelin platform and App.
2.OEM Cooperation. we offer our products and neutral platform to customers,or we only offer products and provide protocol for customer's platform research.
3.Research and customization. We could cooperate with customers based on their different requirement in terms of large production.
4.Technical Solutions for different industries.
