Model NO.

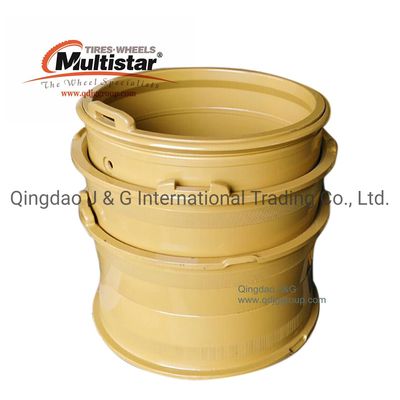

OTR Wheel Rim 25-13.00/2.0
Wheel Hub Brand
Multistar
Fitted Tyre
16.00r25
Transport Package
in Pallets
Specification
25-13.00/2.0
Trademark
MULTISTAR
Origin
China
HS Code
87087090
Production Capacity
2000 PCS/Year
Material:
Steel
Type:
Rim
Wheel Hub Diameter:
25"
Finishing:
Paint
Wheel Accessories:
Lock Ring, Side Ring, Beat Seat Band, Drive Key
Certification:
ISO, As4457.1-2207
Steel Wheel Rim (Dw27X32, W21X32, Dw20X26, Dw25X26) for Tractor/Harvester / Grain Cart / compactor
For tyre: 23.1-26,32.5L-32 800/65R32
Pack: in pallets
Design: Refer to ETRTO/TRA/JATMA
10/335/281
Quarantee: 2-3 years
Paint electro coat and rust protection cost color silver or customer's request.
1. Steel wheels within diameters from 12" up to 54", and width from 4.25" up to 36"
2. Wheels for speeds up to 65km/h
3. The high quality of manufactured wheel is comply to TRA, TROTA standard
4. Wheel rims for tractors, trailers, harvesters etc applications
Specification
| Rim Size | Fitted tyre | No. | Dia. | PC Dia. | Center Hole Dia. | Offset/ET. |
| DW20x26 | 23.1-26 | 8 | 27 | 275 | 221 | -58 |
| DW20x26 | 23.1-26 | 8 | 27 | 275 | 221 | -98 |
| DW20x26 | 23.1-26 | 10 | 26 | 335 | 281 | 47.5 |
| DW20x26 | 23.1-26 | 10 | 27 | 335 | 282 | 80 |
| DW27x32 | 30.5L-32 | 10 | 27 | 335 | 281 | 0 |
| DW27x32 | 30.5L-32 | 10 | 27 | 335 | 281 | 74 |
| DW27x32 | 30.5L-32 | 10 | 27 | 335 | 281 | 98 |
Steel Wheel Sizes for Agricultural Application:
| Dia | Wheel Size | Tire Size | Dia | Wheel Size | Tire Size |
| 12'' | 5J*12 | 7.00*12 6.00-12 | 26" | W12*26 | 13.6-26 14.9-26 |
| 7.00*12 | 10.0/75-12 10.0/8-12 23/8.50*12 | W13*26 | 14.9-26 | ||
| 8.50*12 | 11.0/65-12 23/9.50*12 | W15*26 | 16.9-26 | ||
| 10.50*12 | 26*12.0-12 | W16*26 | 18.4-26 | ||
| 13'' | 4J*13 | 5.50-13 165RS13 | DW20*26 | 23.1-26 24L-26 | |
| 4.5J*13 | 5.50-13 | DW25*26 | 30.5L-26 28L-26 | ||
| 14'' | 4.5J*14 | 6.5-14 | 26.5" | 16.00*26.5 | 500/60-26.5 |
| 6.00*14 | 9.5L*14 | 20.00*26.5 | 600/55-26.5 | ||
| 7.00*14 | 9.5L*14 | 24.00*26.5 | 700/50-26.5 | ||
| 15" | 4J*15 | 5.00-15 | 28.00*26.5 | 800/45-26.5 | |
| 5J*15 | 6.5/80-15 | 28" | W8*28 | 9.50-28 | |
| 6LB*15 | 7.5L-15 | W10*28 | 11.2-28 | ||
| 7J*15 | 8.0/75-15 | W11*28 | 12.4-28 | ||
| 8LB*15 | 27*10.5-15 11L-15 | W12*28 | 13.6-28 | ||
| 9LB*15 | 11L-15 | W13*28 | 14.9-28 | ||
| 10LB*15 | 12.5L-15 29*12.5-5 31*15.5-15 | W14L*28 | 16.9-28 | ||
| 13LB*15 | 33*15.5-15 31*15.5-15 | DW15L*28 | 16.9-28 | ||
| 15.3" | 15.3*9.00 | 10.0/75-15.3 11.5/80-15.3 12.5/80-5.3 | W16*28 | 18.4-28 | |
| 15.5" | 15.5*13.00 | 400/60-15.5 | DW18*28 | 21L-28 | |
| 16" | 4.5E*16 | 6.00-16,6.50-16 | DW20*28 | 600/50-28 | |
| 5.50E*16 | 7.50-16 | 30" | W12*30 | 13.6-30 | |
| 6.50*16 | 8.25-16 | W14L*30 | 16.6-30 | ||
| W7*16 | 210/85R16 | DW14*30 | 16.9-30 | ||
| W8*16 | 10.0/75-16 19.0/65-16 10.00-16 | W15L*30 | 18.4-30 | ||
| W9*16 | 285/70R16 11.00-16 | DW16L*30 | 18.4-30 23.1*30 | ||
| 9.00*16 | 11L-16 | DW20*30 | 23.1*30 | ||
| 11.00*16 | 14.0/65-16 | 30.5" | 20.00*30.5 | 600/50-30.5 800/60-30.5 | |
| 16.1" | 11.0*16.1 | 14L-16.1 | 24.00*30.5 | 650/80-30.5 700/50-30.5 750/60-30.5 | |
| 14.00*16.1 | 16.5-16.1 | 28.00*30.5 | 800/45-30.5 800/55-30.5 | ||
| 850/50-30.5 | |||||
| 16.00*16.1 | 21.5-16.1 | 32" | W7*32 | 8.30-32 | |
| 16.5" | 8.25*16.5 | 10-16.5 | W10*32 | 12.4-32 | |
| 9.75*16.5 | 12-16.5 | W12*32 | 13.6-32 | ||
| 12.00*16.5 | 33/15.5-16.5 | DW20*32 | 23.1-32 | ||
| 17" | 17*13.00 | 15.0/55-17 | DW21*32 | 24.5R32 680/70R32 680/75R32 | |
| 17*16.00 | 19.0/45-17 500/50-17 | DW27*32 | 30.5L-32 800/65R32 | ||
| 17.5" | 10.75*17.5 | 14-17.5 | 34" | DW10*34 | 12.4-34 |
| 11.75*17.5 | 14-17.5 | W14L*34 | 16.9-34 | ||
| 18" | 9.00*18 | 10.5/80-18 12.5/80-18 | W15L*34 | 18.4-34 | |
| W9*18 | 10.5/80-18 12.5/80-18 | DW15*34 | 16.9-34 | ||
| 11.00*18 | 13.00/65-18 | DW16*34 | 18.4-34 | ||
| 13.00*18 | 15.0/70-18 15.5/60-18 405/70-18 | DW20*34 | 23.1-34 | ||
| 19" | 3.00*19 | 4.50*19 | 36" | W8*36 | 9.50-36 |
| 19.5" | 14*19.5 | 15.0*19.5 | W10*36 | 11.2-36 | |
| 20" | 5.50*20 | 7.50*20 | W11*36 | 14.9-36 | |
| W7*20 | 8.3-20 | W12*36 | 14.9-36 | ||
| W8*20 | 9.50-20 | 38" | W10*38 | 11.5*38 | |
| 20*8.00 | 9.5-20 10.00-20 | W11*38 | 13.6-38 14.9-38 | ||
| W9*20 | 11.2-20 | W12*38 | 13.6-38 14.9-38 | ||
| 10.00*20 | 12.00-20 | W15L*38 | 16.9-38 540/65*38 | ||
| W11*20 | 12.4*20 | W16*38 | 18.4-38 | ||
| 13.00*20.00 | 405/70-20 425/65R20 425/75R20 | DW16*38 | 18.4-38 | ||
| 14.00*20.00 | 38/18-20 | DW20*38 | 650/65-38 | ||
| 20.5" | 14*20.5 | 465/65R20.5 | DW23*38 | 710/70R38 | |
| 21" | 18.00*21 3pcs | 24R21 | W8*42 | 8.30-42 | |
| 22.5" | 11.75*22.5 | 15R22.5 365/70R22.5 385/65R2.5 | 42" | W10*42 | 11.2-42 |
| 13.00*22.5 | 16.5R22.5 425/65-22.5 415/45R22.5 | DW16*42 | 18.4-42 | ||
| 14.00*22.5 | 18R22.5 465/65R22.5 | DW18*42 | 20.8-42 | ||
| 16.00*22.5 | 500/60-22.5 550/60-22.5 550/45-22.5 | W20*42 | 620/70*42 | ||
| 20.00*22.5 | 600/50-22.5 650/50-22.5 600/55-22.5 | DW23*42 | 710/70*42 | ||
| 24.00*22.5 | 700/50-22.5 | DW27*42 | 900/60*42 | ||
| 24" | W7*24 | 8.3-24 | 44" | W8*44 | 10.00*44 |
| W8*24 | 9.50-24 | W10*44 | 12.4*44 | ||
| W10*24 | 11.2-24 | 46" | DW10*46 | 11.2-46 | |
| W12*24 | 13.6-24 14.9-24 | DW12*46 | 12.4-46 | ||
| W14L*24 | 16.9-24 | DW13*46 | 14.9-46 | ||
| DW15L*24 | 16.9-24 | DW16*46 | 18.4-46 520/85-46 | ||
| DW16L*24 | 19.5L-24 18.4-24 | 48" | W8*48 | 9.50-48 | |
| DW18L*24 | 20.5-24 | W10*48 | 11.2-48 | ||
| 24.5" | 24.5*8.25 | 11R24.5 | W12*48 | 16.3-48 | |
| 24.5*11.75 | 385/55R24.5 | 50" | W10*50 | 12.4-50 | |
| 24.5*13.00 | 16.5R24.5 425/65R24.5 | W16*50 | 18.4-50 | ||
| 25" | 36.00*25 | 66/43-25 | 52" | W10*52 | 12.4-52 |
Rim components:
