Model NO.
G4FJ
Fuel
Gasoline
Cold Style
Water-cooled
Stroke
4 Stroke
Power
Hydraulic
Start
Electric Start
Transport Package
Neutral
Specification
99.8kg
Trademark
CG autoparts
Origin
China
Production Capacity
300
After-sales Service:
Standard
Warranty:
Standard
Certification:
TS16949
Discharge Standard:
Euro V
Body Material:
Aluminium
Cylinder:
Single Cylinder

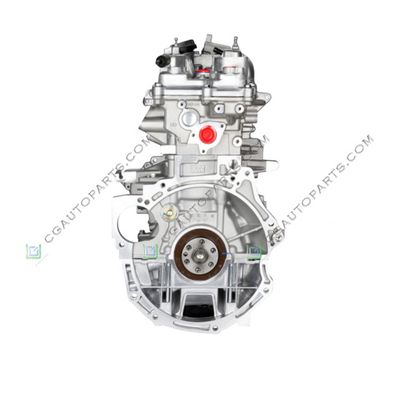

The Hyundai G4FJ 1.6-liter turbo engine or 1.6 T-GDI has been produced in Korea since 2011 and is installed on such popular models as Sportage, Tucson, Ceed, Seltos, Kona, Veloster and Soul. This power unit is distinguished by the presence of a direct fuel injection system and turbocharging.
| Production years | since 2011 |
| Displacement, cc | 1591 |
| Fuel system | direct injection |
| Power output, hp | 177 - 204 |
| Torque output, Nm | 265 |
| Cylinder block | aluminum R4 |
| Block head | aluminum 16v |
| Cylinder bore, mm | 77 |
| Piston stroke, mm | 85.4 |
| Compression ratio | 9.5 |
| Hydraulic lifters | no |
| Timing drive | chain |
| Phase regulator | Dual CVVT |
| Turbocharging | yes |
| Recommended engine oil | 0W-30, 5W-30 |
| Engine oil capacity, liter | 5.1 |
| Fuel type | 95 |
| Euro standards | EURO 5/6 |
| Fuel consumption, L/100 km (for Kia Sportage 2017) - city - highway - combined | 9.2 6.5 7.5 |
| Engine lifespan, km | ~250 000 |
| Weight, kg | 106.3 |
The engine was installed on:
- Hyundai i30 2 (GD) in 2015 - 2017; i30 3 (PD) since 2017;
- Hyundai Elantra 6 (AD) in 2017 - 2020;
- Hyundai Kona 1 (OS) in 2017 - 2020;
- Hyundai Sonata 7 (LF) in 2014 - 2019;
- Hyundai Tucson 3 (TL) since 2015;
- Hyundai Veloster 1 (FS) in 2012 - 2018; Veloster 2 (JS) since 2018;
- Kia Ceed 2 (JD) in 2013 - 2018; Ceed 3 (CD) since 2018;
- Kia ProCeed 2 (JD) in 2013 - 2018; ProCeed 3 (CD) since 2019;
- Kia Cerato 3 (YD) in 2013 - 2018; Cerato 4 (BD) since 2018;
- Kia Optima 4 (JF) in 2018 - 2019;
- Kia Seltos 1 (SP2) since 2019;
- Kia Soul 2 (PS) in 2016 - 2019; Soul 3 (SK3) since 2019;
- Kia Sportage 4 (QL) since 2015;
- Kia XCeed 1 (CD) since 2020.
