Model NO.
5WK97307
Type
Exhaust Gas Sensor
Body Material
Steel
Discharge Standard
Euro V
Certification
TS16949, CE
Component
Catalytic Converter
Main Market
North America
Interchange Number
2965584300
Supply Voltage
24V
Packaging
Neutral Package/Customizable
Transport Package
Individual Packaging
Specification
0.5KGS
Trademark
TB autoparts
Origin
Wuhan
HS Code
9026801000
Production Capacity
5000 PCS/Months
Warranty:
12 Months
Car Make:
Cummin
Car Model:
2872948; 4326873; 5295473

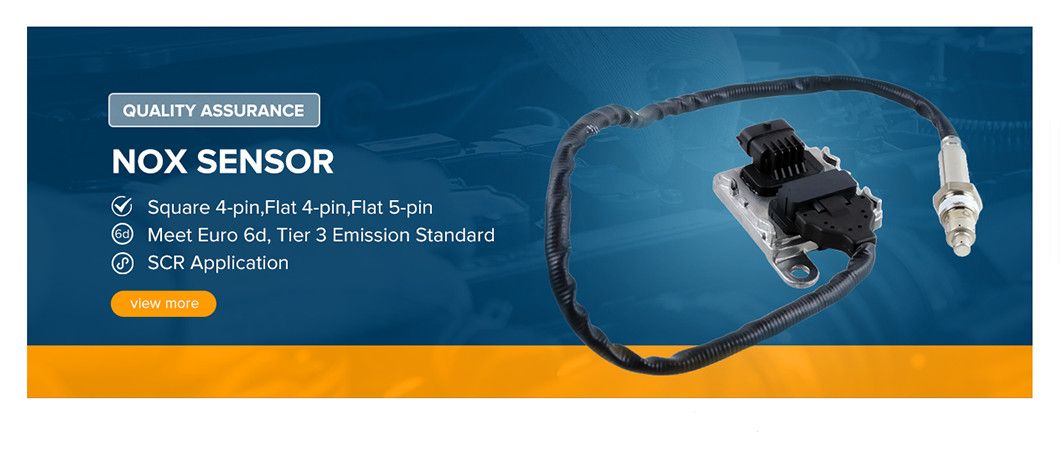

The NOx sensor is an electrochemical sensor used to measure the concentration of nitrogen oxides (NOx) and oxygen (O2) in the gas; it sends the detection data through CAN and accepts the instructions of the upper system to realize the communication of the nitrogen and oxygen sensor; the nitrogen and oxygen sensor is composed of The main probe part is composed of a circuit system, which senses the exhaust gas environment and converts it into numerical information.
The NOx sensor transmits the NOx value in the exhaust gas to the ECU in real time after normal operation. The ECU does not judge whether the exhaust gas is qualified by monitoring the real-time NOx value, but detects whether the NOx value in the exhaust gas exceeds the standard through a set of nitrogen oxide monitoring programs.
| Technical Information | |
| Test limit | Nox content 0-3000 ppm O2 density 0-21% |
| Nox detect accuracy | 0~100ppm:±10ppm 100ppm~500ppm:±10% 500ppm~1500ppm:±15% 1500ppm~3000ppm:±15% |
| O2 density accuracy | 0-5%±0.2% 5-21% ± 4% |
| Reaction speed | τ(33%~66%)NOx<1400ms τ(66%~33%)NOx<1400ms |
| Initiation time | 120 second |
| Working temperature | -40ºC-800ºC |
Hubei Tianbang Automotive Electronic Technology Co., Ltd. was established in 2006, specializing in the research and development and manufacturing of automotive sensors. Tianbang has sophisticated production and testing equipment, and has passed the international quality management system certification TATF16949. The products mainly include oxygen sensors, exhaust gas temperature sensors, nitrogen and oxygen sensors, fuel injectors for motorcycles, automobiles and trucks of many well-known brands in the world. After years of unremitting precipitation and efforts, Tianbang has established friendly cooperative relations with premium automobile manufacturers and dealers all over the world with high-quality products and professional services, including Europe, North America, South America, Middle East, etc..
1. Industry certificate: IATF16949, CE;
2. Complete products, 99% of the world's models of oxygen sensors are produced, and there are more than 2,000 product models;
3. Master the core and check the quality from the source. The core components of the oxygen sensor, the zirconium tube and the chip core, are independently produced by our company, and the raw materials (zirconium powder, platinum paste, etc.) are imported raw materials, and adhere to the principle of quality first;
4. The inspection is fine, all products need to go through 100% inspection, the inspection items include: air tightness test, signal sensitivity test, engine simulation loading test, pressure test, salt spray test, etc., to ensure that each one is a high-quality product;
5. Senior technical team, we have Professor Xie Guangyuan Xie, a professor of materials science from Huazhong University of Science and Technology as the company's technical guide, and have long-term technical exchanges and cooperation with the automotive oxygen sensor research team of Wuhan University of Science and Technology. This industry is going more stable and farther;
6. A complete quality control system, we have high-end equipment for the production and manufacture of oxygen sensor products, and the level of automation equipment is the first in China;
7. The delivery time is short. Our current output of oxygen sensors is 60,000 pieces per month, which can meet the customer's order needs and provide timely and efficient supply capacity;
8. High-quality after-sales service, we have a professional technical and sales team to answer customers as soon as possible; with our more than ten years of production and sales experience, we have accumulated demand information for oxygen sensor products in various markets and possible For difficult problems, we can provide customers with solutions in a timely and accurate manner to maximize the interests of customers.
2. Complete products, 99% of the world's models of oxygen sensors are produced, and there are more than 2,000 product models;
3. Master the core and check the quality from the source. The core components of the oxygen sensor, the zirconium tube and the chip core, are independently produced by our company, and the raw materials (zirconium powder, platinum paste, etc.) are imported raw materials, and adhere to the principle of quality first;
4. The inspection is fine, all products need to go through 100% inspection, the inspection items include: air tightness test, signal sensitivity test, engine simulation loading test, pressure test, salt spray test, etc., to ensure that each one is a high-quality product;
5. Senior technical team, we have Professor Xie Guangyuan Xie, a professor of materials science from Huazhong University of Science and Technology as the company's technical guide, and have long-term technical exchanges and cooperation with the automotive oxygen sensor research team of Wuhan University of Science and Technology. This industry is going more stable and farther;
6. A complete quality control system, we have high-end equipment for the production and manufacture of oxygen sensor products, and the level of automation equipment is the first in China;
7. The delivery time is short. Our current output of oxygen sensors is 60,000 pieces per month, which can meet the customer's order needs and provide timely and efficient supply capacity;
8. High-quality after-sales service, we have a professional technical and sales team to answer customers as soon as possible; with our more than ten years of production and sales experience, we have accumulated demand information for oxygen sensor products in various markets and possible For difficult problems, we can provide customers with solutions in a timely and accurate manner to maximize the interests of customers.
That is, within 12 months from the date of receipt, except for man-made damage, if there is a problem with the use of the product,We try our best to help you to resolve problems in the shortest time.Pls send us pictures or videos of defective products, displaying where the problem is , our experienced engineers would help you to resolve. If failed to resolve the problems, It is necessary to return a part of the defects parts, our engineers research and analyze .The replacement would be sent with your next order or refund if you required.
Q: Do you have the MOQ request?
A: The MOQ is 5pcs for each model.
Q: can you put NTK on the senosors?
A: Sorry , we can't do it. It is infringement.
Q: Kindly let know about the return policy of defected goods?
A: That is, within 12 months from the date of receipt, except for man-made damage, if there is a problem with the use of the product,We try our best to help you to resolve problems in the shortest time.Pls send us pictures or videos of defective products, displaying where the problem is , our experienced engineers would help you to resolve. If failed to resolve the problems, It is necessary to return a part of the defects parts, our engineers research and analyze .The replacement would be sent with your next order or refund if you required.
where is the point about warranty?
The warranty time is 12 months
Q: What port do you load from?
A: As your request,main from Shenzhen, Shanghai ,Ningbo.
