CENTER ELECTRODE CORE MATERIAL NIY + CU
CENTER ELECTRODE MATERIAL NIY
CONNECTION TYPE DETACHABLE DIN/SAE NUT
DESIGNATION SPARK PLUG
DIAMETER_CENTER ELECTRODE 2,7 MM
ELECTRODE GAP 1,10 MM
GROUND ELECTRODE MATERIAL CRNI
INTERFER. SUPP./BURN-OFF RES. 6 KOHM
NUMBER_GROUND ELECTRODES 1
PART NUMBER 0242235707
SEALING SEAT FLAT
SPARK POSITION 3 MM
THREAD DIAMETER M 14 MM
THREAD LENGTH 19,0 MM
THREAD PITCH 1,25 MM
TIGHTENING ANGLE 90 °
TIGHTENING TORQUE 28 NM

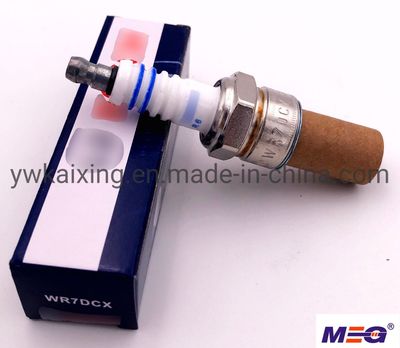

TYPE FORMULA WR 7 DCX+
WIDTH ACROSS FLATS 20,8 MM
- BOSCH WR7DCX:
- Accel 0494
- Bosch WR7DCX+
- Brisk L15YC
- Brisk LR15YC-1
- Champion 8415
- Champion OE047
- Champion OE048
- Champion RN9YC4
- Champion RN9YCC4
- Champion RN9YX4
- Denso 3049
- Denso 5306
- Denso IW20
- Denso VW20
- Denso W20EPR-U11
- Denso W20EPRU11
- Denso W20TT
- Eyquem RC52LS5
- Honda 98079-56155
- Mitsubishi MS851408
- Torch F6RTC-11
- Toyota 90098-70033
- Unipart GSP2019
- Valeo 246914
CIXI MEG AUTO PARTS CO.,LTD. is a specialized manufacturer of spark plugs, using the world advanced technology of Isostatic Pressing Ceramic Insulator, with strong technical team, advanced manufacturer facilities and well-experienced workers.
Our products range includes various kinds of high quality Automotive use, Motorcycle use, Mower & Chainsaw use and Marine engine use spark plugs. Super quality of Platinum and Iridium spark plugs are highly recommended, with much longer service life and fuel economy. We also produce the professional CNG & LGP spark plugs for heavy-duty trucks; Industrial spark plugs are also available.
Our company pays high attention to the quality management and after- sales service. In future, we will keep working hard to develop higher products, and providing customers with the best service.
