Specification
4.45KG
Trademark
Booshiwheel
Origin
China
Body Material:
Iron
ETS Component:
Turbine
ETS Type:
Axialflow
Application:
Mitsubishi
Brand:
Booshiwheel
Transport Package:
Carton

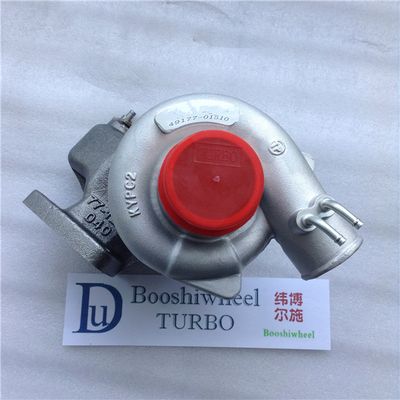

TD04 49177-01510 Turbo charger MD168053 MD168054 MD094740 for 4D56 engine parts turbo
Specification
| Part Number | 49177-01510 |
| Previous Part Number | 4917701510, 49177-01511 |
| OE Number | MD168053, MD168054, MD094740 |
| Year | 1989-90 |
| Description | Mitsubishi Shogun, Pajero, L300, L200 |
| CHRA | 49177-08020 (49177-09310) (1401404700) |
| Turbo Model | TDO4-10T/4, TD04 |
| Engine | 4D56, 4D56DE |
| Engine Manufacturer | Mitsubishi |
| Displacement | 2.5L, 2477 ccm, 4 Cylinders |
| Fuel | Diesel |
| KW | 64/87 HP |
| Bearing Housing | 49177-25540 (49177-25100, 49177-25520)(W/Cooled)(1401635462) |
| Turbine Wheel | 49177-30120 (49177-30130)(Ind. 40. mm, Exd. 47.2 mm, 12 Blades) (1401404435) |
| Comp. Wheel | 49177-44200 (49171-41410) (Ind. 35.5 mm, Exd. 49. mm, Trm 52, 6+6 Blades, Flat back)(1401404400) |
| Back plate | 49173-22500 (49135-00044, 49135-15405) (1401404300) |
| Heat shield Number | 49135-00020 (49135-19100) |
| Repair Kit | 49177-80410 (1401404755) |
| Turbine Housing | 49177-15122 |
| Compressor Cover | 49177-55880 |
| Turbine Housing AR | 4.0 |
| Gasket (turbine inlet) | 210501 (Stainless Steel) |
| Gasket (turbine outlet) | 210502 (Stainless Steel) |
| Gasket (oil outlet) | 210243 (Paper) |
Applications
1992-96 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
1988-96 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
1986-89 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
1989-90 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
1990-91 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
