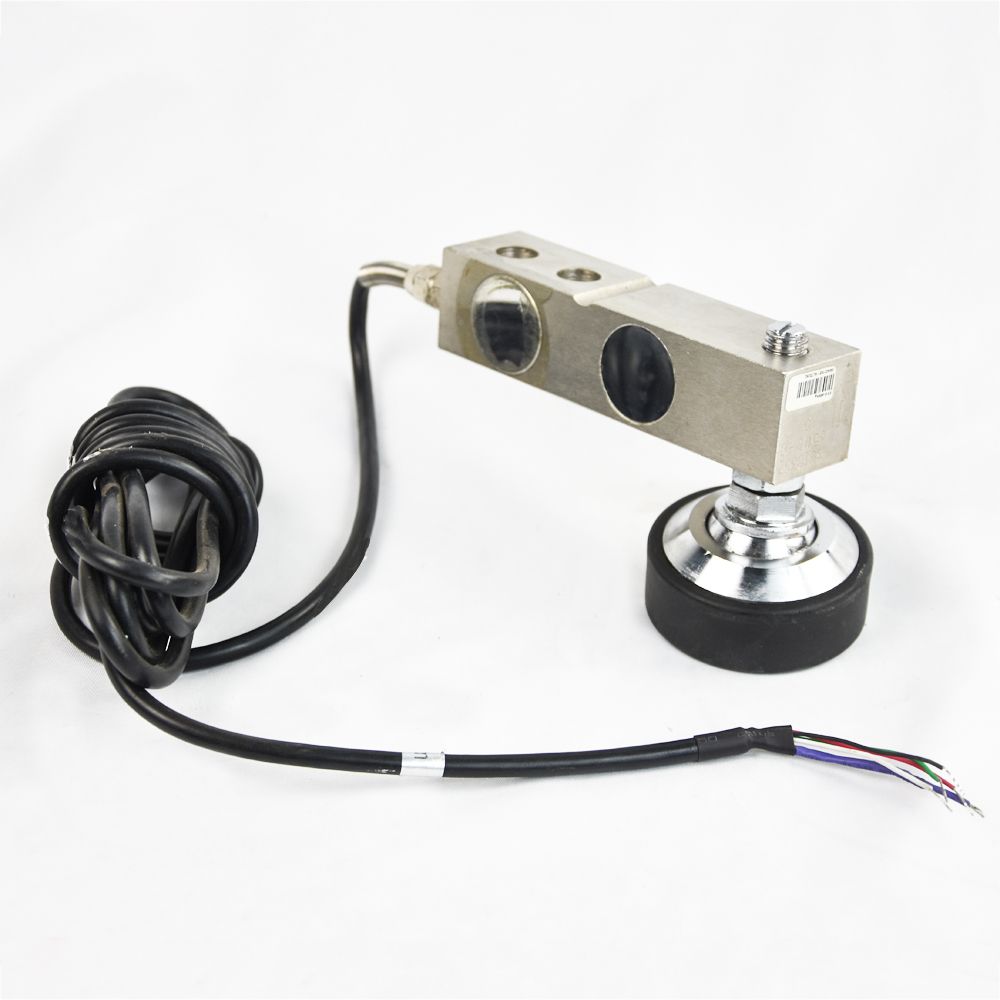

SQB1000kg-5000kg shear beam weighing sensor for floor scales
1. Production model: cantilever beam SQB
2. Applicable place: floor scale, blending control system, platform scale
3. Outline Dimension mm(inch)
| SPECIFICATION: | |
| Rated capacity: 10klb to 125klb | Operating temperature range: -30 to +70ºC |
| Rated output:3.0±0.003mv/v | Maximum safe overload;150% OF R.C |
| Combined error:±0.05% F.S | Ultimate safe overload;200% OF R.C |
| Non-repeatability:±0.02% F.S | Recommended Excitation;10 to 12V DC |
| Non-linearity:±0.05% F.S | Maximum Excitation;15V DC |
| Hysteresis error:±0.03% F.S | Environment protection: IP68 |
| Zero balance: ±1% F.S | Input impedance: 750±10Ω |
| Creep error(30minutes): ±0.03% F.S | Output impedance: 702±3Ω |
| Temperature effect on zero: ±0.02% F.S | Insulation resistance at 50V DC: ≥5000MΩ |
| Temperature effect on output: ±0.02% F.S | Material: nickel-plated alloy steel |
| Compensated temperature range: -10 to +40ºC | Cable length: 12/16meter, diameter 6mm |
Technical parameter 4 wires: Exc+(Red); Exc -(Black); Sig+(Green); Sig-(White)
| Rated capacities | 1,1.5,2,2.5t |
| Sensitivity | 3.0±0.003mV/V |
| Total error | ±0.03%F.S;±0.05%F.S |
| Creep(30min) | ±0.02%F.S |
| Zero balance | ±1%F.S |
| TCO | ±0.02%F.S/10°C |
| TC SPAN | ±0.02%F.S/10°C |
| Input resistance | 400±10Ω |
| Output resistance | 352±2Ω |
| Insulation resistance | ≥5000MΩ |
| Operating Temp Rang | -30°C~+70°C |
| Maximum safe overload | 150%F.S |
| Ultimate overload | 250%F.S |
| Excitation, recommended | 10~12V DC |
| Excitation, maximum | 15V DC |
| Protection class | IP68 |
| Construction | Alloy Steel;Stainless Steel |
| Cable | Length: 3m, Diameter: 6mm(Stainless Steel) |
FAQ
1.Can you customized the scale design for us?
Yes, we have professional team with rich experience of all type scales design by CAD software.you only need to tell us scale design or send us the technical drawing you want, so that we can customize according to your request.
2.Can you also offer truck scales weighing scales for us?
Yes, we can offer different models of different capacity and size of truck weighing scales to meet different request of customers.
3..How about your weighing scales quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of electronic truck scales and truck weighing scales.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard. Our products are running well in more than 30 countries
4.How we visit your factory and what will be the procedure?
Our company located in Quanzhou, FU JIAN province, our nearest airport is JIN JIANG airport, if you take plane, it will need about 1 hours from Guangzhou city, 1.5hours from shanghai and 2 hour from Beijing.We will pick you up from airport as well as the train station.Welcome you and your team to visit us at any time!
5.Your truck scale price is high, is there any discount?
We always provide high quality weighing scales with reasonable prices.Our truck scales have enough quality standard to make sure the scale can work at different sourrounings situations. Our marketing style is quality equal to price, the price will be acceptable for our clients and durable for our productsAnyhow, when we will negotiate the price with each other during our meeting in factory and try our best to get a good satisfaction.
