Model NO.
HPM87
Thread Type
G
Wiring Type
Three-Wire
Measuring Medium
Liquid Gas Steam
IP Rating
IP66
Certification
ISO9001
Customized
Customized
Sensor Type
Pressure Sensor
Pressure
-4MPa...0~0.04...4MPa
Display
LCD
Supply
10.5~45VDC, 10.5~26VDC
Output
4~20mADC with HART
Ambient Temp
-40~85ºC
Storage Temperature
-40~90ºC
Zero Point Migration
within 20% the max scale
Electrical Connection
M20*1.5
Transport Package
Carton
Trademark
HangJia Sensor
Origin
China
HS Code
90262010
Production Capacity
50000 Pieces / Year
Type:
Piezoresistive Pressure Sensor
Component:
SemiConductor Type
For:
Diffused Silicon Pressure Transmitter
Output Signal Type:
Analog Type
Production Process:
Injection
Material:
Metal
Product Overview:
Features:
Parameters:
Structure Drawings:
Electrical Connection:
Ordering Guide:
Related Products:
Certification:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on sensor for 10 years.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
HPM87 Monocrystalline Silicon Flange Diaphragm Pressure Transmitter adopts German advanced
MEMS technology to make the monocrystalline silicon core of the sensor and global original
monocrystalline twin beams suspension design to achieve the international leading functions of high
accuracy, super high over-voltage, and stability. The built-in professional signal processing module can
perfectly combine static pressure compensation and temperature compensation and provide super-high measuring accuracy and long-term stability under a wide range of static pressure and
temperature change. HPM87 can accurately measure differential pressure and transfer it to
4-20mADC signal output. This product can be operated locally through three buttons or operated
remotely via a manual operator, configuration software, and mobile APP. Without affecting the signal
output, it also can display and configure.
Features:
.High accuracy and high stability
.Excellent environment suitability
.Intelligent static pressure compensation and temperature compensation to prevent the transmitter
from the effect of temperature, static pressure, and over-voltage and control the comprehensive
measuring error to the minimum
.Flexible range of compression
.Great operability and convenience
Parameters:
| Measuring Medium | Liquid, Gas, or Steam |
| Pressure Range | -4MPa...0~0.04...4MPa |
| Output Signal | 4~20mADC with HART |
| Permissible Load Resistance | 0~600Ω(DC 24V) |
| Supply Voltage | 10.5~45VDC (General Service), 10.5~26VDC (Intrinsic safety and explosion-proof) |
| Zero-scale Migration | Within between -20% ~ and 20% of the maximum range |
| Ambient Temperature | -40~85ºC (when fluorocarbon oil filled:-10~60ºC) |
| Storage Temperature | -40~90ºC |
| Accuracy | TD 1:1…15:1 =±0.075% TD>15:1 =±(0.0015×TD+0.053) % |
| Output Mode | Linear output, square root output |
| Static Pressure Influence | ±0.05% of range/10MPa |
| Overpressure Influence | ±0.05% of maximum range/10MPa |
| Stability | ±0.05% of maximum range /12 months |
| Protection of Shell | IP66 |
Structure Drawings:
 |  | ||||||

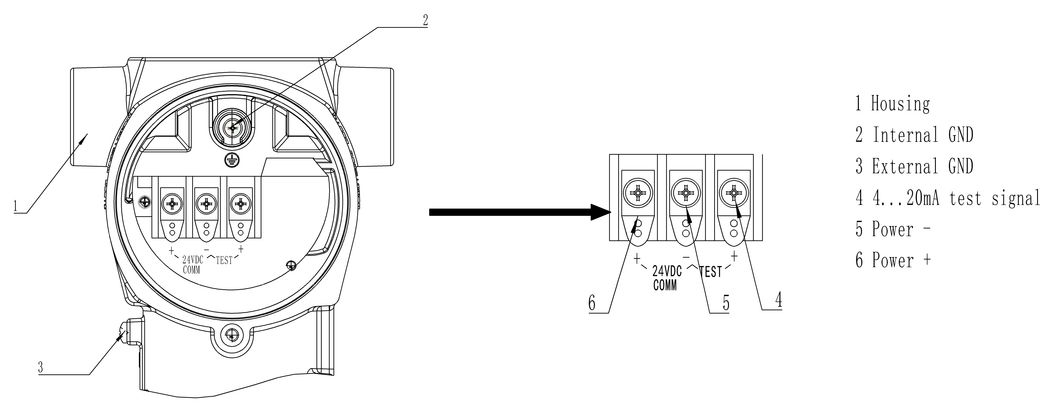

Electrical Connection:
Ordering Guide:
| Item NO. | Code | Illustration | ||||||||||||||
| HPM87 | - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | Monocrystalline Silicon Differential Pressure Transmitter | ||||||||||||||
| Output Signal | H - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | 4~20mA, HART Protocol Digital Communication | ||||||||||||||
| Measuring Range (diaphragm capsule) | M1 - - - - - - - - - - - - - M2 - - - - - - - - - - - - - M3 - - - - - - - - - - - - - M4 - - - - - - - - - - - - - L1 - - - - - - - - - - - - - | Range:-40~40kPa Range:-100~100kPa Range:-200~200kPa Range:-400~400kPa Range:-4~4MPa | ||||||||||||||
| Material of Contacted Liquid | S - - - - - - - - - - - - H - - - - - - - - - - - - T - - - - - - - - - - - - G - - - - - - - - - - - - | Isolation diaphragm: SUS316L Isolation diaphragm: Hastelloy C Isolation diaphragm:Tantalum Isolation diaphragm: Gold Plating | ||||||||||||||
| Filling Liquid | S1 - - - - - - - - - - - S2 - - - - - - - - - - - F - - - - - - - - - - - | Normal Temperature Silicon Oil High-Temperature Silicon Oil Fluorocarbon Oil | ||||||||||||||
| Flange Size/Material | 54 - - - - - - - - - - 56 - - - - - - - - - - 5F - - - - - - - - - - 84 - - - - - - - - - - 86 - - - - - - - - - - 8F - - - - - - - - - - | 2-inch(50mm,DN50)/SUS304 2-inch(50mm,DN50)/SUS316L 2-inch(50mm,DN50)/other requirements 3-inch(80mm,DN80)/SUS304 3-inch(80mm,DN80)/SUS316L 3-inch(80mm,DN80)/ other requirements | ||||||||||||||
| Flange Spec | A - - - - - - - - B - - - - - - - - C - - - - - - - - - D - - - - - - - - - E - - - - - - - - - F - - - - - - - - - G - - - - - - - - - H - - - - - - - - - I - - - - - - - - J - - - - - - - - - | Standard Pressure ANSI 150 2MPa ANSI 300 5MPa ANSI 600 11MPa ANSI 900 15MPa ANSI 1500 26MPa DIN PN 10/16 1.6MPa DIN PN 25/40 4MPa DIN PN 64 6.4MPa DIN PN 100 10MPa DIN PN 160 16MPa | ||||||||||||||
| Installing Form | S - - - - - - - - L - - - - - - - - | Side Mounted Straight mounted | ||||||||||||||
| Seal Ring | F - - - - - D - - - - - T - - - - - | Fluororubber Buna-n O-Ring Teflon | ||||||||||||||
| Electrical Connection | M20 - - - - - - - - - - - | M20x1.5 | ||||||||||||||
| Display Header | D - - - - N - - - - | with LCD display N/A | ||||||||||||||
| 2-inch Installment Holder | H - - - V - - - N - - - | Tablet Holder Right-angle Holder N/A | ||||||||||||||
| Holder Material | T - - - S - - X - - - | Sherardize on Carbon Steel Stainless Steel 304 Other Requirements | ||||||||||||||
| Wireless Adjustment Function | W - - - N - - | with Wireless Adjustment Function N/A | ||||||||||||||
| Explosion-Proof | I d - N - | Intrinsic Safety Type, Exia IICT6 Explosion-proof Type, Exd II CT6 N/A | ||||||||||||||
| Order Code | V | Special Requirements | ||||||||||||||
| Reference Item: HPM87-H-M1-S-S1-54-F-L-F-M20-D-V-T-W-N-V | ||||||||||||||||
