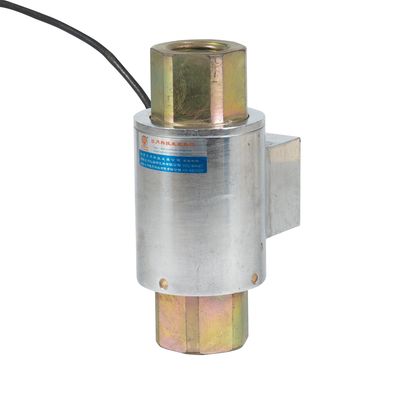

Model NO.
SMA25HDC
Thread Type
NPT, G1/4, 1/4-18NPT, M12, 7/16-20unf
Wiring Type
Four-Wire
Measuring Medium
Liquid
IP Rating
IP67
Certification
ISO
Customized
Customized
Pressure Range
0~1MPa...200MPa
Temperature
-40~85 Degree Celsius
Measure Medium
Oil
Transport Package
Standard
Trademark
Sun-Moon
Origin
China
HS Code
9026209010
Production Capacity
30, 000 Piece/Year
Output Signal Type:
Digital Type
Production Process:
Normal Wirewound
Material:
Stainless Steel
Dimensions (In mm. 1mm=0.03937 inches)
| Items | Technical Parameters | Unit | |||
| Range | Gauge Zero reference environment atmospheric pressure -100kPa… -10Pa~0,0~10kPa~3.5MPa | | |||
| Absolute pressure Relative vacuum calibration 0~10kPa… 35MPa | |||||
| Sealed reference pressure Relative ambient pressure calibration 0~100kPa…40MPa…500MPa | |||||
| Ultimate Overload | 200 | %F·S | |||
| Pressure type | Gauge(G) Absolute pressure(A) Sealing pressure(S) | ||||
| Measuring medium | 316All corrosive media compatible with 316 stainless steel | ||||
| Accuracy level | 0.1 | 0.2 | 0.3 | %F·S | |
| Operating Temperature Range | -40~+85 | ºC | |||
| Supply voltage | 18~36 | VDC | |||
| Output | 4~20 (,Zero, range can be externally adjusted) | mA | |||
| load capacity | 250~1200 (Rl=50×(Ul-12)) | Ω | |||
| Electrical connections | Connector or shielded cable | ||||
| Pressure interface | M14×1.5,M20×1.5Male thread interface or special interface | ||||
| Housing material | stainless steel | ||||
