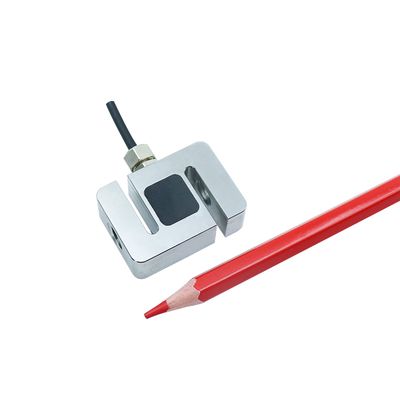

50~2000N capacity Tensile-Compressive froce sensor
Descriptions
50,100,200,500,2000N S Beam Load Cell FA303 is a model which is in S Beam Load Cell category of our brand FIBOS FA3-Series, S Beam Load Cell FA305 can be used to measure load 50,100,200,500,2000N capacity, its Cable size is diameter 3x3000mm
| Product name | S Beam Load Cell |
| Capacity | 50,100,200,500,1000, 2000N |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±0.05mV/V |
| Non-linearity | ≤0.05%F.S. |
| Hysteresis | ≤0.05%F.S. |
| Repeatability | ≤0.05%F.S. |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Insulation resistance | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maxmum excitation Voltage | 15V |
| Compensated Temp Range | -10~60 ºC |
| Operating Temp Range | -20~80 ºC |
| Temp.effect on output | 0.025%F.S./10 ºC |
| Temp.effect on zero | 0.025%F.S./10 ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | diameter 3X3000mm |
| Weight | 0.2kg |
| Material | Stainless steel/alloy steel |
