Wiring Type
Four-Wire
Measuring Medium
Liquid
Certification
ISO
Customized
Customized
Torque Range
3000 in-Lb to 24000 in-Lb
Transport Package
Standard
Trademark
Sun-Moon
Origin
China
HS Code
9026209010
Production Capacity
30, 000 Piece/Year
Output Signal Type:
Digital Type
Production Process:
Normal Wirewound
Material:
Stainless Steel
Description
Model QFFH-9 flange reaction torque transducer is designed for installation between test pieces such as motors, switches, axles or shafts and their mounting plate. These models operate and are calibrated in both directions. Stainless steel construction enhances durability in harsh, industrial environments. These models have no moving parts and utilize four bonded strain gages on a special machined portion of the transducer to achieve a maximum non-linearity of 0.1% over a wide dynamic range. Typical applications include tire braking, motor dynamometers, friction-skid testing, and twist measurement.
characteristic
3000 in-lb to 24000 in-lb capacities
• 0.1 % non-linearity and hysteresis
• Wide dynamic range
• High frequency response
• Stainless steel construction

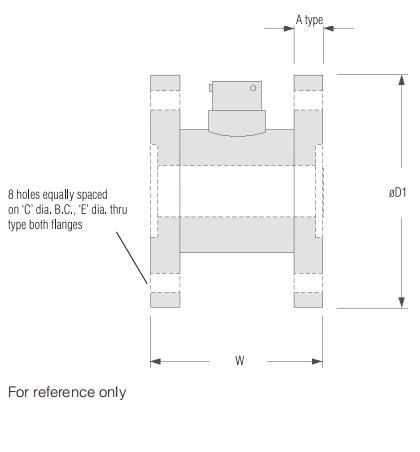

Dimensions
Specification| Type | Technical parameters |
Nominal load range | 3000; 6000; 12000; 24000 in.-lb |
Zero balance | 1.0±% of rated output |
| Analog output | 2.5±0.015mV/V |
Input resistance(Rlc) | 700±1Ω(ohms) |
Output resistance(Ro) | 700±1Ω(ohms) |
Insulation resistance | ≥5000 MΩ(Mege-Ohms) |
| Class precision | 0.5%FS |
Overload capacity | 150% |
| Operating temperature | -54 °C to 77 °C |
Material material | (15%) High performance alloy steel or (chromium ratio>15% stainless steel) |
