Model NO.
24t 28t 32t
Quality
Good
Transport Package
Wooden Pallet
Trademark
JLB
Origin
China
Production Capacity
50000PCS/Month
Material:
Steel
Certification:
ISO/TS16949, ISO9001
Car Make:
Semi-Trailer
Position:
Rear
Type:
Bogie Suspension
Capacity:
24t 28t 32t
Product Features
1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performanc, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance premium non-asbestos brake linings, extend service life.
4. Easy for ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap have O rings, high property for sealing.
7. Grease lubrcant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO. BSF and JAP, it can meet the requirements of various wheel rims.
1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performanc, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance premium non-asbestos brake linings, extend service life.
4. Easy for ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap have O rings, high property for sealing.
7. Grease lubrcant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO. BSF and JAP, it can meet the requirements of various wheel rims.

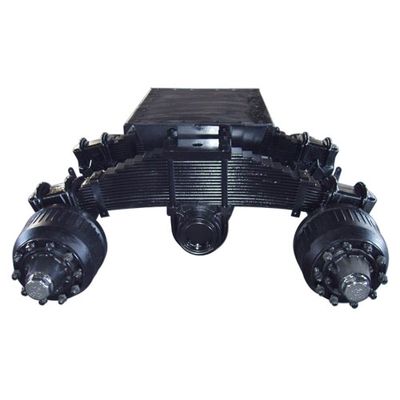

| Germany Type Bogie Suspension | |||||||||||||
| Rated Load (kg) | Weight (kg) | Bearing Type | Axle Beam | Brake Size | Track Length A | P.C.D. | Tyre Bolt | Steel Turn Position | Wheel Base B | C mm | D mm | E mm | F mm |
| 24000 | 2020 | 33118 33213 | SQUARE 150*14 | 420*180 | 1870mm | 335 | 10-M22*1.5 | 280 | 1385 | 900 | 600 | 700 | 55 |
| 24000 | 2080 | 33118 33213 | SQUARE 150*14 | 420*200 | 1870mm | 335 | 10-M22*1.5 | 280 | 1385 | 900 | 600 | 700 | 55 |
| 28000 | 2455 | 33215 32219 | SQUARE 150*14 | 420*200 | 1870mm | 335 | 10-M22*1.5 | 280 | 1550 | 900 | 600 | 800 | 55 |
| 32000 | 2520 | 32314 32222 | SQUARE 150*16 | 420*200 | 1870mm | 335 | 10-M22*1.5 | 280 | 1550 | 900 | 600 | 800 | 55 |
| 36000 | 2600 | 32314 32222 | SQUARE 150*18 | 420*220 | 1870mm | 335 | 10-M22*1.5 | 280 | 1550 | 900 | 600 | 800 | 55 |
