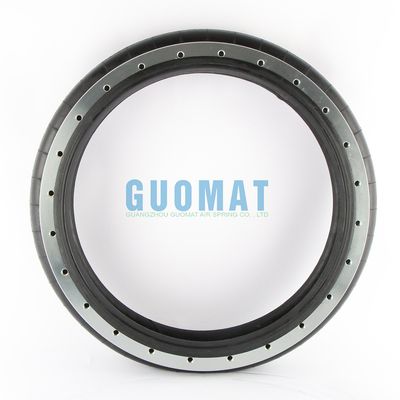

FS 1710-12 Contitech Rubber Bellows M10 Bolts Industrial Air Spring
Product Details
| Part Number | 1B 1710-12 |
| OEM Number | Contitech FS1710-12 |
| Working Temperature | -40°C bis +70°C |
| Failure Testing | ≥3 millions |
| Maximum Outer Diameter | Ø585mm |
| The Diameter of the Flange | Ø517mm |
| Nominal Diameter of the Flange | Ø482mm |
| Distance Between Bolts | Ø482mm |
| Bolts | 24XM10 |
| Maximum Height | 177mm |
| Minimum Height | 55mm |
Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
Air Spring Introduction
Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.
Company Profile
Packaging & Shipping
Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.
Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.
Product Images
FAQ
| 1. Are you a Manufacture factory? Yes, We are the direct manufacture factory, located in Guangzhou China, Which is specialized in air spring in China for over 15years experience from 2008 years. |
| 2. What is your main products? Our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. |
| 3. Is the sample available? Yes, Usually we send the samples by TNT,DHL,FEDEX or UPS. |
| 4. What is your warranty term? There is a 12months warranty for our export products has run out from the date of the shipment. |
| 5. Can i use my own logo and design on products? YES,OEM is welcomed. |
| 6. I can not find out the items what i want from your website, can you offer the products i need? YES.One of our service term is sourcing the products that our customers need,So please tell us the details information of the item. |
