S-160-2R Rubber Double Convoluted Air Spring Bellows F-160-2 Air Bag
F-160-2 Technical parameters
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-160-1 | S-160-1 | 72 | 102 | 40 | ±25 | 220 |
| F-160-2 | S-160-2 | 98 | 148 | 53 | ±35 | 220 |
| F-160-3 | S-160-3 | 152 | 227 | 82 | ±53 | 220 |
| F-160-4 | S-160-4 | 206 | 306 | 111 | ±70 | 220 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-160-1 | S-160-1 | 200 | 1.9 | 9.8 | 636 | 3 | 0.69 | 2.9-3.9 |
| F-160-2 | S-160-2 | 200 | 2.1 | 9.8 | 255 | 2.5 | 0.88 | 2.9-3.9 |
| F-160-3 | S-160-3 | 200 | 3.4 | 9.8 | 157 | 2 | 0.88 | 2.9-3.9 |
| F-160-4 | S-160-4 | 200 | 4.7 | 9.8 | 118 | 1.7 | 0.88 | 2.9-3.9 |
Packaging Information:
Net Weight:1.85 KG
Gross Weight:2.35 KG
Package Size:110mm*220mm*220mm

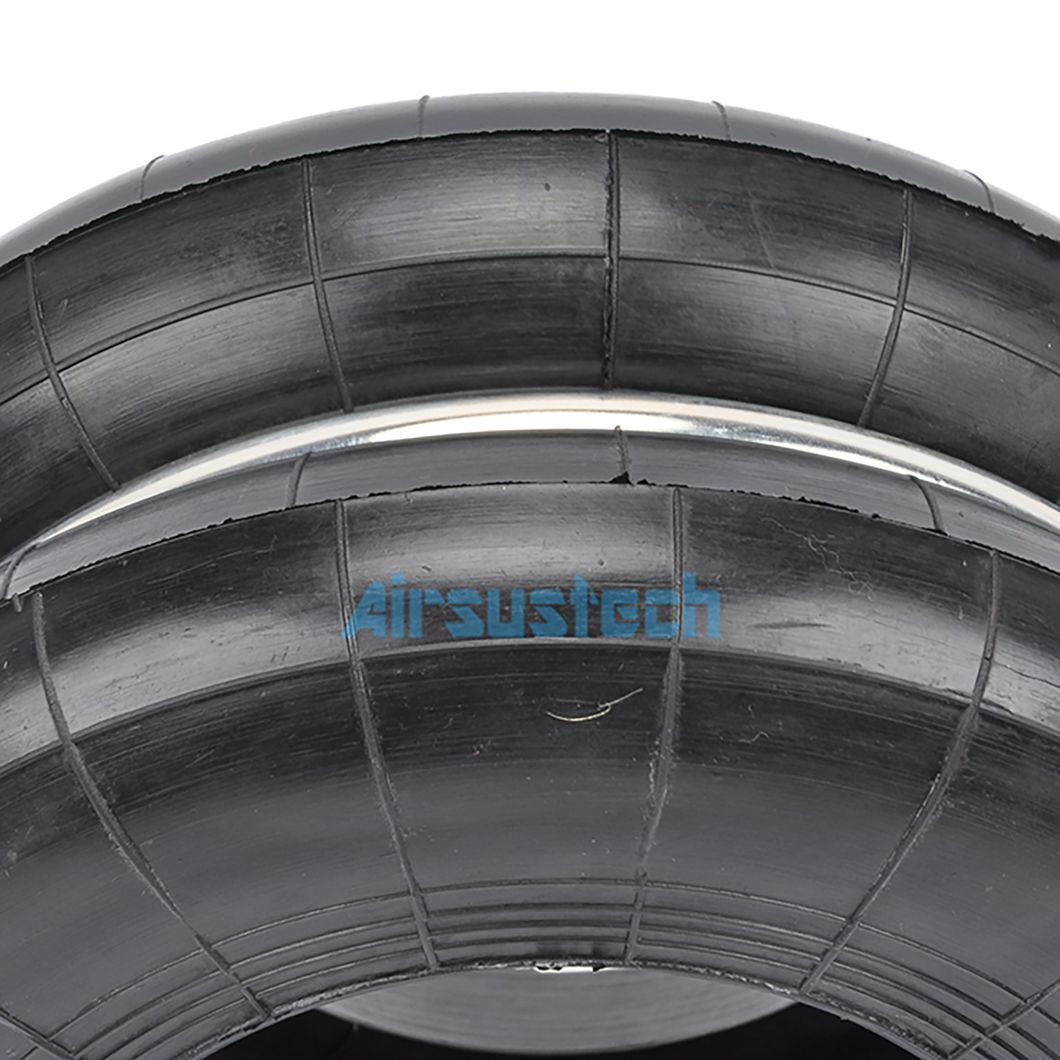

The related picture of F-160-2
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory workshop
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.
Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
