Phoenix SP1B04/SP 1B 04 Replacement One Convoluted Rubber Air Spring
Refer Number
Contitech: FS 40-6 1/8 M8
Contitech: FS40-6 1/8 M8
Contitech: FS 40 6 1/8 M8
Contitech: FS40 6 1/8 M8
Phoenix: SP 1 B 04
Phoenix: SP1B 04
Phoenix: SP1B04
Weforma: WBE 100-E1
Weforma: WBE 100 E1
Weforma: WBE 100E1
Weforma : WBE100-E1
The detailed Specifications and techical parameters
The Max. Diameter: 145mm
Air hole/air inlet: G1/8
Working stroke: maximum 110 mm to minimum 50 mm
Top plate screw (nut) teeth: M8×1.25

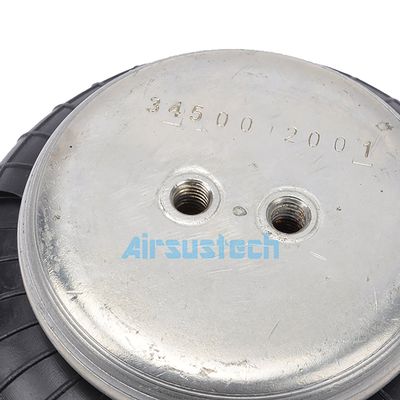

Bottom plate screw (nut) teeth: 2 x M8×1.25
Top cover diameter: 90 mm
Bottom cover diameter: 90 mm
Screw center distance: 20 mm
The air hole distance between the nuts: together
Min. pressure: 0 bar
Return force to min.height: ≤120N
Overall weight with clamped plates: 0.9kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 90mm, minimum 70mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 1.7 | 2.3 | 2.8 | 3.4 | 3.8 | 4.4 | 0.5 |
| Spring rate [N/cm] | 760 | 990 | 1220 | 1480 | 1610 | 1820 | |
| Natural frequency [Hz] | 3.5 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 100 | 1.2 | 1.6 | 2.0 | 2.5 | 3.0 | 3.4 | 0.6 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 | |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 | |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 | |
| 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 | |
The reated picture
Guomat Air Springs Production Line
Air spring is an industrial accessory that can function as support, buffer, braking, height adjustment and angle adjustment. The air spring can keep the natural vibration frequency unchanged under any load, can bear radial and axial loads at the same time, and can also transmit a certain torque, and different bearing capacities can be obtained by adjusting the internal pressure.
1. Rubber mixing: exercise and rubber processing
2. The production of rubber bellows: bellows is made of inner is a layer of rubber, the middle is two layers of cord fabric and the outside is a layer of rubber. Through the fixed mold them together.
3. Other forming accessories: plastic parts, iron base, aluminum base, iron plate, and other hardware accessories, these parts have been made in different moulds.
4. The bellows and other accessories are gotten together by machine and make out air spring.
5. Air tightness detection: each production of good air spring fills the air, and then put into the water to test whether the bubbling gas leakage.
6. Quality: blasting test, fatigue test, the air spring blasting pressure GUOMAT factory is up to 30 atmospheric
pressure, fatigue to reach 3 million times, meet the international standards.
7. Packing: the qualified products for packaging, are usually carton packaging, need some special strong wooden case packing, others are labeling packaging according to customer's requirements.
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.
Factory workshop
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.
Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
