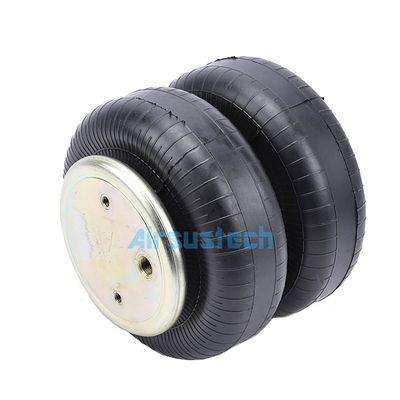

Contitech FD 200-25 1/4NPTF Offset Convoluted Rubber Industrial Air Spring
Cross Reference
| Cross reference No. |
| CONTITECH FD 200-25 |
| CONTITECH FD 200 25 |
| CONTITECH FD 20025 |
| Fire-stone. W01-358-6951 |
| Fire-stone. W01 358 6951 |
| Fire-stone. W013586951 |
| Fire-stone WO13586951 |
| Fire-stone WO1-358-6951 |
| Fire-stone WO1 358 6951 |
| GOODYEAR 556238332 |
| FIRE-STONE W01-358-0305/20-2 |
| FIRE-STONE W01 358 0305/20-2 |
| FIRE-STONE W013580305/20-2 |
Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6951
Nut/blind nut
Top plate screw (nut) teeth: 2X3/8-16UNC
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-16UNC
The screw center distance of the bottom cover plate: 89 mm
Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
The distance between the air inlet and the screw center: 44mm
Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm
Bell rubber bellows
Rubber Bellow Diameter: 232.5mm
Stroke: 240mm
Bumper block/bumper block
No bumper block
Belt loop/Girdle hoop/Girdle ring
One piece of belt loop/girdle hoop/girdle ring
Min. pressure: 0 bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg
Vibration isolation - dynamic characteristic values
Design Height H: recommended 254mm, minimum 230mm
| Pressure p[bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force(Load) [KN] | 6.0 | 8.1 | 10.2 | 12.3 | 44.4 | 16.5 | 8.6 |
| Spring rate [N/cm] | 730 | 930 | 1200 | 1390 | 1660 | 1840 | |
| Natural frequency [Hz] | 1.8 | 1.8 | 1.7 | 1.7 | 1.7 | 1.7 |
Pneumatic application-static characteristic values
Force F[KN]
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V [l] | |
| Height H[mm] | 290 | 4.1 | 5.6 | 7.3 | 9.0 | 10.5 | 12.4 | 9.4 |
| 260 | 5.6 | 7.3 | 9.4 | 11.3 | 13.4 | 15.4 | 8.9 | |
| 230 | 6.6 | 8.8 | 11.1 | 13.4 | 15.8 | 18.1 | 8.4 | |
| 200 | 7.5 | 9.9 | 12.5 | 15.0 | 17.6 | 20.2 | 7.7 | |
| 170 | 8.3 | 11.0 | 13.8 | 16.6 | 19.4 | 22.2 | 7.0 | |
| 140 | 8.9 | 11.8 | 14.8 | 17.7 | 20.7 | 23.6 | 6.1 | |
| 110 | 9.3 | 12.3 | 15.6 | 18.7 | 21.9 | 24.6 | 5.1 | |
Packaging Details
Model No: AIRSUSTECH 2B6951
Net Wight: 3.744kg
Gross Wight: 4.124kg
Box Weight: 0.38kg
Box Size: 24*24*24cm
Packing Quantity: 1
The related picture of 2B6951
