Model NO.
FD200-19
Structure
Single Cylinder
Brand
Guomat or Neutral
Damping Force Direction
Bidirectional
Condition
Brand-New
Sample
Available
Max Diameter
251mm
Plate Diameter
160mm
Transport Package
Cartons
Trademark
GUOMAT
Origin
Guangzhou
HS Code
8708809000
Production Capacity
5000PCS/Month
Warranty:
1 Year
Part:
Air Spring
Position:
Front/Rear
Type:
Gas-Filled
Spring Type:
Air Spring
Spring Material:
Rubber

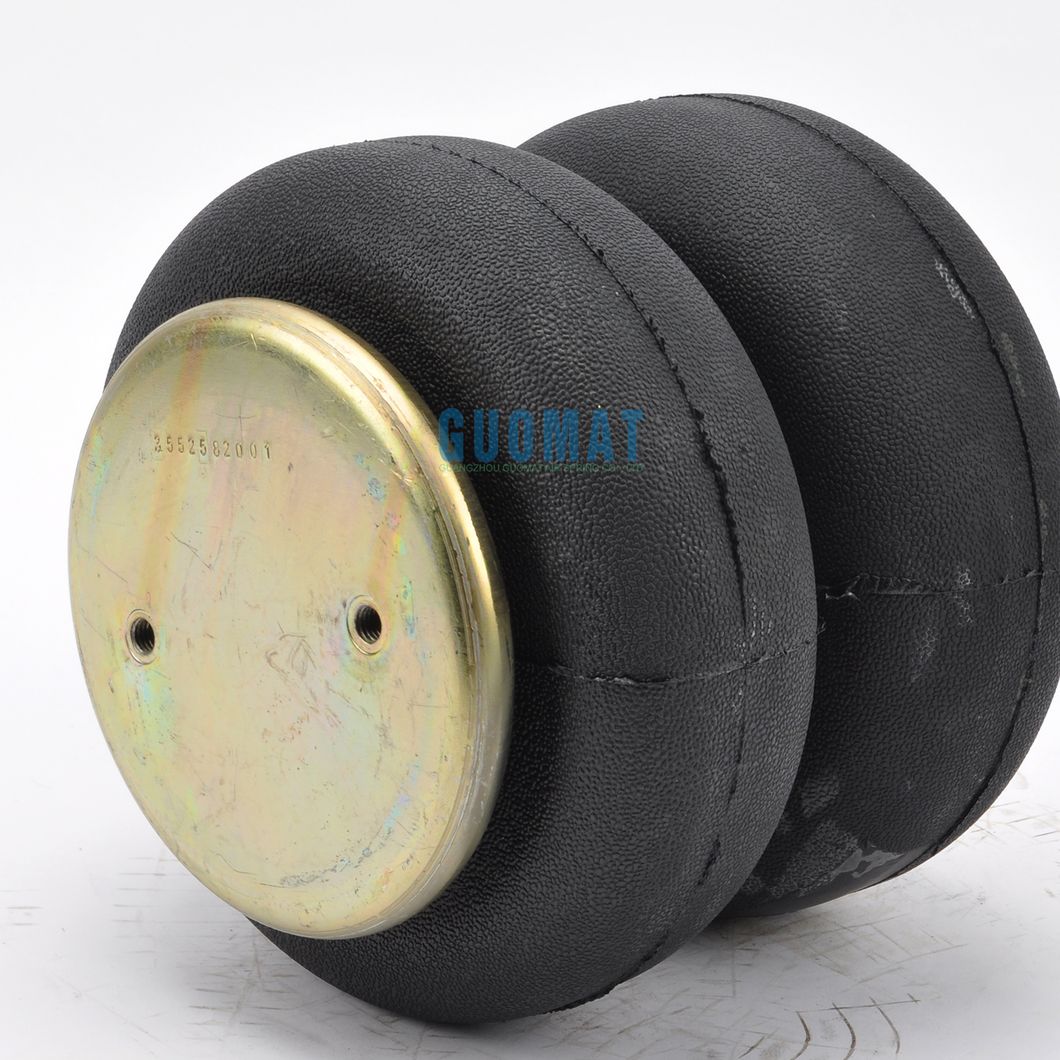

Customized Suspension Parts Double Convoluted Suspension Air Spring Contitech FD200-19
Convoluted type air spring is composed of a rubber Convoluted sandwiched with cords and compressed air sealed in it. The inner layer of the airbag is made of air-tight rubber, while the outer layer is made of oil-resistant rubber. Airbags are generally made into two sections,but there are also single sections or three or four sections. The more the number of nodes, the better the elasticity, but the sealing performance is poor. There is a steel waist ring between the nodes to prevent radial expansion of the middle part and prevent friction between the two nodes. The upper and lower covers of the airbag seal the airbag.
FD200-19 convoluted Air Spring

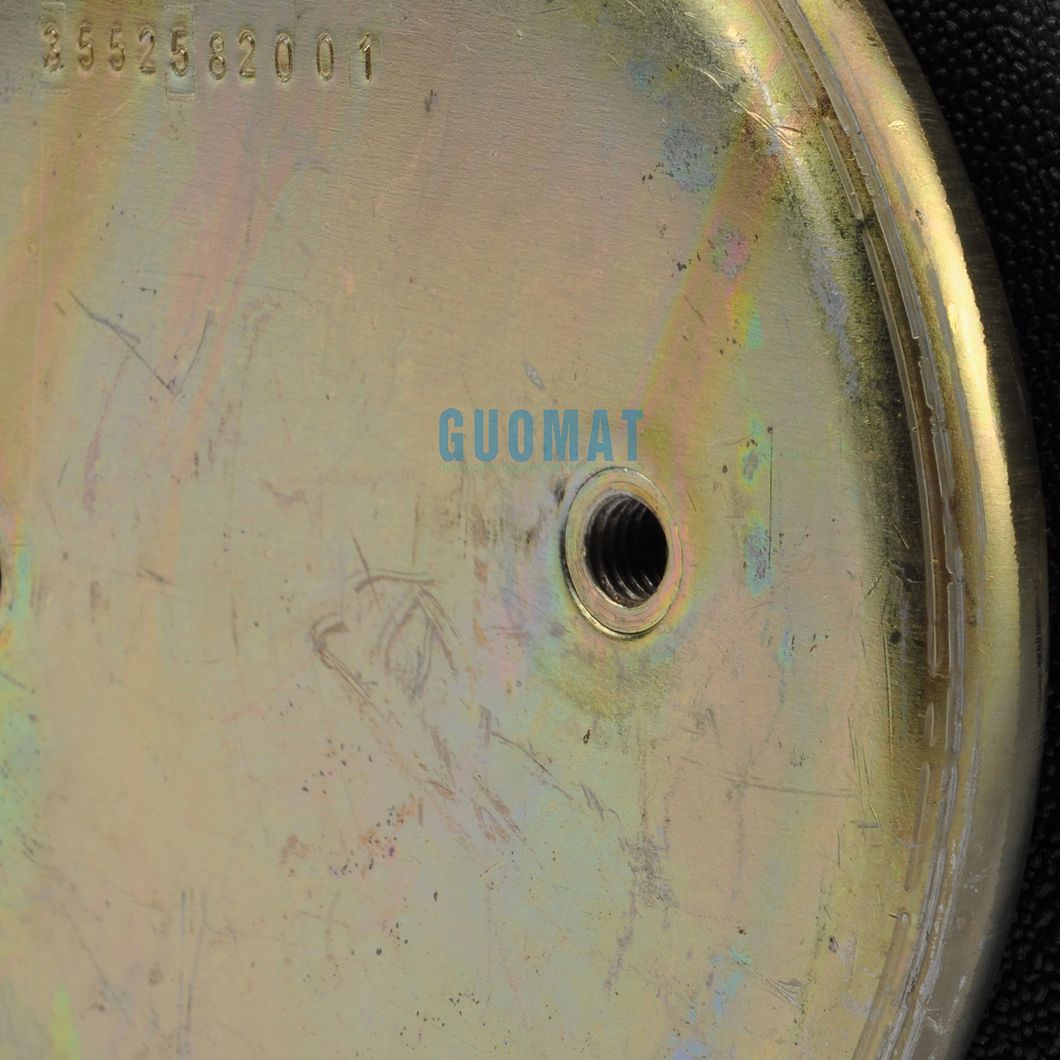

Bottom Cover Plate Dia:160mm
Screw Center Distance:89mm
Distance Gas Hole Between Nuts:38mm
Gas Hole Type:G3/4
Screw(Nut)Tooth:2 X M8X1.25
Rubber Bellows Dia.:224mm(MAX.215)
The Stroke:75~260mm
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
Convoluted type air spring
Convoluted type air spring is composed of a rubber Convoluted sandwiched with cords and compressed air sealed in it. The inner layer of the airbag is made of air-tight rubber, while the outer layer is made of oil-resistant rubber. Airbags are generally made into two sections,but there are also single sections or three or four sections. The more the number of nodes, the better the elasticity, but the sealing performance is poor. There is a steel waist ring between the nodes to prevent radial expansion of the middle part and prevent friction between the two nodes. The upper and lower covers of the airbag seal the airbag.
FD200-19 convoluted Air Spring
Manufacturer: Contitech
Brand name: Contitech
Model: 2B-200
Product Technical parameters
Bottom Cover Plate Dia:160mm
Screw Center Distance:89mm
Distance Gas Hole Between Nuts:38mm
Gas Hole Type:G3/4
Screw(Nut)Tooth:2 X M8X1.25
Rubber Bellows Dia.:224mm(MAX.215)
The Stroke:75~260mm
We Proudly Offer the Highest Quality Replacement Air Springs that Exceed OEM Requirements.
Specification:
| Long lasting service on almost all tryck and trailer air suspension. |
| Absorb road shock to help tractors and rigs last longer. |
| Cut down on vibration and driver fatigue. |
| Long trouble free service,constant leve; hauling,quite cushioned ride. |
