Convoluted Fire-stone W013587598 Style 116-1 Paper Mills Airide Air Spring
Also Known
Fire-stone W01-358-7598
Fire-stone W01 358 7598
Fire-stone W013587598
Fire-stone WO1-358-7598
Specifications and Detailed Technical Parameters:AIRSUSTECH Airride Air Spring 1B7598
| AIRSTROKE ACTUATOR | |
| Maximum diameter of rubber bellows | 240mm |
| Working stroke | minimum 60 mm to maximum 180 mm |
| Material | 2-Ply Standard Cord |
| Number of Convolutions | One |
| END CLOSURE DETAILS | |
| Top/Bottom plate diameter | 135 mm |
| Blind nut centers | 70mm |
An air spring is basically a column of air confined within a rubber-and-fabric container shaped like a bellows.
Guomat air spring have experienced in producing air spring with high quality. All products have gone through strict detetaion. All of them are durable. The rubber component of our air springs have high Anti-Ozone, Water Resistance, UV Resistance, Abrasion Resistance, Flame retardant, Tensile strength, Elasticity, Tear Resistance, Ageing , Resistance, Impermeability,,Rubber-Fiber Adhesion Strength.
Guomat 1B7598 Air Springs in Paper Mills
Guomat air springs consist of a flexible elastomer rubber body with nylon fabric reinforcement, and rustproof plates with an air inlet and mounting blind nuts. The AIRSUSTECH rubber bellows can be used both as vibration isolators and rubber actuators. The AIRSUSTECH air springs absorb up to 99% of the unwanted vibrations avoiding further damages to the machines and metallic structures. At the same time, they reduce noise level.
AIRSUSTECH rubber actuators have been developed to replace the traditional air or hydraulic cylinders. Due to their design, the air pressure inside the bellow produces an upward stroke, thrust, tension, angular movements or fast anchoring movements.
Convoluted Rubber Air spring knowledge
1. How much air should be put in the air springs
You should always keep 5 lbs. of air pressure in your air bags to prevent any damage. 5 lbs. will not affect your ride but will ensure your air bags last. This is where an air compressor kit comes in handy, monitoring and maintain the minimum air bag pressure.
2. How air helper springs work
With an increase or decrease in the amount of air pressure in each bag, you can adjust the suspension for rides with lights loads, heavy loads or no load at all.
3. What is inside an air spring
An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself.
Company Profile
Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.
The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.

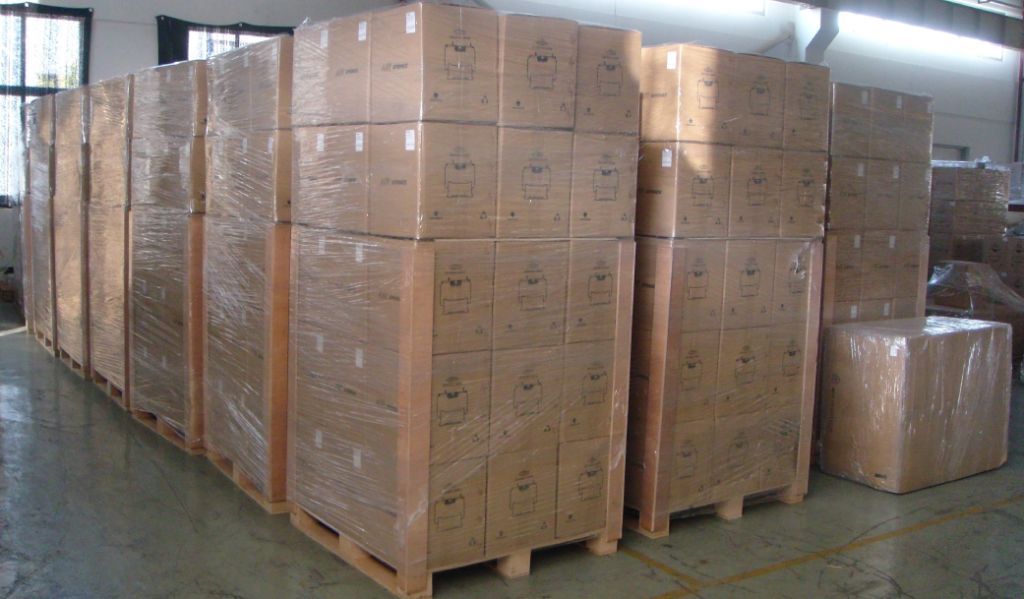

Factory workshop
FAQ
Q1:Can you produce the product according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q3: What certification does your product pass?
A: Our products are certified to ISO/TS16949:2009 international quality standards. Please rest assure that we have very strict Quality Control Systems.
Q4 : Can I use my own logo?
A:Sure. We can do as per the customer's requirements.
