Model NO.
1B5330
Spring Material
Rubber
Structure
Single Cylinder
Damping Force Direction
Bidirectional
Color
Black
Trademark
GUOMAT
Origin
Guangzhou, China
HS Code
8708809000
Production Capacity
1000PCS/Week
After-sales Service:
12 Months
Warranty:
12 Months
Part:
Air Spring
Position:
Front/Rear
Type:
Gas-Filled
Spring Type:
Air Spring

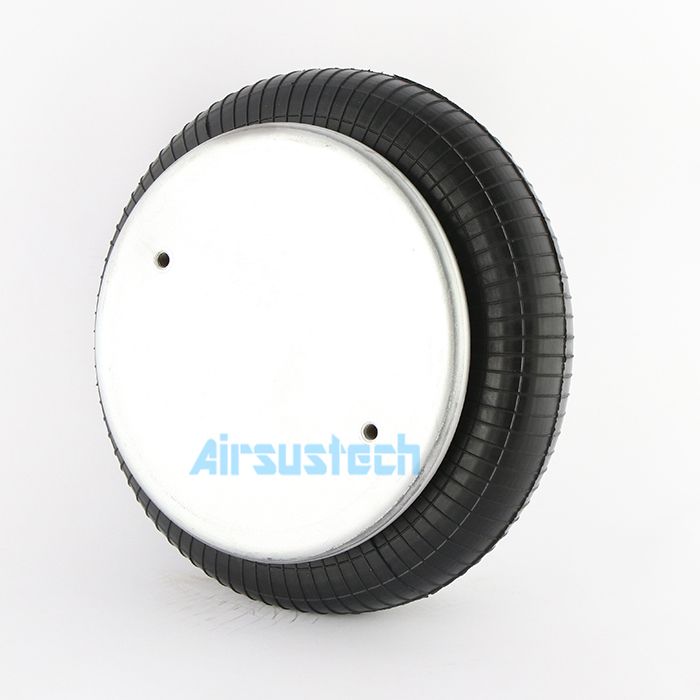

Fire-Stone W01-358-7008 Rubber FS330-11 474 Single Convulted Air Spring
The detailed Specifications and techical data
The reated picture
OEM Number:
Fire-stone:W01-358-7008
Fire-stone: W01 358 7008
Fire-stone: W013587008
Contitech: FS 330-11 474
Contitech: FS 330 11 474
Contitech: FD 33011474
Good Year: 1B12-300/313
Triangle: 6374/4474
The competitive advantage of the product
3. More than ten years of production technology, products cover the world.
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory workshop
FAQ:
1. What is your payment terms?
We normally do FOB, CFR, CIF, DDP, DAP, EXW.
2. I can not find out the products what I want from your website,can you offer the items I need?
Sure. One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
3. How long is the Warranty?
One Year.
The detailed Specifications and techical data
| The Max. Diameter | 325mm |
| Air hole/air inlet | 1/4 N P.T.F. |
| Working stroke | maximum 160 mm to minimum 55 mm |
| Top plate screw (nut) teeth | 2 x 3 / 8-16UNC |
| Bottom plate screw (nut) teeth | 2 x 3 / 8-16UNC |
| Top cover diamete | 9.00 inches / 231 mm |
| Bottom cover diameter | 9.00 inches / 231 mm |
| Screw center distance | 157.5 mm |
| The air hole distance between the nuts | 73 mm |
The reated picture
OEM Number:
Fire-stone:W01-358-7008
Fire-stone: W01 358 7008
Fire-stone: W013587008
Contitech: FS 330-11 474
Contitech: FS 330 11 474
Contitech: FD 33011474
Good Year: 1B12-300/313
Triangle: 6374/4474
The competitive advantage of the product
1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.
2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.3. More than ten years of production technology, products cover the world.
Company Profile
Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Factory workshop
FAQ:
1. What is your payment terms?
We normally do FOB, CFR, CIF, DDP, DAP, EXW.
2. I can not find out the products what I want from your website,can you offer the items I need?
Sure. One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.
3. How long is the Warranty?
One Year.
