Contitech Auto Parts 2S70-13F Double Convoluted Air Suspension Rubber Air Spring
Product Details
Item Name | Air Suspension Shock Absorber |
Model Number | 2S70-13F |
| Spring Material | Rubber |
| Flange Material | Steel |
Warranty | 12 Months |
Package | Carton |
Brand | GUOMAT/Neutral |
| Other Name | Truck Rubber Air Spring |

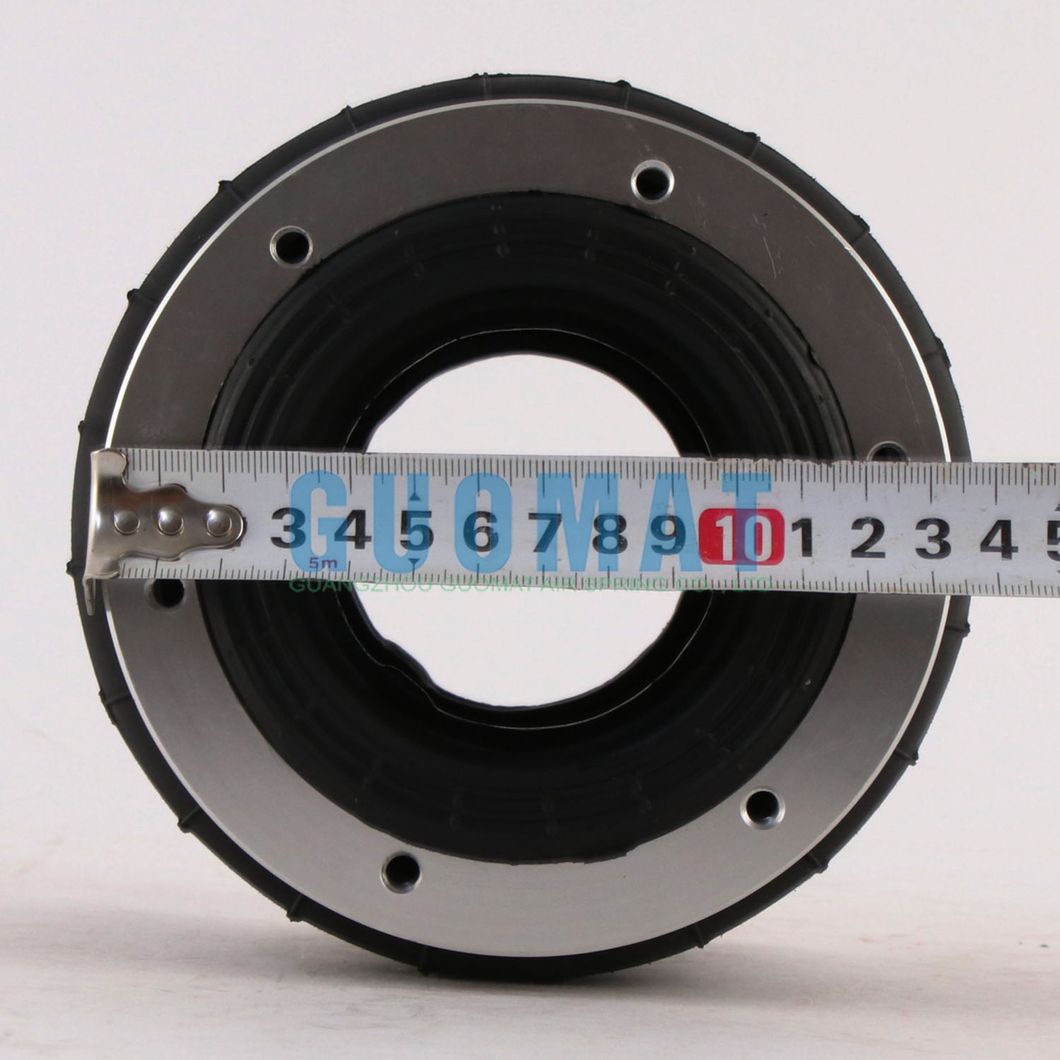

2S70-13F Flange Connection Air Suspension Spring Specification
| Flange | Open Flange |
| Flange Diameter | φ134mm |
| Flange Thickness | 15mm |
| Threaded Hole | 6 pieces X M10 |
| Distance Between Threaded Holes | φ114.5mm |
| The Rubber Bellows Diameter | φ146mm |
| Height | 153mm |
| loading cap. At 7.0bar | 2.88kN |
| loading cap. At 7.0bar | 7.25kN |
Air Suspension
The suspension is the link between the road and the car body. The job of the suspension is to reduce, as far as possible in a controlled fashion, the vibrations from the wheel and the car body caused by an uneven road or changes of direction. Every attempt must be made to prevent these vibrations from being transmitted to the car body in order to reduce rocking, pitching and diving, avoid swaying, and ensure optimum road contact and traction with minimum slip. air shock absorber replace the original air strut of your vehicle and offer you maximum ride comfort with high durability. Security, accuracy and quality of the product match the original part.
