Model NO.
KMM1318B
Type
Rear Axles
Brake Size
420X220
Bearing
518445 518445
Beam Size
Square 150
Axle Capacity
13t 16t
Transport Package
Container 20′
Specification
American 13T
Trademark
JLB
Origin
China
Production Capacity
50000PCS/Month
After-sales Service:
1year
Condition:
New
Axle Number:
1
Application:
Trailer
Certification:
ASTM
Material:
Steel

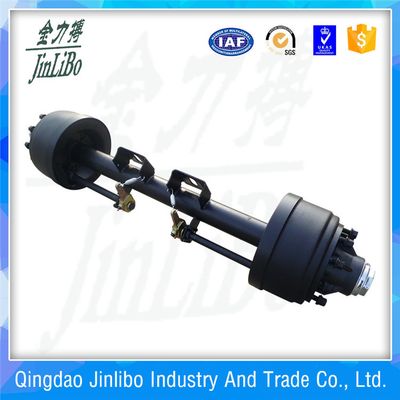

Product Features1. Special heat-treat, low-alloy steel axle beam, it has the vitues of good synthetic performanc, strong load ability and lower self weight.
2. High quality alloy solid inserted spindle, through wholy heat treatment, provide superior fatigue capability.
3. High performance premium non-asbestos brake linings, extend service life.
4. Easy for ABS installation
5. Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6. New tight fit hub cap have O rings, high property for sealing.
7. Grease lubrcant is supplied by Mobil that lengthens the time of free maintenance.
8. Full range of stud fixing such as ISO. BSF and JAP, it can meet the requirements of various wheel rims.
Scope of our business
1.axles (German type axle,English type axle,American type axle,Spoke axle,ZM axle,Agriculture axle,Half axle,Axle without brake)
2.Suspension (Bogie suspension,One point suspension,Rigid suspension,Spoke suspension,Machinery suspension)
3.Landing gear
4.Fifth wheel (2'' 3.5'')
5.King pin (2'' 3.5'')
6.Semi trailer
7.Other axles and related parts (Low bed axle,hub,rims,spring,drum...)
| American Outboarding Axle Specifications 13T | |||||||||||
| AXLE TYPE | BRAKE SIZE | WHEEL FIXING | NO.XSIZE OF WHEEL STUD (DIM A) | WHEEL REG.DIA.(DIM B) | DIM D | WHEEL RIM SIZE | BEAM SIZE | AXLE CAPACITY | SPRING SEAT INSTALLATION | TRACK LENGTH(DIM C) | WEIGHT |
| KMMR1318B | 420*180 | ISO | 10*M22*335 | 281 | 725 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | |||||||||||
| KMMR1320B | 420*200 | ISO | 10*M22*335 | 281 | 735 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 390KG |
| square 150 | |||||||||||
| KMMR1318C | 420*180 | ISO | 10*M22*285.75 | 221 | 725 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | |||||||||||
| KMMR1320C | 420*200 | ISO | 10*M22*285.75 | 221 | 735 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 390KG |
| square 150 | |||||||||||
| KMMR1318A | 420*180 | JAP | 10*M22*285.76 | 221 | 725 | 20´´ | round127x19 | 13T | ≤450 | 1840mm | 378KG |
| square 150 | |||||||||||
| KMMR1622E | 420*220 | ISO | 10*M20*335 | 281 | 738 | 20´´ | round127x19 | 16T | ≤450 | 1850mm | 440KG |
| square 150 | |||||||||||
