| Quality trailer axle semi trailer parts tandem axle |
| Inboard drum series trailer axle | ||||||||||||
| Axle Type | Max Capacity (T) | Track L2 (mm) | Brake (mm) | Spring Seat Installation | Axle Beam (mm) | Centre Distance Of Brake Chamber (mm) | Wheel Fixing | Total Length (mm) | Recommended Wheel | Axle Weight (kg) | ||
| Stud | P.C.D (mm) | H (mm) | ||||||||||
| HRD-UI08 | 8 | 1850 | 420*150 | ≥1080 | Round 127 | 428 | 10*M22*1.5 ISO | 335 | 280.8 | ~2145 | 7.5V-20 | 323 |
| HRD-U13I1 | 13 | 1840 | 420*180 | ≥970 | Round 127 | 388 | 10*M22*1.5 ISO | 285.75 | 220.8 | ~2180 | 7.5V-20 | 360 |
| HRD-U13I2 | 13 | 1840 | 420*180 | ≥970 | Round 127 | 382 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 342 |
| HRD-U13I3 | 13 | 1840 | 420*180 | ≥930 | Square 150 | 388 | 10*M22*1.5 ISO | 285.75 | 220.8 | ~2180 | 7.5V-20 | 358 |
| HRD-U13I4 | 13 | 1840 | 420*180 | ≥930 | Square 150 | 382 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 340 |
| HRD-U14I1 | 14 | 1840 | 420*220 | ≥930 | Square 150 | 342 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 358 |
| HRD-U15I1 | 15 | 1850 | 420*180 | ≥980 | Round 127 | 390 | 10*M22*1.5 ISO | 335 | 280.8 | ~2200 | 8.0V-20 | 344 |
| HRD-U15I2 | 15 | 1850 | 420*180 | ≥940 | Square 150 | 390 | 10*M22*1.5 ISO | 335 | 280.8 | ~2200 | 8.0V-20 | 370 |
| HRD-U16I1 | 16 | 1850 | 420*220 | ≥980 | Round 127 | 350 | 10*M22*1.5 ISO | 335 | 280.8 | ~2200 | 8.0V-20 | 362 |
| HRD-U16I2 | 16 | 1850 | 420*220 | ≥940 | Square 150 | 350 | 10*M22*1.5 ISO | 335 | 280.8 | ~2200 | 8.0V-20 | 388 |
| HRD-U20I1 | 20 | 1850 | 420*220 | ≥940 | Square 150 | 345 | 10*M24*1.5 ISO | 335 | 280.8 | ~2247 | 8.5V-20 | 430 |
| HRD-U25I1 | 25 | 1850 | 420*220 | ≥940 | Square 150 | 340 | 10*M24*1.5 ISO | 335 | 280.8 | ~2215 | 8.5V-20 | 474 |
| Outboard drum series trailer axle | ||||||||||||
| Axle Type | Max Capacity (T) | Track L2 (mm) | Brake (mm) | Spring Seat Installation | Axle Beam (mm) | Centre Distance Of Brake Chamber (mm) | Wheel Fixing | Total Length (mm) | Recommended Wheel | Axle Weight (kg) | ||
| Stud | P.C.D (mm) | H(mm) | ||||||||||
| HRD-U13O1 | 13 | 1840 | 420*180 | ≥970 | Round 127 | 392 | 10*M22*1.5 ISO | 285.75 | 220.8 | ~2180 | 7.5V-20 | 345 |
| HRD-U13O2 | 13 | 1840 | 420*180 | ≥970 | Round 127 | 388 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 363 |
| HRD-U13O3 | 13 | 1840 | 420*180 | ≥970 | Round 127 | 372 | 10*M22*1.5 ISO | 285.75 | 220.8 | ~2180 | 7.5V-20 | 348 |
| HRD-U13O4 | 13 | 1840 | 420*180 | ≥970 | Round 127 | 372 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 360 |
| HRD-U13O5 | 13 | 1840 | 420*180 | ≥970 | Square 127 | 392 | 10*M22*1.5 ISO | 285.75 | 220.8 | ~2180 | 7.5V-20 | 340 |
| HRD-U13O6 | 13 | 1840 | 420*180 | ≥970 | Square 127 | 388 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 358 |
| HRD-U13O7 | 13 | 1840 | 420*180 | ≥970 | Square 127 | 372 | 10*M22*1.5 ISO | 285.75 | 220.8 | ~2180 | 7.5V-20 | 343 |
| HRD-U13O8 | 13 | 1840 | 420*180 | ≥970 | Square 127 | 372 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 355 |
| HRD-U13O9 | 13 | 1840 | 420*180 | ≥930 | Square 150 | 392 | 10*M22*1.5 ISO | 285.75 | 220.8 | ~2180 | 7.5V-20 | 343 |
| HRD-U13O10 | 13 | 1840 | 420*180 | ≥930 | Square 150 | 388 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 361 |
| HRD-U13O11 | 13 | 1840 | 420*220 | ≥930 | Square 150 | 372 | 10*M22*1.5 ISO | 285.75 | 220.8 | ~2180 | 7.5V-20 | 346 |
| HRD-U13O12 | 13 | 1840 | 420*220 | ≥930 | Square 150 | 372 | 10*M22*1.5 ISO | 335 | 280.8 | ~2180 | 7.5V-20 | 358 |
| HRD-U13O13 | 13 | 1820 | 420*180 | ≥910 | Square 150 | 388 | 10*M22*1.5 ISO | 335 | 280.8 | ~2150 | 7.5V-20 | 340 |
| HRD-U15O1 | 15 | 1850 | 420*180 | ≥940 | Square 150 | 398 | 10*M22*1.5 ISO | 335 | 280.8 | ~2200 | 8.0V-20 | 385 |
| HRD-U16O1 | 16 | 1850 | 420*220 | ≥940 | Square 150 | 358 | 10*M22*1.5 ISO | 335 | 280.8 | ~2200 | 8.0V-20 | 405 |
Trailer parts trailer axle performance:
1. Integrated high quality low-alloy axle tube has strong carrying capacity and high bending strength.
2. The axle tube tempered as a whole and then quenching optimized which made by finishing high-precision machinery.
3. Environmentally friendly Non-asbestos brake shoe which increase the wearing life more than 25%.
4. Brake components have strong interchangeability, S-camshaft, so that have more flexible and reliable brake action.
5. Adopt Mobil XHP222 grease which has maintenance-free longer.
6. Adopt heavy-duty bearings which specially used for heavy vehicles have strong interchangeability.
7. The unique beauty with O-ring of the steel wheel cover has special good performance.
8. ABS optional.

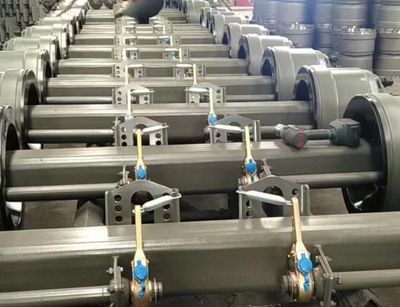

Trailer Axle Process Manufacturing
Shipping way: Air shipping, sea shipping and railway shipping.
Packing: anti-rust treatment, packed by pallet or in contactiner.
Jinan Hongruida Trailer Parts Co., Ltd. mainly produces semi trailer and its related accessories, including various types of American type trailer axle, concave axle, spoke axle, German type trailer axle, agricultural axle, American type suspension, single point suspension, rigid suspension, air suspension, landing gear, kingpin, air chamber, air reservoir, etc. Our sales network covers all regions of the world. Both new and old customers support customization.
Advanced processing technology, first-class production line, professional production quality, high-quality service concept, guarantee your trailer business brighter! The products are produced strictly in accordance with national implementation standards, with reasonable prices, and the cost performance ratio is far ahead in the industry, which is highly praised by customers!
Source strength manufacturers, welcome your inquiry!
Q1. What is your terms of packing?
A: Generally, we pack our goods with standard wooden box for outer package. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Which countries have been exported to?
A: Our trailer axles, suspension, landing gear, leaf spring have been exported to many countires, Russia, US, Indonesia, Japan, South Africa, Nigeria etc countries. Welcome your inquiry.
