Ce Standard Km Series Helical-Hypoid Geared Motor in Light Weight
Features:
1. 2-stage or 3-stage helical & hypoid bevel gear set, large reduction ratio
2. Hardened gears, higher gear hardness and strength than RV series worm gears. Wearable and long service life
3. Energy efficient. The efficiency is more than 90%. About 10%~40% efficiency difference compared with RV series worm gearbox
4. Modular design, various combinations
5. Mounting dimensions are compatible with RV series (Except KM050 and RV050)
6. High efficiency KM series can replace RV series in wide applications
| Rated Power | 0.12KW-5.5KW |
| Input Speed | 1400r/min |
| Output Speed | 4.7-187.0r/min |
| Ratio | 7.48-296.10 |
| Output Torque | 5.9-874N.m |
| Accessory | Torque arm |
| Housing | Cast iron, Aluminum alloys |
Main Materials
(1) Housing: die-cast aluminum alloy (frame size 27 to 57)
(2) Gear wheel: 20CrMnTiH1 carbonizing & quenching heat treatment make the hardness of gears surface be up to 56-62 HRC, and be retained carburization layers thickness between 0.3 and 0.5mm after precise grinding.
3. Surface Painting
Aluminum alloy housing:
(1) Shot blasting and special antiseptic treatment on the aluminum alloy surface.
(2) After phosphating, spray the RAL9022 silver white paint.
Models
Models | Stage | Nominal Ratio | Output Speed (n2)* | Max. Torque | Input Shaft Dia. | Output Hole Dia. | Output Shaft Dia. |
KM050 | 3 Stage | 50~300 | 4.8~27 | 130N.m | Φ11 | Φ20, Φ24 | Φ25 |
2 Stage | 7.5~60 | 24~181 | 130N.m | Φ11 | |||
KM063 | 3 Stage | 50~300 | 4.6~27 | 200N.m | Φ11 | Φ25, Φ28 | Φ25 |
2 Stage | 7.5~60 | 23~184 | 200N.m | Φ14 | |||
KM075 | 3 Stage | 50~300 | 4.7~28 | 350N.m | Φ14 | Φ28, Φ30, Φ35 | Φ28 |
2 Stage | 7.5~60 | 24~187 | 350N.m | Φ16 | |||
KM090 | 3 Stage | 50~300 | 4.7~28 | 500N.m | Φ14 | Φ35, Φ38 | Φ35 |
2 Stage | 7.5~60 | 24~187 | 500N.m | Φ19 | |||
KM110 | 3 Stage | 50~300 | 4.7~27 | 750N.m | Φ19 | Φ40, Φ42 | Φ42 |
2 Stage | 7.5~60 | 24~187 | 750N.m | Φ24 |
*Input Speed: n1=1400r/min

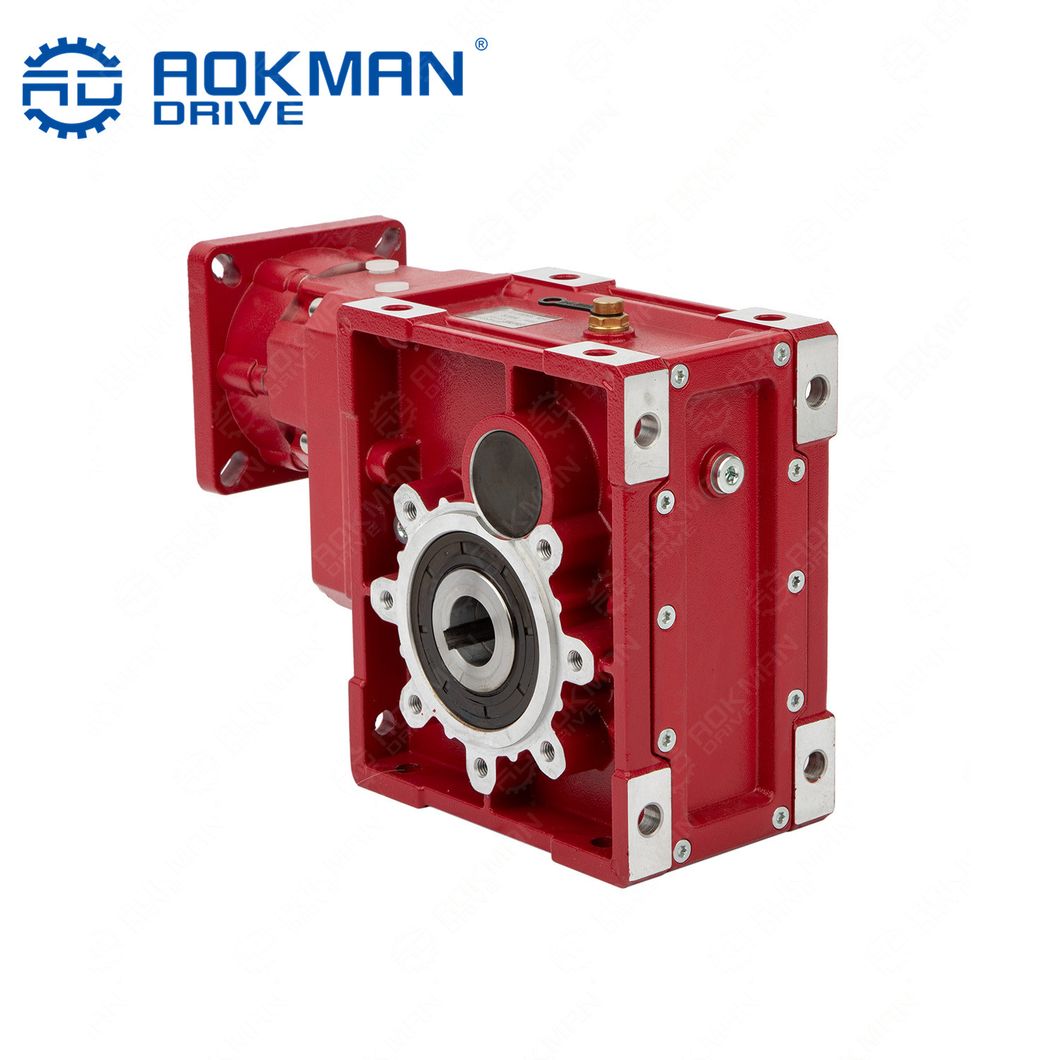

Product pictures:
