Model NO.
R30, R40, R50, R63, R75, R90, R110, R130, R150
Type
Helical Gear
Imput Power
0.12-160kw
Ratio
5-264(Max:13000)
Permitted Torque
130-18000n.M
Housing
Aluminum and Casting Iron
Gear Arrangement
Helical Worm Gearbox
Material
Cast Iron
Toothed Portion Shape
Bevel Wheel
Changes Way
Stepped
Manufacturing Method
Forging Gear
Transport Package
Wooden Case
Specification
ISO
Trademark
AOKMAN DRIVE
Origin
China
HS Code
8483409000
Production Capacity
6000PCS/Year
Application:
Machinery, Industry
Function:
Speed Changing, Speed Reduction
Layout:
Coaxial
Hardness:
Hardened Tooth Surface
Installation:
Horizontal Type
Step:
Double-Step

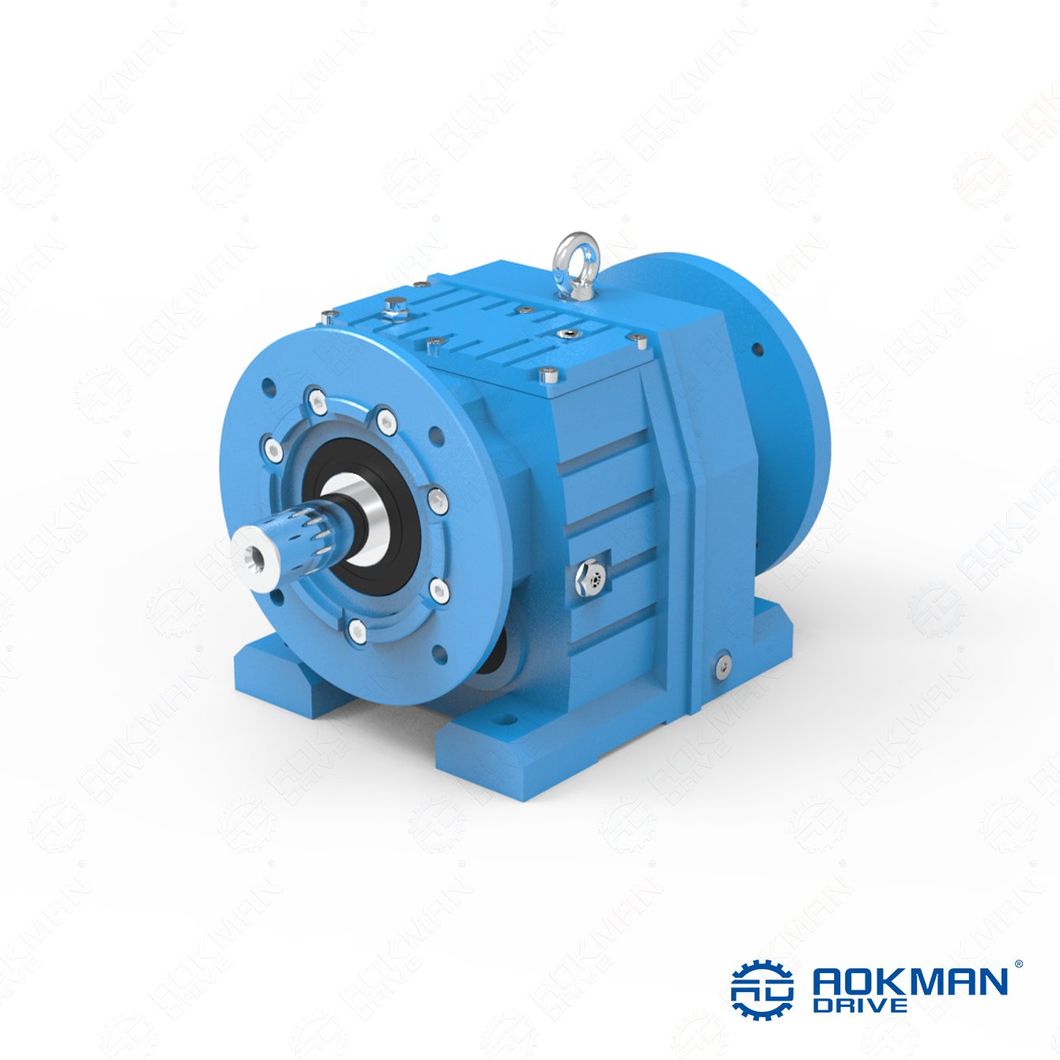

China Foot-mounted R Series Helical Gearbox With Long Service Life
R series Helical gear reducer1.Basic detail
| Processing Equipments | Nile, Niles, Okuma, Mitutoyo machine |
| Gear material | Low carbon high alloy steel |
| Heat treatment | Carburising, Quenching, Gear Grinding |
2.Package and delivery
Small size: Standard export packing (carton and pallet);
Big size: Non-wood packing material carton or fumigated wood carton
Delivery: About 23 working days after receiving the prepayment
3.R series helical gear reducer
1). High modularization design
2). Transmission ratio: Fine division, wide scope.
3). Form of installation: The position to be installed is not limited.
4). High strength, compact.
5). Long service life
6). Low noise
7)Wide application:
specialize in Metallurgy, Sewage treatment, Chemical Industry, Pharmacy, Agriculture equipment and Oil industry.
4. Mounting Type:
| R(-) | RF | RS | RFS | RM |
| Foot-mounted | Flange-mounted | Foot-mounted and Shaft In-put | Flange-mounted and shaft input | Specially for stirrer |
5.Our Services:
1). Pre-sale services
Act as a good adviser and assistant of clients enable them to get rich and generous return on their investments
a.Select equipment model.
b.Design and manufacture products according to clients' special requirement.
c. Train technical personal for clients
2). Services during the sale
a. Pre-check and accept products ahead of delivery.
b. Help clients to draft solving plans.
3). After-sale services
Provide considerate services to minimize clients' worries.
a. Assist clients to prepare for the first construction scheme.
b. Train the first-line operators.
c. Take initiative to eliminate the trouble rapidly.
d. Provide technical exchanging.
6.Parameter
2 stage
| Models | Output Shaft Dia. | Input Shaft Dia. | Power(kW) | Ratio | Max. Torque(Nm) |
| R/RF18 | 20mm | - | 0.18~0.75 | 3.83~74.84 | 85 |
| R/RF28 | 25mm | 16mm | 0.18~3 | 3.37~135.09 | 130 |
| R/RF38 | 25mm | 16mm | 0.18~3 | 3.41~134.82 | 200 |
| R/RF48 | 30mm | 19mm | 0.18~5.5 | 3.83~176.88 | 300 |
| R/RF58 | 35mm | 19mm | 0.18~7.5 | 4.39~186.89 | 450 |
| R/RF68 | 35mm | 19mm | 0.18~7.5 | 4.29~199.81 | 600 |
| R/RF78 | 40mm | 24mm | 0.18~11 | 5.21~195.24 | 820 |
| R/RF88 | 50mm | 28mm | 0.55~22 | 5.36~246.54 | 1550 |
| R/RF98 | 60mm | 38mm | 0.55~30 | 4.49~289.6 | 3000 |
| R/RF108 | 70mm | 42mm | 2.2~45 | 5.06~245.5 | 4300 |
| R/RF138 | 90mm | 55mm | 5.5~55 | 5.51~223.34 | 8000 |
| R/RF148 | 110mm | 55mm | 11~90 | 5.00~163.46 | 13000 |
| R/RF168 | 120mm | 70mm | 11~160 | 8.77~196.41 | 18000 |
1 stage
| Models | Output Shaft Dia. | Input Shaft Dia. | Power(kW) | Ratio | Max. Torque(Nm) |
| RX/RXF38 | 20mm | 16mm | 0.18~1.1 | 1.6~3.76 | 20 |
| RX/RXF58 | 20mm | 19mm | 0.18~5.5 | 1.3~5.5 | 70 |
| RX/RXF68 | 25mm | 19mm | 0.18~7.5 | 1.4~6.07 | 135 |
| RX/RXF78 | 30mm | 24mm | 1.1~11 | 1.42~5.63 | 215 |
| RX/RXF88 | 40mm | 28mm | 3~22 | 1.39~6.44 | 400 |
| RX/RXF98 | 50mm | 38mm | 5.5~30 | 1.42~5.82 | 600 |
| RX/RXF108 | 60mm | 42mm | 7.5~45 | 1.44~6.65 | 830 |
| RX/RXF128 | 75mm | 55mm | 7.5~90 | 1.56~6.47 | 11 |

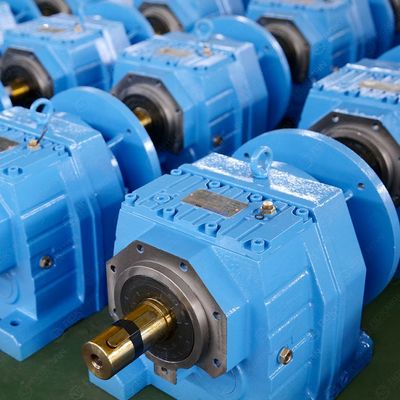

7.Product picture:
8.Product application :
9.Packing & Delivery:
10.Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.
11.Customer visiting:
12.FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
If you are interested in our product, welcome you contact me.
Our team will support any need you might have.
