Model NO.
P series gearbox
Type
Planetary Gear Box
Transport Package
Wooden Box
Specification
Customize
Trademark
no brand
Origin
China
HS Code
8501400000
Production Capacity
5000PCS/Week
Application:
Motor, Electric Cars, Motorcycle, Machinery, Marine, Agricultural Machinery, Car
Function:
Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
Layout:
Coaxial
Hardness:
Hardened Tooth Surface
Installation:
Horizontal Type
Step:
Steel

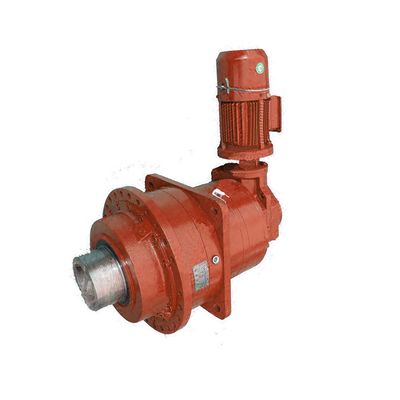

P series gearbox Customization output shaft diameter planetary gear box
Feature:
1.P series planetary gear reducer adopts new open line planetary gear transmission, which makes rational use of internal and external combination and power split. Therefore, it has the characteristics of light weight, small volume, large transmission ratio, high efficiency, smooth operation, low noise and strong adaptability.
2.The box body is made of nodular iron, which greatly improves the efficiency.The column property and anti-seismic property of the box body.
3.Programming mode: concentric shaft input, helical gear input, bevel gear helical gear input, bevel gear input
4.Output mode: inner flower field type, hollow shaft shrink disc type, outer flower field type, solid shaft flat field type
5.Installation form: horizontal installation, vertical installation and torsion installation.
6.P series products have 9-34 type specifications, planetary transmission stage has 2 and 3. The speed ratio is 254000. Modular design, according to customer requirements to change the combination.
7. Combinate with R ,K series can get larger speed ratio
Speed ratio range | basic type 25 ~ 4000 |
torque range | 2.6 ~ 900knm |
power range | 22 ~ 1920kw |

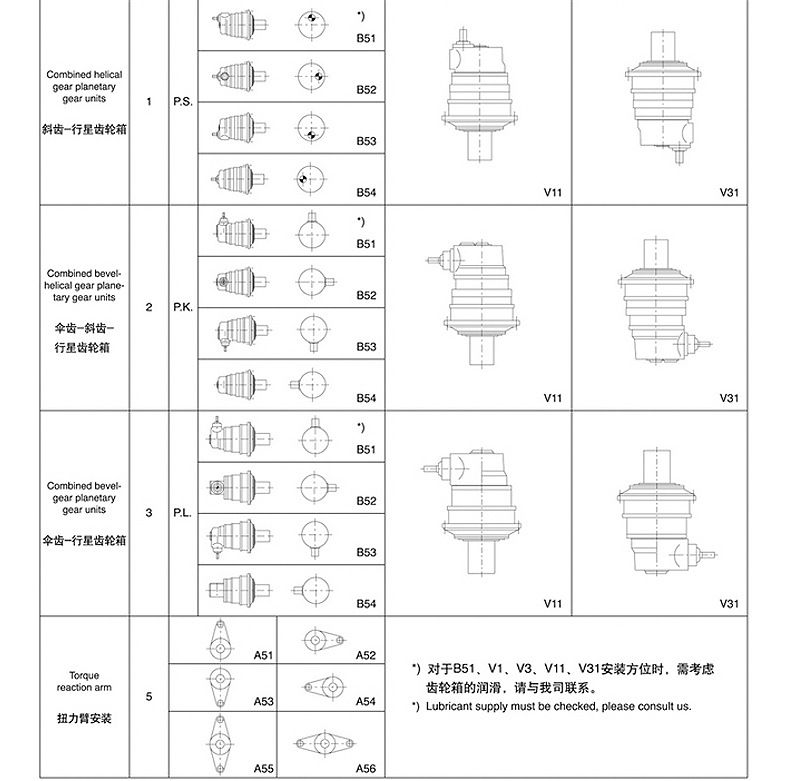

Installation form: | 1. Horizontal installation / foot installation 2. Vertical installation / flange installation 3. Torsion arm installation. |
Output mode | 1. Hollow output shaft with shrink disc 2. Solid output shaft with flat key 3. Hollow shaft with involute spline 4. Solid shaft with involute spline |
More mounting position and dimensions please click here to contact us.
