Model NO.
SMRV025-SMRV150
Customised
Spare Parts of Flanges, Shafts, etc
Warranty
One Year After Shipment
Material
Aluminum, Tin-Bronze, Cast Iron
Manipulate Way
Driven by Motors
Manufacturing Method
Rolling Gear
Toothed Portion Shape
Spiral
Changes Way
Gear
Transport Package
One PC / Carton Box, Then Wooden Pallet
Specification
ISO9001: 2008
Origin
Taizhou, Zhejiang
HS Code
8483409090
Production Capacity
30000 PCS Per Month
Application:
Industry
Hardness:
Hardened
Type:
Worm and Wormwheel
1.Motovario NMRV version conveyor deceleration gearboxes,marked as SMRV in our factory,available reduction ratios for single unit of SMRV130 cast iron conveyor motor reducer, are 1:7.5, 10 15 20 25 30 40 50 60 80,100;
2.This model is made to IEC standard specs. Customising is available for flanges,output shafts;
Besides this model,the other NMRV models are also produced in our factory;
3.Warranty: one year after shipment,on proper operation conditions;free technical support;
4.Outline dimensions of SMRV150,
5. Package.
Every unit is wrapped in plastic bag,then in carton box,and several carton boxes are packed in wooden pallet or to the buyer's requirements,which should be specified to us,when order is being confirmed.
6. Delivery methods,by sea,by air,or by DHL
7.Samples and payment,
Samples are charged and are supposed to be paid by the buyer,but it will be refundable by means of deduction from the payment of the order later.
Please contact me or more details and we are always ready to serve you well.
2.This model is made to IEC standard specs. Customising is available for flanges,output shafts;
Besides this model,the other NMRV models are also produced in our factory;
3.Warranty: one year after shipment,on proper operation conditions;free technical support;
4.Outline dimensions of SMRV150,

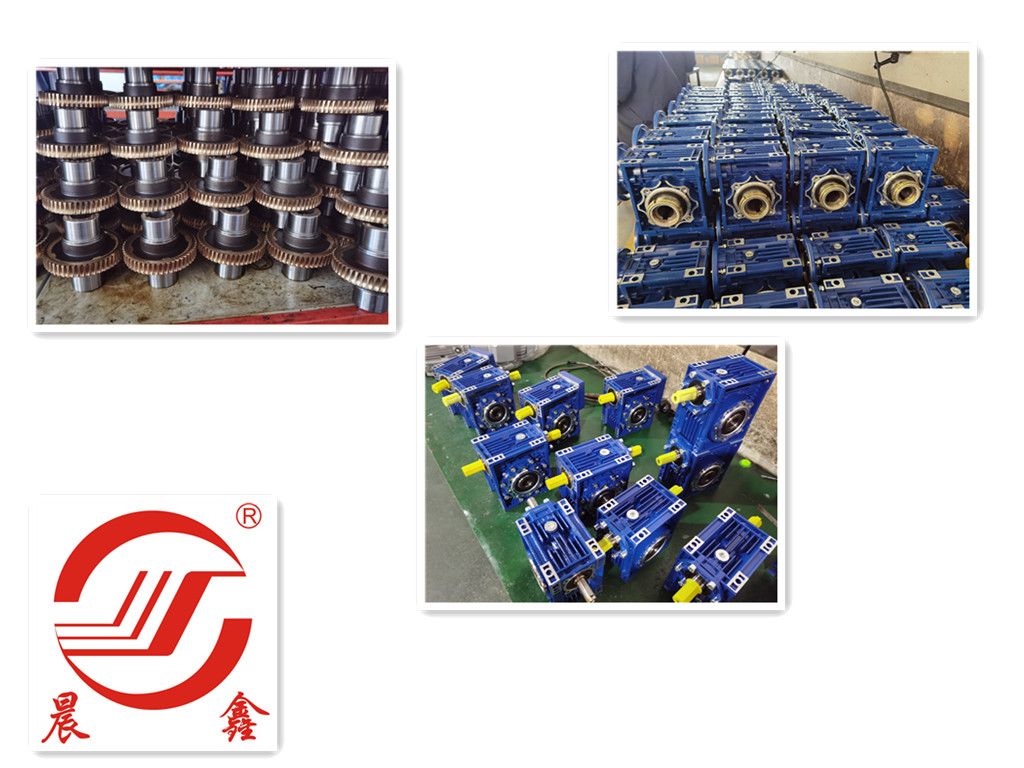

NMRV series worm gear reducer
1. Aluminum alloy housing, small size, light weight.
2. High transmission efficiency, low noise.
3.Smooth ruuning, high output torque and long service life.
4. Multiple connection structure and installation.
| TYPE | Worm Gear Speed Reducer / Worm Gearbox |
| NMRV MODEL | NMRV25, NMRV30, NMRV40, NMRV50, NMRV63, NMRV75, NMRV90, NMRV110, NMRV130, NMRV150 |
| NRV MODEL | NRV25, NRV30, NRV40, NRV50, NRV63, NRV75, NRV90, NRV110, NRV130, NRV150 |
| POWER | 0.12kw-15kw |
| RATIO | 1/7.5,1/10,1/15,1/20,1/15,1/30,1/40,1/50,1/60,1/80,1/100 |
| COLOR | Blue(RAL5010), Silver grey (RAL9022), or on request |
| MATERIAL | Housing/Flange:Aluminum Alloy |
| Worm Gear:Copper 9-4&nodular iron | |
| Worm:20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |
| Shaft:chromium steel-45# | |
| IEC FLANGE | IEC standard flange 56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON |
| LUBRICANT | Synthetic & Mineral |
5. Package.
Every unit is wrapped in plastic bag,then in carton box,and several carton boxes are packed in wooden pallet or to the buyer's requirements,which should be specified to us,when order is being confirmed.
6. Delivery methods,by sea,by air,or by DHL
7.Samples and payment,
Samples are charged and are supposed to be paid by the buyer,but it will be refundable by means of deduction from the payment of the order later.
Please contact me or more details and we are always ready to serve you well.
