Model NO.
SRC01-SRC04
Input Speed
1400rpm
Power
0.12kw-4kw
Output Torque
3-601 N.M
Model
Src01/Src02/Src03/Src04
Transmission
Helical
Reduction
Two-Staged
Warranty
One Year and Free Technical Support
Coupled Flange Type
B5 or B14
Customised
Available for Flange and Shaft
Foot Mounted
Available to Request
Material
Aluminium
Manipulate Way
Semi-Automatic Manipulation
Manufacturing Method
Rolling Gear
Toothed Portion Shape
Double Helical Gear
Changes Way
Mixed
Transport Package
1 Set / Carton, Several Cartons / Wooden Pallet
Specification
ISO9001
Trademark
Chenxin
Origin
Zhejiang Taizhou
HS Code
8483409090
Production Capacity
10000 Per/Month
Application:
Industry
Hardness:
Hardened
Type:
Non-Circular Gear

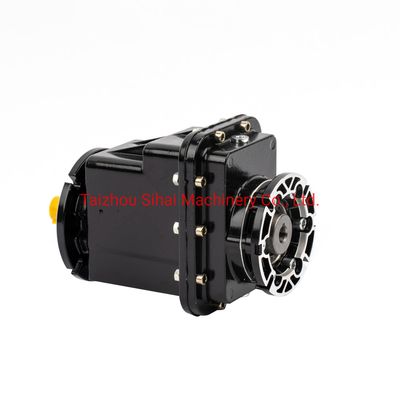

Features for SRC helical gearboxes reducers,
1.Larger output torque,stable transmission with lower noise,
2.Ommibearing installation available,
3.Aluminium alloy diecast,
4.Customising available for flange or shaft
Important information for SRC helical gear speed reducers,
1.Larger output torque,stable transmission with lower noise,
2.Ommibearing installation available,
3.Aluminium alloy diecast,
4.Customising available for flange or shaft
Important information for SRC helical gear speed reducers,
Input coupling | Flange and shaft |
| Output coupling | Flange and shaft |
| Foot mounted | Available for Motovario and Bonfiglioli foot mounted specs. The letter,B in the data sheet of foot code is for Bonfiglioli and M for Motovario |
| Range of reduction ratios | 3.74---51.30 |
| Motor power coupled | 0.12---4KW |
| Version | 1.Flange coupled,shaft output,with foot mounted,marked as SRC...P 2.Shaft coupled and output,with foot mounted,marked as SRC...HS 3.Flange coupled,shaft output,no foot mounted,marked as SRCZ...P 4.Shaft coupled and output,no foot mounted,marked as SRCZ...HS 5.Flange coupled and output,no foot mounted,marked as SRCF...P 6.Shaft coupled,flange output,no foot mounted,marked as SRCF...HS |
