Model NO.
S
Type
Worm and Wormwheel
Gear Arrangement
Helical Worm Gearbox
Rated Power
0.18kw~22kw
Rated Torque
90 to 4000n.M
Housing
Aluminum and Casting Iron
Ratio
5, 7.5, 10, ^100
Material
Cast Iron
Toothed Portion Shape
Bevel Wheel
Changes Way
Stepped
Manufacturing Method
Forging Gear
Transport Package
Wooden Case
Specification
ISO
Trademark
AOKMAN DRIVE
Origin
China
HS Code
8483409000
Production Capacity
5000PCS/Year
Application:
Motor, Industry
Function:
Speed Changing, Speed Reduction
Layout:
Right Angle
Hardness:
Hardened Tooth Surface
Installation:
Horizontal Type
Step:
Double-Step

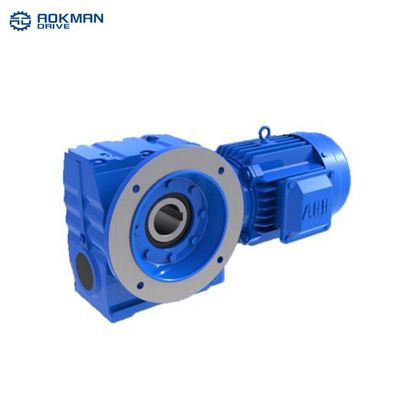

S Series Helical Worm Gearbox with Hollow Output Shaft
1. Product Characteristics:
S series helical worm gearbox adopts the helical worm gears to make its structure more reasonable. S series not only has higher transmission efficency and loading capability than those single-stage worm wheel transmission, but also smaller volume and appearance. Moreover, S series worm gearbox has higher transmission ratio, and can be combined with various gearboxes and speed variators to meet the different requirements.
2. Structure:
S series gearbox are available in the following designs:
(1) SY Foot mounted helical worm gearbox with solid shaft
(2) SAY Helical worm gearbox with hollow shaft
(3) SAZY Small flange mounted helical worm gearbox with hollow shaft
(4) SA (S,SF,SAF,SAZ)Y Assemble users' motor or special motor, flange is required
(5) SFY Flange mounted helical worm gearbox with solid shaft
(6) SAFY Flange mounted helical worm gearbox with hollow shaft
(7) SATY Torque arm mounted helical worm gearbox with hollow shaft
(8) S (SF,SA,SAF,SAZ) S Shaft input helical worm gearbox
(9) SA (S,SF,SAF,SAZ)RY Combined helical worm gearbox
(10) SA (S,SF,SAF,SAZ)SR Shaft input combined helical worm gearbox
3. Detailed parameters:
| Size | 38 | 48 | 58 | 68 | 78 | 88 | 98 |
| Structure | S SA SF SAF SAT SAZ | ||||||
| Input Power(KW) | 0.18-0.75 | 0.18-1.5 | 0.18-3 | 0.25-5.5 | 0.55-7.5 | 0.75-15 | 1.5-22 |
| Ratio | 10.27-152 | 11.46-244.74 | 10.78-196.21 | 11.55-227.20 | 9.96-241.09 | 11.83-222 | 12.75-230.48 |
| Maximum torque(N.m) | 90 | 170 | 295 | 520 | 1270 | 2280 | 4000 |
4.Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.
5. Technical Data:
Rated Power:0.18~22KW
Output Speed: 0.16~147r/min
Output Torque:90~4000N.m
Mounted Form:Foot-mounted, flange mounted, shaft-mounted, torque arm mounted
6.Product picture:
7.Our company :
AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts.
We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market.
AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services.
8.Customer visiting:
9.Our Services:
| Pre-sale services | 1. Select equipment model. |
| 2.Design and manufacture products according to clients' special requirement. | |
| 3.Train technical personal for clients | |
| Services during selling | 1.Pre-check and accept products ahead of delivery. |
| 2. Help clients to draft solving plans. | |
| After-sale services | 1.Assist clients to prepare for the first construction scheme. |
| 2. Train the first-line operators. | |
| 3.Take initiative to eliminate the trouble rapidly. | |
| 4. Provide technical exchanging. |
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set
