Model NO.
NMRV
Quantity Control
ISO 9001
Transport Package
Carton and Wood Pallet
Specification
CE
Trademark
CHENXIN
Origin
Zhejiang. China
HS Code
8483409090
Production Capacity
400, 000 PCS /Per Year
Motor Power:
0.06kw-15kw
Input Speed:
1400 Rpm or Other
Speed Ratio:
5 /7.5 /10 /15 /20 /25 /30 /40 /50/60 /80 /100
Output Torque:
2.6n.M-1195n.M
Motor Coupling:
Flange or Shaft
Color:
Blue,Silver or Customised
Features
1.Wide transmission rate, strong output torque
2.Compact mechanical structure, light weight, small volume&Good heat-dissipating
3.Smooth operation with lower noise or vibration
4.Easy mounting, free linking, high efficiency
5. PERFECT SUBSTITUDE FOR MOTOVARIO AND BONFIGLIOLI PRODUCTS
Applications
Wide range of application,including light industry of food &beverage, Cement,
package,construction material,chemicals and etc.

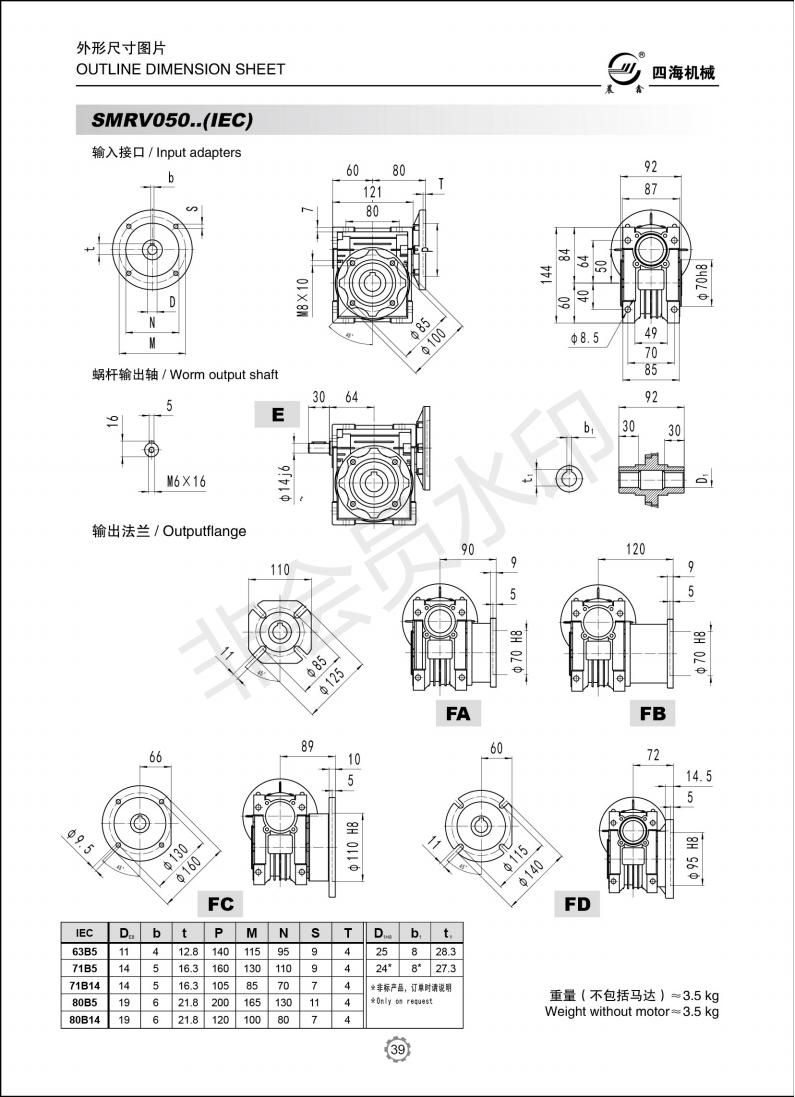

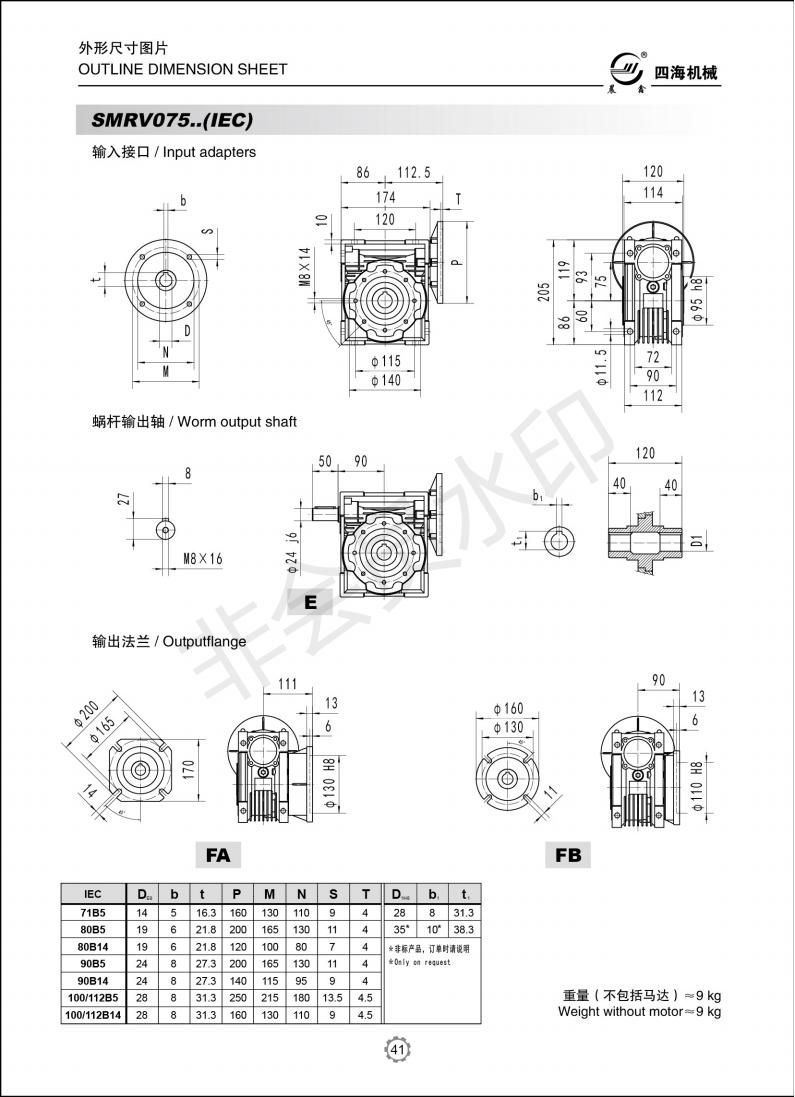

Technical data:
Model | RV025 030 040 050 063 075 090 110 130 150 |
| Single unit versions | NMRV - fitted for motor flanged coupling, NRV - with input shaft, NMRV-E motor flanged coupling with worm extension shaft, NRV-E with double extension worm shaft, |
Power | 0.06----15KW |
| Single unit reduction ratio | 1:5 7.5 10 15 20 25 30 40 50 60 80 100 |
| Output torque | 2.6---1195N.M |
| Worm shaft material | 20CrMnTi with carburizing and quenching.The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm |
| Worm wheel material | worm mandrel is HT250,and worm ring gear,ZQSn10-1,hardness is 60HRC |
After-sale service:
One year warranty,subject to proper operation and installation;free technical support all the time.
