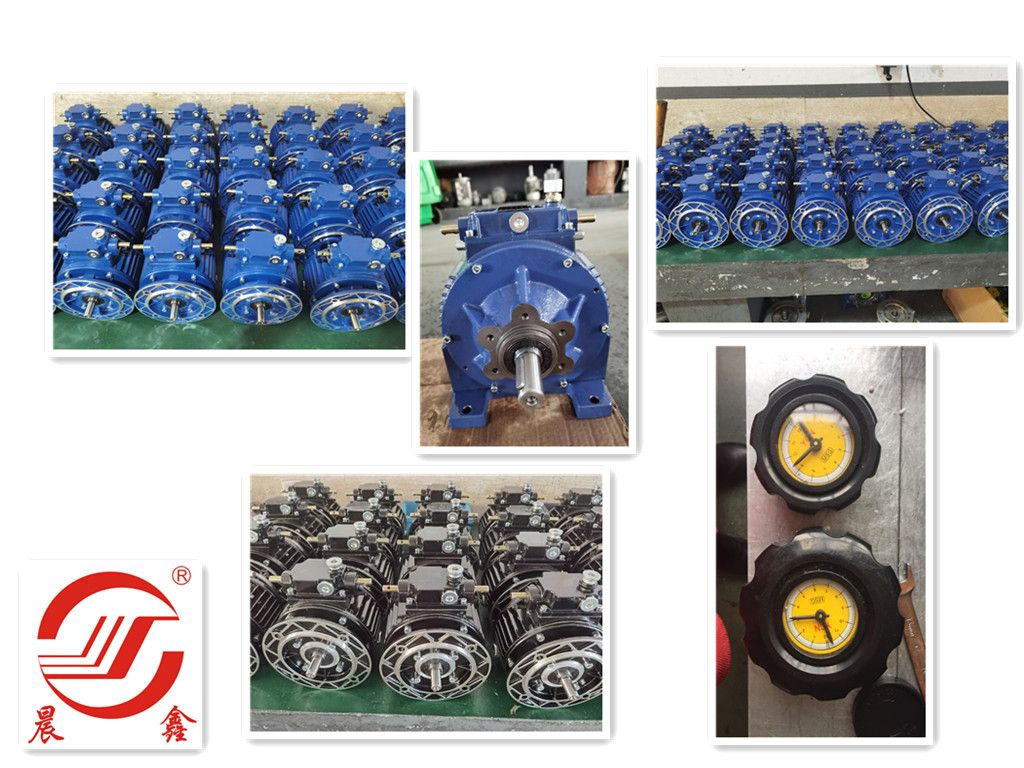

Model NO.
UDL0.18-UD1.5
Color
Blue/Silver White
Mounting
Foot Mounting/Flange Mounting
Bearing
Homemade Bearing/NSK Bearing
Oil Seal
Nak Oil Seal
Transport Package
1 Set / Carton, Several Cartons / Wooden Pallet
Specification
ISO9001
Trademark
Chenxin
Origin
Zhejiang Taizhou
HS Code
8483409000
Production Capacity
10000 Per/Month
Output Speed:
1000-200r/M
Input Speed:
1400rpm
Power:
1.1kw-7.5kw
1) High precision of speed regulating for speed variator,UD gear box: up to 0.5-1 round2) Large speed-changing range: the speed ratio ranges from 1:1.4 to 1:7 freely
3) High intensity and long serving time
4) Convenient to regulate speed
5) Continuously workable, bidirectional working direction,smooth running,
stable, and quiet
6) Fully sealed and suitable to any environment
7) Compact structure, small size
8) High quality aluminum alloy die-cast, elegant shape, light weight and non-rusting
9) Good adaptability: can be combined with all kinds of reducers to achieve low
stepless speed changing
10) Input power: 0.18-7.5kW
| Power | Model | I | n2(r/min) | M2(NM) |
| 0.18kw | UDL0.18 | 1.6-8.2 | 880-170 | 1.5~3 |
| 0.37kw | UDL0.37 | 1.4-7 | 1000-200 | 3~6 |
| 0.55kw | UDL0.55 | 1.4-7 | 1000-200 | 4~8 |
| 0.75kw | UDL0.75 | 1.4-7 | 1000-200 | 6~12 |
| 1.1kw | UD1.1 | 1.4-7 | 1000-200 | 9~18 |
| 1.5kw | UD1.5 | 1.4-7 | 1000-200 | 12~24 |
| 2.2kw | UD2.2 | 1.4-7 | 1000-200 | 18~36 |
| 3kw | UD3 | 1.4-7 | 1000-200 | 24~48 |
| 4kw | UD4 | 1.4-7 | 1000-200 | 32-64 |
