Model NO.
4X4 Winch PS9500
Working Voltage of Electric Winch
Low Voltage
Brand
Zhme
Applicable Environment
Swamp
Certification
CE
V
12V
Transport Package
Strong Carton Box, Optional Pallets
Specification
CE
Trademark
ZHME
Origin
Ningbo China
HS Code
84253190
Production Capacity
1000PCS/Month
Type:
Electric Winch
Power Type:
Series Motor DC
Pull Direction:
Forward
4X4 Winch PS9500
Specifications
Rated line pull: 9500 Lbs (4310kgs) single line.
Motor: Series wound 5.5 HP /4.1kw 12V DC 7.4 HP /5.4kw 24V DC
Gear Train: 3 stage planetary
Gear ratio: 218: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Battery: Recommended 650 CCA minimum for winching
Battery: 25mm2, 72(1.83m)

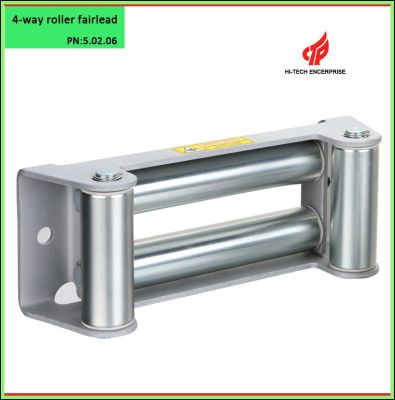

Fairlead: 4-way Roller fairlead
Wire rope: 5/16"× 92'( 8.3mm × 28m)

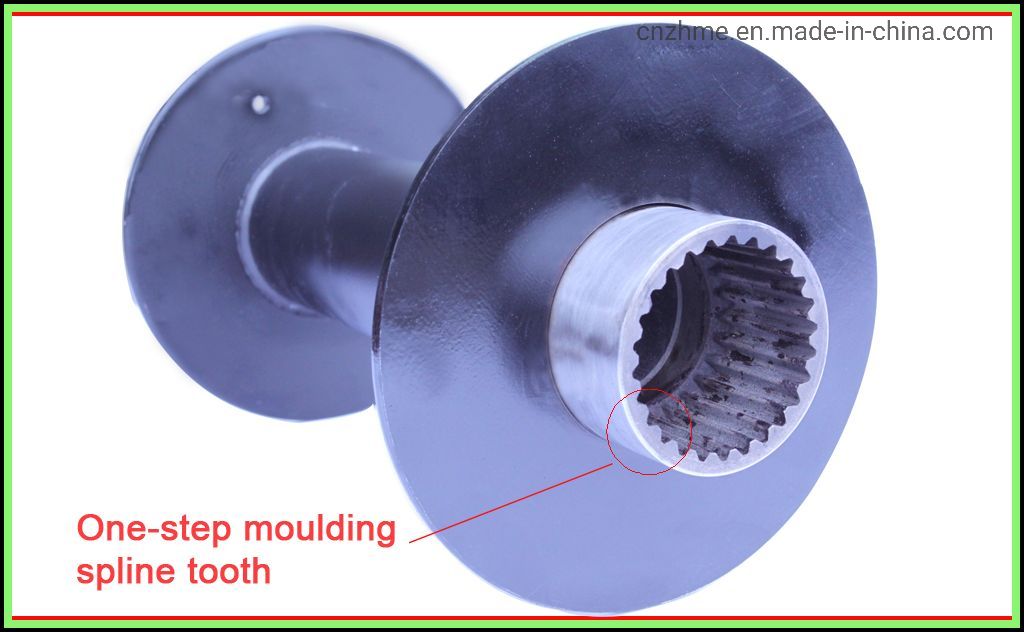

Drum size: 2.5"× 8.8"( 64mm× 226mm)

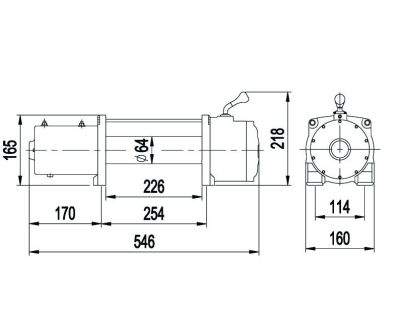

Dimensions: 21.5"× 6.3"× 8.6"( 548mm× 160mm× 218mm)
Mounting bolt pattern: 10"× 4.5"(254mm× 114.3mm)
N. W: 38 kg (84Lbs)
Packing: 620mmx360mmx260mm (420PCS per 20" container)
Specifications
Rated line pull: 9500 Lbs (4310kgs) single line.
Motor: Series wound 5.5 HP /4.1kw 12V DC 7.4 HP /5.4kw 24V DC
Gear Train: 3 stage planetary
Gear ratio: 218: 1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Battery: Recommended 650 CCA minimum for winching
Battery: 25mm2, 72(1.83m)
Fairlead: 4-way Roller fairlead
Wire rope: 5/16"× 92'( 8.3mm × 28m)
Drum size: 2.5"× 8.8"( 64mm× 226mm)
Dimensions: 21.5"× 6.3"× 8.6"( 548mm× 160mm× 218mm)
Mounting bolt pattern: 10"× 4.5"(254mm× 114.3mm)
N. W: 38 kg (84Lbs)
Packing: 620mmx360mmx260mm (420PCS per 20" container)
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 2000 | 4000 | 6000 | 9500 |
| Kgs | 0 | 907 | 1814 | 2722 | 4310 | |
| Line speed | FPM | 25.6 | 16 | 11.9 | 9.79 | 7.2 |
| MPM | 7.8 | 4.88 | 3.63 | 2.98 | 2.2 | |
| Motor current | Amps | 80 | 130 | 190 | 240 | 350 |
| Line pull and cable capacity | ||||||
| Layer of cable | 1 | 2 | 3 | 4 | ||
| Rated line pull per layer | Lbs | 9500 | 8000 | 7200 | 6600 | |
| Kgs | 4310 | 3629 | 3266 | 2994 | ||
| Cable capacity per layer | Ft. | 19.6 | 43 | 72 | 92 | |
| M | 6 | 13.2 | 22 | 28 | ||
