Model NO.
E9500S
Applicable Environment
Mountain Road
Certification
GS, CE
Name
Electric Winch
Rated Pull
9500lbs Winch
Motor
Winch Motor 6.0HP/4.4kw
Gear
Winch 3-Stage Planetary Gear 212:1
Brake
Winch Automatic Brake
Rope
Winch Synthetic Rope 9.5mmx26m
Certificate
CE, SGS
Waterproof
IP68
N.W.
39kgs/Winch
MOQ
30 Winches
Transport Package
Color Box
Specification
CE, SGS, ISO9001: 2008
Trademark
ZHME
Origin
Zhejiang, Ningbo
HS Code
84253190
Production Capacity
10000 Winch Per Month
Type:
Electric Winch
Power Type:
Series Motor DC
Pull Direction:
Forward
Electric Winch Model:
off-Road Winch
Working Voltage of Electric Winch:
Low Voltage
Brand:
Zhme

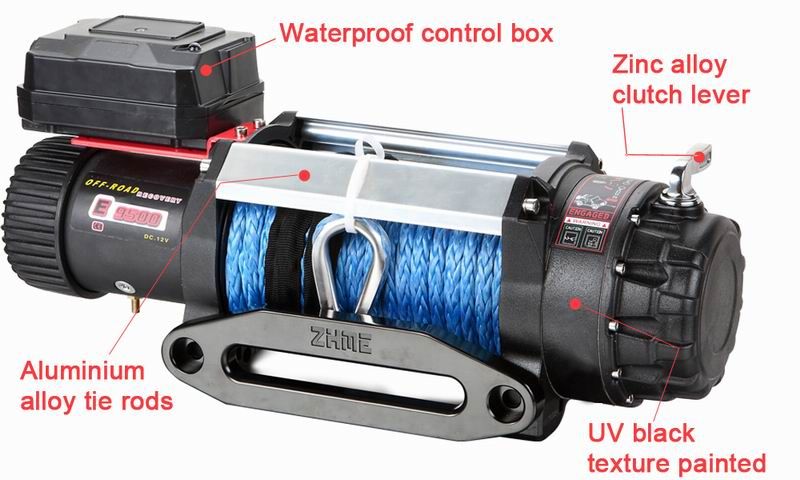

9500lbs electric winch with synthetic rope
Character:
Water proof IP68.
Luxurious appearance.
Super performance.
Fast pulling speed.
Large touque.
Low noise.
Safety working.
Character:
Water proof IP68.
Luxurious appearance.
Super performance.
Fast pulling speed.
Large touque.
Low noise.
Safety working.
Specifications | |
Rated Line Pull | 9500lbs(4310kgs) single line |
Motor | Series wound 6.0hp/4.4kw, 12V DC |
Gear Train | 3 stage planetary gear |
Gear Ratio | 212:1 |
Braking Action | Automatic in the drum |
Fairlead | Aluminum hawse fairlead |
Rope | Synthetic rope: Φ9.5mm X26m |
Drum size | 63mm x 224mm |
Dimensions | 552mm x 170mm x 214mm |
Mounting Bolt Pattern | 254mm×114.3mm |
N.W. | 86lbs(39kgs) |
