Model NO.
X9500S
Applicable Environment
Mountain Road
Certification
GS, CE, RoHS
Name
Electric Winch
Rated Line Pull
9500lbs Winch
Motor
6.0HP/4.4kw Series Wound Winch Motor
Gear
3-Stage Planetary Gear 212:1
Brake
Automatic
Rope
Synthetic Rope T9.5mmx26m
Waterproof
IP68
Transport Package
1 Set Per Carton, 15 Cartons Per Pallet
Specification
CE, SGS, ISO9001: 2008
Trademark
ZHME
Origin
Ningbo, China
HS Code
84253190
Production Capacity
10000 Winch Per Month
Type:
Electric Winch
Power Type:
Series Motor DC
Pull Direction:
Forward
Electric Winch Model:
off-Road Winch
Working Voltage of Electric Winch:
Low Voltage
Brand:
Zhme

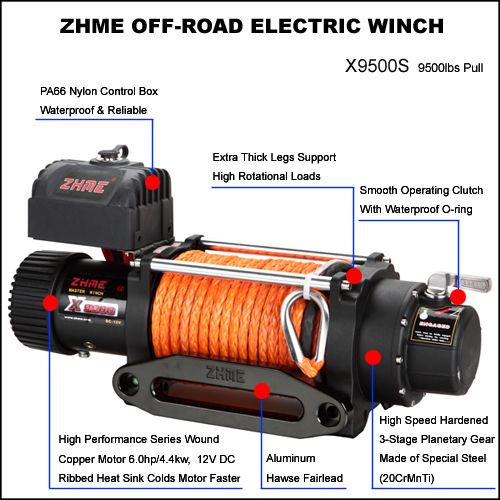

Features:
1.Waterproof IP68
2.Handle or wireless remote control
3.Automatic brake in the drum
4.Powerful winch motor(Series wound 6.0 hp /4.4kw,12V DC),fast line speed
5.Smooth hand clutch,simple and reliable operation
Specification:
| Specification | |
| Rated line pull: | 9500Lbs (4310kgs) single line |
| Motor: | Series wound 6.0 hp /4.4kw,12V DC |
| Gear Train: | 3 stage planetary |
| Gear ratio: | 216: 1 |
| Clutch: | Sliding Ring gear |
| Braking action: | Automatic in the drum |
| Fairlead: | Aluminum hawse fairlead |
| Synthetic rope: | 9.5mmX26m |
| Drum size: | 2.5"×9.0"(64mm×224mm) |
| Dimensions: | 23"×6.6"×8.4"( 552mm×168mm×214mm) |
| Mounting bolt pattern | 10"×4.5"(254mm×114.3mm) |
| Battery: | Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m) |
| N.W: | 75 lbs (34kgs) |
| Packing: | 680mmx360mmx260mm(per carton) 324pcs per 20' container |
| Line speed and motor current (first layer) | ||||||
| Line pull | Lbs | 0 | 2000 | 4000 | 8000 | 9500 |
| Kgs | 0 | 907 | 1814 | 3629 | 4310 | |
| Line speed | FPM | 35.4 | 17.1 | 13 | 8.01 | 7.2 |
| MPM | 10.8 | 5.2 | 3.98 | 2.44 | 2.2 | |
| Motor current | Amps | 80 | 140 | 200 | 310 | 350 |
| Line pull and cable capacity | |||||
| Layer of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | Lbs | 9500 | 8000 | 7200 | 6000 |
| Kgs | 4310 | 3629 | 3266 | 2994 | |
| Cable capacity per layer | Ft. | 19.6 | 43 | 72 | 92 |
| M | 6 | 13.2 | 22 | 28 | |
