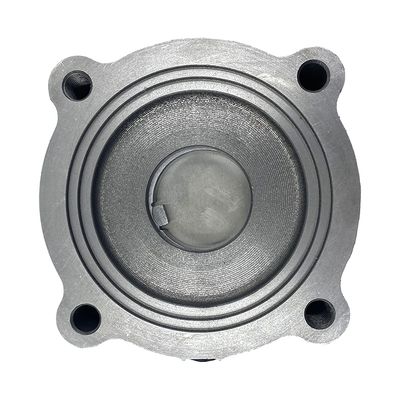

Wg2203240035 Oil Pump for Sinotruk HOWO Truck T5g T7h Gearbox Engine Spare Parts Oil Pump, Oil Pump, Oil Pump for Sinotruk

Product detail

Model NO.

WG2203240035

Wg2203240035

Car Model

Shipping

DHL UPS EMS FedEx

Transport Package

Carton Package

Specification

oem stand size

Trademark

CARRUCHI

Origin

Shandong, China

Production Capacity

1000000

After-sales Service:

3 Months

Warranty:

3 Months

Type:

Oil Pump

Material:

Steel

Muffler Type:

Center Muffler

Deck:

Single

WG2203240035 oil pump for SINOTRUK HOWO truck T5G T7H gearbox engine spare parts oil pump

The rotor type oil pump is compact in structure, small in size, light in weight, large in oil suction vacuum, large in oil pumping volume, good in oil supply uniformity, and low in cost. It is widely used in medium and small engines.

WG2203240035 oil pump for SINOTRUK HOWO truck T5G T7H gearbox engine spare parts oil pump

The rotor type oil pump is composed of a housing, an inner rotor, an outer rotor, a pump cover, etc. The inner rotor is fixed on the rotor shaft with a key or pin and driven directly or indirectly by the crankshaft gear. The eccentricity between the inner rotor and the outer rotor is e, and the inner rotor drives the outer rotor to rotate in the same direction.

Generally, the inner rotor of a rotor type oil pump has 4 or more convex teeth, and the number of concave teeth of the outer rotor is one more than the number of convex teeth of the inner rotor, so that the inner and outer rotors rotate asynchronously in the same direction.The profile shape curve of the rotor is hypocycloid.

The tooth profile of the rotor is designed so that when the rotor turns to any angle, the tooth profile lines of each tooth of the inner and outer rotors can always contact each other at points. In this way, four working cavities are formed between the inner and outer rotors. With the rotation of the rotor, the volume of these four working cavities is constantly changing. In the cavity at one side of the oil inlet passage, as the rotor disengages from the mesh, the volume gradually increases, generating vacuum, the oil is sucked in, the rotor continues to rotate, and the oil is brought to the side of the oil outlet passage. At this time, the rotor just enters the mesh, reducing the volume of this cavity, increasing the oil pressure, and the oil is squeezed out of the teeth and pressed out through the oil outlet passage. In this way, with the continuous rotation of the rotor, the oil will be constantly sucked in and pressed out.

WG2203240035 oil pump for SINOTRUK HOWO truck T5G T7H gearbox engine spare parts oil pump

item	value
OE NO.	WG2203240035
Place of Origin	China
	Shandong
Brand Name	HOWO
Material	cast iron
Type	HOWO
Size	Standard Size
Model Number	WG2203240035
Quality	High-Quality
MOQ	1 Pcs
WARRANTY	6 Months
PAYMENT	T/T
Key words	oil pump engine
PACKING	Carton
OEM	WG2203240035
WEIGHT	3 kg
NAME	oil pump
Delivery Period	3-7 Days

WG2203240035 oil pump for SINOTRUK HOWO truck T5G T7H gearbox engine spare parts oil pump

1.To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Details: Our packing uses export wooden cases, plastic boxes, cartons or pallets. All the package are very strong, the wooden box is firmly bound, the package is covered with a waterproof film to prevent water or damage during transportation.Before packing, we can also stick corresponding labels and shipping marks according to your needs. All our goods are well packed.

2. According to the quantity, we can use express delivery, air transportation or ocean transportation, automobile transportation, railway transportation, etc.

we have our own freight forwarders, and we can also use the designated freight forwarders of customers, which can meet various delivery requirements of customers, such as EXW, FOB, CIF, etc.It can also be exported from many ports in China. Such as Qingdao port, Ningbo port, Lianyungang port, Tianjin port, Suifenhe River and Alashankou in China.

3. We can also send the goods by express if the customers have less goods.
According to customer's request, we can use express.such as DHL, TNT, EMS, FedEx, etc. the delivery time is 3-7. Safe, fast and convenient. It's also a good choice for you.

Jinan carman International Trade Co., Ltd. was established in 2003. It has been engaged in the export of auto parts and construction machinery parts for 8 years. Our main business is to export truck parts and construction machinery parts to Russia,Europe and Southeast Asia, such as SINOTRUK, Shaanqi, Jiefang, XCMG, Shantui, JAC, Cummins, JCB, caterpillar, Isuzu,Yanmar, lgmg, DCEC The company has its own warehouse in Jinan, covering an area of 2000 square meters, and has a lot of inventory,and has the ability to quickly collect and deliver accessories. Warehouse inventory is huge, and many kinds, to meet your various needs.We always adhere to the quality of products as the core, to serve customers for the purpose. Hope to be able to better communicate with friends from all over the world.

Wg2203240035 Oil Pump for Sinotruk HOWO Truck T5g T7h Gearbox Engine Spare Parts Oil Pump

Carman International Trade Co, Ltd. Ia an import and export company that founded in 2013, setting up with the approval of Ministry of Commerce. Based on good faith and pursuit of mutual benefit, we supply Diesel engine spare parts for many domestic retailers and wholesalers, what's more, our products are sold well to Japan, Korean, Malaysia, Indonesia, Germany, Russian, Turkey,Iran,Brazil, Peru, as well as other countries in the Middle East, and Africa etc.The company has a number of diligent and advanced marketing and management experience of employees, for our customers to provide more professional, humane services.

At the same time, the company vigorously develop advantageous products, integration and optimization of sales channels, in order to ensure quality at the same time, but also for dealers to retain a more careful profit margins. The company has innovative sales concept, high standards of product quality management as the basis, market as a guide, customer satisfaction as the criterion, the implementation of standardized customer service, forming a unique culture of high-quality service, customer service will fully implement the "customer guide, service value-added" strategy, in line with people-oriented, abide by the credibility, brand management, quality first, user first principle, so that more customers enjoy intimate service.
