Model NO.
SC50 SC100 SC150 SC200 SC250 SC300
Lift Mechanism
Rack and Gear
Attendant
With Attendant
Deceleration Device
With Deceleration Device
Elevator Door
Straight Fractional Door
Product Name
Construction Elevator Building Lift Person Hoist
Cage
Double Cage(with Operation Cabin or No Cabin)
Cage Dimension
3*1.5*2.2m, 3*1.3*2.2m, 3.2*1.5*2.2m(Changeable )
Motor Power
2X11kw, 3X11kw, 2X15kw, 2X13kw, 3X15kw
Rated Lifting Speed
0-36m/Min, 0-45m/Min, 0-63m/Min
Mast Section Size
650X650X1508mm 450X450X1508mm
Mast Section Weight
145-180kg (Double Racks)
Wall-Tie Adjust Length&Qty
1.9-2.5m, 2.8-3.2m 1pieces/5 Mast (OEM)
Main Electrical System
Schneider(Can Be Equipped with PLC Fault Sensor )
Operation Method
Joystick, Auto Landing Screen, Remote
Power Supply
380V/50Hz, 440V/60Hz, 220V/60Hz 3phase
Max Erection Height
250m, 400m
OEM
Small / Big Rack and Pinion Hoist, Lift, Elevator
Certificate
ISO9001, ISO14001, CE, Eac, Cos
Installation Service
Site Training/Guide, Video Trainin/Guide, Manual
Transport Package
Container Seaworthy Packages
Specification
SC100, SC200, SC150, SC100Z, SC150Z, SC200Z
Trademark
XINGDOU
Origin
China
HS Code
8428200000
Production Capacity
3000sets / Year
Type:
Rack and Gear
Load Capacity:
1T - 2T
Speed:
40M/Min - 60M/Min
Usage:
Construction Hoist
Sling Type:
Cable
Lift Drive / Actuation:
Electric Motor
200M Highrise lifting SC200TD VFC Construction elevator building lift Passenger Hoist
A. MAIN PRODUCTS
Our main products series include:
*General Passenger materials hoist building lift Construction Elevator (inverter or PLC )
*OEM Mini hoist
*Material hoist
*Twin mast hoist
*Lean hoist
*Construction mast climber
*Transportation work platform
*Retractable loading platform
Common Contactor Control lifting machine Passenger hoist
| Specification | Type | Lifting Capacity | Lifting Speed | Max Height (m) | Drive Motor | Safety Device | Control system |
| Single cage | SC100 | 1000Kg | 33m/min | 150m | 2*11Kw | SAJ 30-1.2 | PLC & Contactor |
| SC150 | 1500Kg | 2×13Kw | SAJ 40-1.2 | ||||
| SC200 | 2000Kg | 3×11Kw | SAJ 40-1.2 | ||||
| Twin cages | SC100/100 | 1000Kg×2EA | 2×11Kw×2EA | SAJ 30-1.2 | |||
| SC150/150 | 1500Kg×2EA | 2×13Kw×2EA | SAJ 40-1.2 | ||||
| SC200/200 | 2000Kg×2EA | 3×11Kw×2EA | SAJ 40-1.2 |
Frequency Inverter control lifting machine Passenger hoist
| Product Type | Model | Lifting Speed(m/min) | Max Height(m) | Drive Unit | Safety Device | Control System | Start-up Work |
| Low Speed VFD | SC100/100L | 0-40 m/min | 250m | 2*11KW | SAJ40-1.2 | 30KW VFD | Varity speed from 0, Soft start and stop |
| SC150/150L | 0-40 m/min | 250m | 2*13KW | SAJ40-1.2 | 30KW VFD | ||
| SC200/200LA | 0-33 m/min | 250m | 2*13KW | SAJ40-1.2 | 30KW VFD | ||
| SC200/200LB | 0-40 m/min | 250m | 2*15KW | SAJ40-1.2 | 37KW VFD | ||
| SC200/200LC | 0-46 m/min | 250m | 3*11KW | SAJ40-1.2 | 37KW VFD | ||
| Mid Speed VFD | SC200/200MA | 0-54 m/min | 400m | 2*19KW | SAJ40-1.4 | 45KW VFD | |
| SC200/200MB | 0-60 m/min | 400m | 2*23KW | SAJ40-1.4 | 55KW VFD | ||
| SC200/200MC | 0-63 m/min | 400m | 3*15KW | SAJ50-1.4 | 55KW VFD | ||
| SC200/200MD | 0-72 m/min | 400m | 3*19KW | SAJ50-1.6 | 75KW VFD | ||
| High Speed VFD | SC200/200HA | 0-80 m/min | 400m | 3*23KW | SAJ50-1.6 | 75KW VFD | |
| SC200/200HB | 0-90 m/min | 400m | 3*26KW | SAJ50-2.0 | 90KW VFD | ||
| SC200/200HC | 0-100 m/min | 400m | 3*32KW | SAJ50-2.0 | 110KW VFD | ||
| SC200/200HD | 0-120 m/min | 400m | 3*19KW | SAJ50-2.4 | 135KW VFD |
Note:
*Soft start and stop with VFD control
*Starting current and voltage is ZERO, very very small, can protect the power web
*It can bear big voltage fluctuation for some power weak district
*Energy-saving:It will save power near 40% than PLC common hoist type
*It can protect the whole steel structure and wearing parts, extend the hoist and spare parts lifetime.
The small models which can be OEM as customer's project real situation, we make solution for all customers
TRUE VIEW FOR PRODUCTS
Cage & Mast Section design: Safe,Strong, steady, long service life
Other Main Parts: Use High quality parts only !
Chinese leading brand motor and gearbox (Nord/SEW for option), Schneider/Simens electric components.
B. SUCCESSFUL PROJECTS FOR CONSTRUCTION HOIST OVERSEA:
Our Construction elevator Passenger Hoist building lift have been exported to UAE, Saudi Arabia, Kuwait, Qatar, Russia, Kazakhstan, Mongolia, Korea, Philippines, Malaysia, Indonesia, Myammar, Thailand, Brazil, Barbados, Panama, Guatemala, Venezuela,Slovenia, UK, Denmark and so on.
C. OUR FACTORY & PRODUCTION:
Proffessional Manufacturer of Construction elevator building lift Passenger Hoist
1. -All Production Line of building Construction Elevator Passenger materials hoist adopt Large CNC machines, special fixture, mould, gauge made by us to ensure all detailed size.
2.- Select high quality raw material of cargo lifting machine Passenger Materials Hoist from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each building Construction materials Passenger elevator should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed cargo lifting machine Passenger Materials Hoist lift Building Construction Elevator run well when take into use.

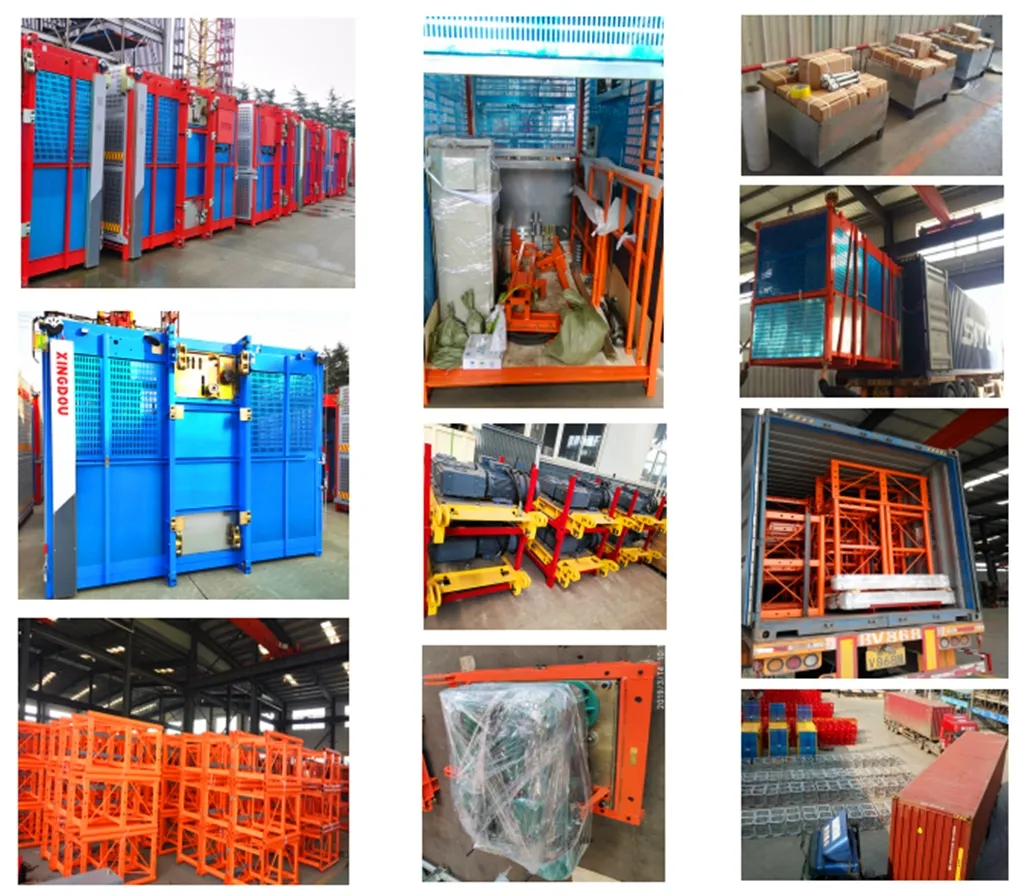

D. PRODUCTS READY FOR SHIPPING:
E. EXHIBITION AND CUSTOMER VISITING
XINGDOU , are focus on all kinds of construction elevator Passenger Materials Hoist building lift for Building, tower, bridge and elevator shaft with different loading capacity and variable speed for 15 Years.We are manufacturer, solution provider and industrial specialist !
We, XINGDOU, A Strong Action Team !
WE, XINGDOU, KEEP GOOD RELATIONSHIP WITH CUSTOMERS.
F. FAQ:
CE Approved Building cargo lifting machine Passenger Materials Hoist building lift Construction Elevator
1. What are your main products?
We produce all kinds of Construction elevator Passenger Hoist building lift from 500kg load to 3200kg load (also called construction elevator, construction lift) and spare parts of it.
2. Are all Construction Elevator the same from all Vendors & Manufacturers?
Our Passenger Materials Hoist building lift with VFD for lifting materials and passengers have exported to Europe, Middle and southern America, most of Asia, and some countries from Africa, about 50 countries. We can well match European standards, Russia standards and America standards. We have technology for develope new design ability and we support many customer with good solutions to solve their construction site special vertical access problems.
3. Do your products have some certificates?
Yes. Our Passenger Hoist have passed CE, EAC (Russia),ISO and SASO(Saudia) Certificates.
4. What are the payment terms and the delivery time?
Payment terms are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.
5. Are you manufacturer or the trader?
We are manufacturer of cargo lifting machine Passenger Materials Hoist building lift Construction Elevator with 15 years maker experiences, have advanced production line and inspection device. Our Research and development team have got many praise from customers.
6. Will you develop distributor and sole agent?
Yes, should you have any interest to be our cargo lifting machine Passenger Materials Hoist lift Building Construction Elevator distributor and agent, please let us know in any ways. Sole agent is available depend on the sales turnover.
7. Where do you ship to and what countries have you done business in?
We provide quick and efficient shipping of cargo lifting machine Passenger Materials Hoist building lift Construction Elevator to countries all over the world from Qingdao port or other China port.
We have done business of cargo lifting machine Passenger Materials Hoist with customers in many countries, such as Mexico, Brazil, Korea, Malaysia, Thailand, India, Vietnam, Indonesia, UAE, Qatar, Kuwait,Saudi Arabia etc.
8.Quotation request:
If you are interested in our cargo lifting machine Passenger Hoist, please provide the following parameters:
1) Lift height (m)
2) Load capacity (ton)
3) Double cage or single cage
4) Mast tower coat: Painting spray or hot galvanized?
5) Using temprature?
6) Local power supply (V, Hz)
7) Is there any space limited for your construction site? If yes, give us a brief drawing to show the space plz
8) Other special equipments.
9) FOB or CIF price? If CIF , plz let us know your destination port.
We will provide best price for Passenger Materials Hoist once confirmed the above. You can get our feedback within 12 hours !
Cage & Mast Section design: Safe,Strong, steady, long service life
Other Main Parts: Use High quality parts only !
Chinese leading brand motor and gearbox (Nord/SEW for option), Schneider/Simens electric components.
B. SUCCESSFUL PROJECTS FOR CONSTRUCTION HOIST OVERSEA:
Our Construction elevator Passenger Hoist building lift have been exported to UAE, Saudi Arabia, Kuwait, Qatar, Russia, Kazakhstan, Mongolia, Korea, Philippines, Malaysia, Indonesia, Myammar, Thailand, Brazil, Barbados, Panama, Guatemala, Venezuela,Slovenia, UK, Denmark and so on.
C. OUR FACTORY & PRODUCTION:
Proffessional Manufacturer of Construction elevator building lift Passenger Hoist
1. -All Production Line of building Construction Elevator Passenger materials hoist adopt Large CNC machines, special fixture, mould, gauge made by us to ensure all detailed size.
2.- Select high quality raw material of cargo lifting machine Passenger Materials Hoist from China Bao Steel Group, other like motors ,reducers, gearbox, safety device with low noise, electrics is schneider or Korea repute brand with reliable quality
3.- Special design,compact and reasonable structure,easy to installation and adjustment.
4.- Each building Construction materials Passenger elevator should be test and make record in Factory, all details will be adjust like motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section erection test to ensure the completed cargo lifting machine Passenger Materials Hoist lift Building Construction Elevator run well when take into use.
D. PRODUCTS READY FOR SHIPPING:
E. EXHIBITION AND CUSTOMER VISITING
XINGDOU , are focus on all kinds of construction elevator Passenger Materials Hoist building lift for Building, tower, bridge and elevator shaft with different loading capacity and variable speed for 15 Years.We are manufacturer, solution provider and industrial specialist !
We, XINGDOU, A Strong Action Team !
WE, XINGDOU, KEEP GOOD RELATIONSHIP WITH CUSTOMERS.
F. FAQ:
CE Approved Building cargo lifting machine Passenger Materials Hoist building lift Construction Elevator
1. What are your main products?
We produce all kinds of Construction elevator Passenger Hoist building lift from 500kg load to 3200kg load (also called construction elevator, construction lift) and spare parts of it.
2. Are all Construction Elevator the same from all Vendors & Manufacturers?
Our Passenger Materials Hoist building lift with VFD for lifting materials and passengers have exported to Europe, Middle and southern America, most of Asia, and some countries from Africa, about 50 countries. We can well match European standards, Russia standards and America standards. We have technology for develope new design ability and we support many customer with good solutions to solve their construction site special vertical access problems.
3. Do your products have some certificates?
Yes. Our Passenger Hoist have passed CE, EAC (Russia),ISO and SASO(Saudia) Certificates.
4. What are the payment terms and the delivery time?
Payment terms are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.
5. Are you manufacturer or the trader?
We are manufacturer of cargo lifting machine Passenger Materials Hoist building lift Construction Elevator with 15 years maker experiences, have advanced production line and inspection device. Our Research and development team have got many praise from customers.
6. Will you develop distributor and sole agent?
Yes, should you have any interest to be our cargo lifting machine Passenger Materials Hoist lift Building Construction Elevator distributor and agent, please let us know in any ways. Sole agent is available depend on the sales turnover.
7. Where do you ship to and what countries have you done business in?
We provide quick and efficient shipping of cargo lifting machine Passenger Materials Hoist building lift Construction Elevator to countries all over the world from Qingdao port or other China port.
We have done business of cargo lifting machine Passenger Materials Hoist with customers in many countries, such as Mexico, Brazil, Korea, Malaysia, Thailand, India, Vietnam, Indonesia, UAE, Qatar, Kuwait,Saudi Arabia etc.
8.Quotation request:
If you are interested in our cargo lifting machine Passenger Hoist, please provide the following parameters:
1) Lift height (m)
2) Load capacity (ton)
3) Double cage or single cage
4) Mast tower coat: Painting spray or hot galvanized?
5) Using temprature?
6) Local power supply (V, Hz)
7) Is there any space limited for your construction site? If yes, give us a brief drawing to show the space plz
8) Other special equipments.
9) FOB or CIF price? If CIF , plz let us know your destination port.
We will provide best price for Passenger Materials Hoist once confirmed the above. You can get our feedback within 12 hours !
