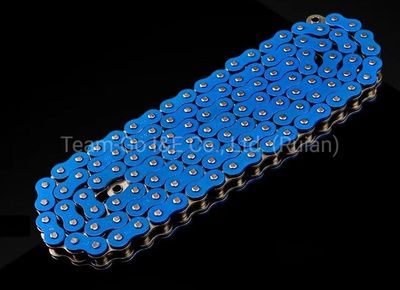

Motorcycle chain is made of excellent steel such as 40Mn, 30CrMnTi and 20Mn. After stamping, cutting, rolling, cold heading and other processes with high precision machinery and equipment, the parts are processed and strengthened by isothermal carbonitriding heat treatment and then treated with rust prevention. Finally, the chain is assembled, riveted, pre-drawn and inspected by the automatic assembly and inspection line imported from Taiwan to ensure the qualified performance of each chain.
Motorcycle sprocket is made of 20CrMnTi, 1045 and other high quality steel. After high precision stamping, leveling, turning, milling and other processes, sprocket are strengthened by high temperature quenching process, and then electroplating, spraying and other surface treatment after shot blasting.
| Chain No. | Pitch | Bush Type | Width | Pin Diameter | Pin Length | Roller Diameter | Plates Thickness Inner | Plates Thickness Outer | Tensile | Weight |
| MM | Curled | MM | MM | MM | MM | MM | MM | KN | KG/M | |
| 420 | 12.700 | Curled | 6.35 | 3.96 | 14.7 | 7.77 | 1.50 | 1.50 | 16.0 | 0.55 |
| 428 | 12.700 | Curled | 7.75 | 4.45 | 16.7 | 8.51 | 1.60 | 1.60 | 17.8 | 0.71 |
| 520 | 15.875 | Curled | 6.35 | 5.08 | 17.5 | 10.14 | 2.03 | 2.03 | 26.5 | 0.89 |
| 525 | 15.875 | Curled | 7.94 | 5.08 | 19.4 | 10.14 | 2.03 | 2.03 | 26.5 | 0.93 |
| 530 | 15.875 | Curled | 9.53 | 5.08 | 20.7 | 10.14 | 2.03 | 2.03 | 26.5 | 1.09 |
| 630 | 19.050 | Curled | 9.50 | 5.94 | 22.7 | 11.91 | 2.40 | 2.40 | 35.0 | 1.50 |
| BRAZIL | AX100, BIZ125, BIZ98/00, C70, C90, C100, CB250, CB400, CBR450, CBX150, CBX200, CBX250, CD100, CG125, CG150, CRYPTON, DREAM, DS80, DT100, DT125, DT200, FAN125, FD115, FR80, FS80, G7S/KW100, HUNTER125, JOG CY50, KMX125/KTZ, LB80, MAX125, MB100, NX150, NXR150, POP100, RD125, RD135, RDZ125, RDZ135, RX100, RX100/125, RX115/135, TITAN150, TITAN2000, TS100ER, TSZCN125, V80, WEB NEW, XL125, XL185, XLR125, XR200, XR200R, XR250, XRE300, XTZ125 06/07, YER115, YER125, YES125 |
| ARGENTINA | AX100, AXIS90, C70, C90, C100, C110, CB250, CBX150, CBX200, CD110, CG125 TODAY, CRYPTON, DAELTM, DAX70, DT125, ECONO C90 LUXE, ELITE50, GY6-50, GY6-60, GY6-80, GY6-100, GY6-125, GY6-150, MAX100, NXR125, NX150, RX100, SMASH, STROM125, TITAN150, TITAN99, TITAN2000, YBR125, V80, WAVE110, XLR125, XR200R, XR250, ZANELLA200 |
| COLUMBIA | ACTIVE110, AKT110, AK125, AKT125, AX100, AX125, AXIS90, BIZ, BOXER CT100, BWS125, C50, C70/CD70/JH70, C90/CD90/JH90, C100, C110, CB150, CBF150, CD100, CG125, CG150, CG200, CICLON125, CRYPTON, CT100, CRUX, DISCOVER100, DISCOVER135, DT125, DT125K, ECO, EM125, EN125, FD115, FR50, FR80, FXD125, GN125, GN125H, GRAND, GS125, GSD-16LIBERO, GSX, GY6-150, GY6-200, HERO, JD100, JL110MIX, KW100, LB80, MT90/V50, PULSAR, RX100,RX115, RX125, RX135, SMASH110, SRZ150, TIGER, TITAN99, TITAN150, TR125, TS/CN125, TS/CR125, V50, V80, WY147, XF90, XF125, XL125, XL185, XR200, YBR125 |
| AFRICA | AG100, AP125-9G, AP150, A100, AX100, BAJ100, BAJ205, BAJ3W, BS125, C50, C75, CB110, CB125, CB150, CD100, CD110, CG125, CG150, CG200, CT100, DT125, FR80, GK125, JH70, K90, KYMCO, MB100, QLINK, RC100, RE205, RX115, RX125, RX135, RZ100, V50, V80, SY125, TVS125, TVS160, YB100 |
| INDIA | ACTIVA, APACHE, BAJAJ CT100DLX, BAJAJ DISCOVER, BAJAJ PULSAR, CBZ STAR, CD100, CD-CLEL AX, CRUX, CT100, DASHAION NEW MODEL, DISCOVER135, ENT, EWIRE, FIERO F2, KB-4S, KRZIMA-R, LIBG-5, NXV, PASHAION, PLATINA100, PLATINA150, PULSAR, R15, SCOOTY PEP, SPLANDER, STAR, SYARCTS, SUPEX SPLINDG, TVS GLX, TVS VICTOR, VICTOR, VLAMEAR, XCD125, XLS |
| PHILIPPINES | AURA110, B120, BARAKO, C100, C70DD, CG125, CRYPTON, CRYPTON-Z/X1, DT125, G7S, HAWK1 50-2, HD3, MIO, MSX125S/ZESTX110-1, RAIDER150, RS100, SAP110/MSX125-1, SHOGUN PRO, SHOGUN/SHOGUN125, SMASH, STAR-X 125, STAR-X 150/155(ZS), STAR-X 155(JL), STX125, TM110S, WAVE 100R, WAVE110, WAVE125, WELL 125R, WIND125, X-120, X4/GP125, X-PLORER-Z 200 NEW, XRM, YL2 DX, YL2GF, ZEST X110-2/WELL 125S |
| INDONESIA | ABSOLUTE REVO, ALFA/FORCE-1, ASTREA/CBDDA, BEAT, BLADE, C7000, C7OMK 7 LINES, CB100, CG125, FR80, GL100, GLK, GLPRO, GL PRO CDI, GLPRO NEOTECH, GRAND, JUPITER-Z, KARISMA, KAZE, L2SN, MEGA PRO NEW 2007, MIO SOUL, MIO/JUPITER MX, NINJA, PRIMA, PX150, RC110, RC80, REVO, RG110, RX100, RXK NEW 2003, RXK/RXK NEW, RXS/RXKING |
| MIDDLE EAST | AN125, AN150, BAJAJ150, BWS50, BWS100, CG250, CB250, CB150, DIO50 ZX, DT125, GS50,GY6, JH70, JOG50, JOG70, KAB, KS4, KVB110,L110 A, MIO125, MIO150 2V, MIO150 4V, RE205, RX135, SYM125, SYM150, UZ125, UZ/V125, VINO 50,WH100, WH125, YP250, ZY100, ZY125 |
| TURKEY | ACTIVA, AN125, C110, CD70, CD100, CD110, CM125, CUB, CUB LIF3VALF, CUB110, CG125, CG150, CG200, CG250, SCT125, SCT150, CBF125, CBF150, GY6, FIZY, SPACY, WH100, WH125, WAVE110, YBR125 |
| MALAYSIA | C70, C70Z, EG110, EX5, EX5 CLASS, FR80, GBO, GBO-J, KISS II, KR150, KRISS, LC35, MZ125, RC110/RG110, RC80, RXS, RXZ, SRL110, TZM150, WAVE 100, WAVE 125, Y 100/Y110, Y 125Z, Y80 |
| THAILAND | A100SR, AX100, BEAT, BEST, C50K2, C70, DASH, DREAM, DT125, FR8ON, JR120, JUXEDO, KAZE, KR150-6, KS150-4/SERPICO, LS125, MIO, NOVAS, RC100/RC80, RXS, SMASH, SONIC, TENA, VR150, WAVE110, WAVE125, Y100, Y80M |
Team-Go I&E Co., Ltd.(Ruian) is a professional company which integrates manufacturing, trading and supplying in a line. Team-Go is formerly knows as LZNF which is established in 1996, the main business is export, import and domestic trade of auto accessories part, food production and related services. It was also certified by ISO9001:2000 Quality Management System.
Team-Go is an outstanding manufacturer and exporter with a long historical standing, high specialized and strong technical force. We also have strong ability to develop new products according to customer's sample or drawing. Now our products enjoy good popularity in many markets, such as South America, Asian African and so on.
Our company adherence to the principle "People oriented, Customers-centered, Intergrity insisted, Performance regarded". To achieve the goal of win-win, we will do our best to save time, reduce space and win market for our clients. We expect that our rich resources and excellent services will meet your high requirements.
Trusting us and choosing us will be your most correct choice you have ever made!
