RACERMAX Material Lifts Pallet Lifts Warehouse Lift Platform Goods Lift
1. PRODUCT DESCRIPTIONThe goods elevator is designed as a two or multi-column elevator. It is fixed either to a
storage platform or steel structure from our wide accessory segment.
* Up to 8,000 lbs Capacity
* Carriage sizes up to 12' x 10'
* Up to 22′ vertical rise
* Indoor or outdoor models
* Lifetime structural warranty
* Control panel remotely mounted

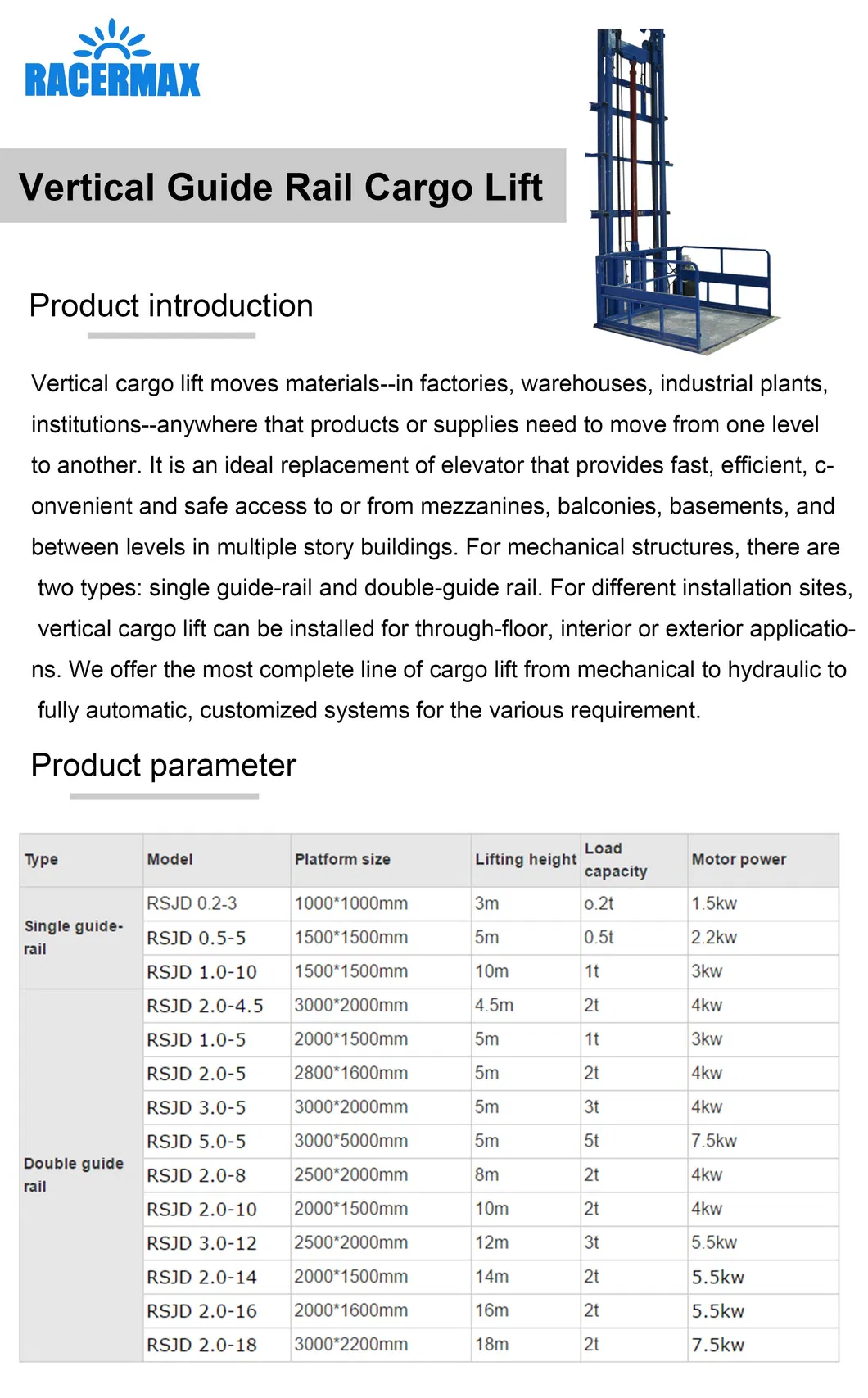

2.SPECIFICATIONS
* The dimension is customized, Below regular dimension FYI only.
| Type | Model | Platform size | Lifting height | Load capacity | Motor power |
| Single guide-rail | RSJD 0.2-3 | 1000*1000mm | 3m | o.2t | 1.5kw |
| RSJD 0.5-5 | 1500*1500mm | 5m | 0.5t | 2.2kw | |
| RSJD 1.0-10 | 1500*1500mm | 10m | 1t | 3kw | |
| Double guide rail | RSJD 2.0-4.5 | 3000*2000mm | 4.5m | 2t | 4kw |
| RSJD 1.0-5 | 2000*1500mm | 5m | 1t | 3kw | |
| RSJD 2.0-5 | 2800*1600mm | 5m | 2t | 4kw | |
| RSJD 3.0-5 | 3000*2000mm | 5m | 3t | 4kw | |
| RSJD 5.0-5 | 3000*5000mm | 5m | 5t | 7.5kw | |
| RSJD 2.0-8 | 2500*2000mm | 8m | 2t | 4kw | |
| RSJD 2.0-10 | 2000*1500mm | 10m | 2t | 4kw | |
| RSJD 3.0-12 | 2500*2000mm | 12m | 3t | 5.5kw | |
| RSJD 2.0-14 | 2000*1500mm | 14m | 2t | 5.5kw | |
| RSJD 2.0-16 | 2000*1600mm | 16m | 2t | 5.5kw | |
| RSJD 2.0-18 | 3000*2200mm | 18m | 2t | 7.5kw |
3. PRODUCT FEATURES
5. Application &PACKAGING & SHIPPING
* Package: Wooden case Package or as required
Application lift: Widely used -in factories, warehouses, industrial plants, institutions-anywhere that products or supplies need to move from one level to another. Electric lift provides fast, efficient,convenient and safe access to mezzanines, balconies, basements, and any levels in multistoried building. It can be installed indoor and outdoor applications.
