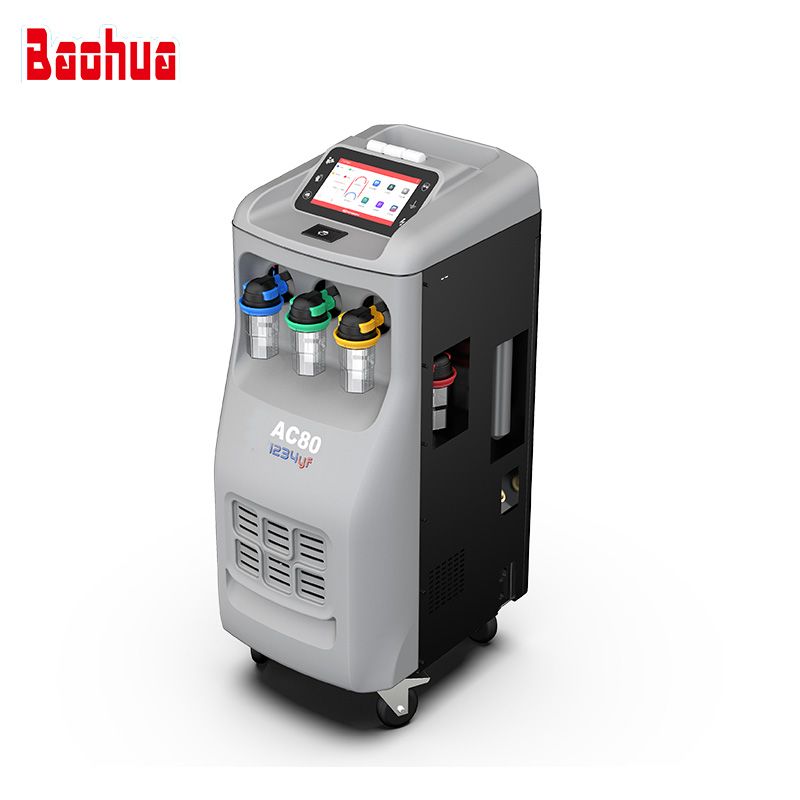

Model NO.
AC80
After-sales Service:
Lifetime After-Sales Service
Warranty:
1 Year
Specification:
1150mm (height) *740mm (depth) *550mm (width)
Trademark:
BH
Origin:
China
Product Description
Features
1. Automatically realize the recovery, vacuuming and filling of 1234yf refrigerant;

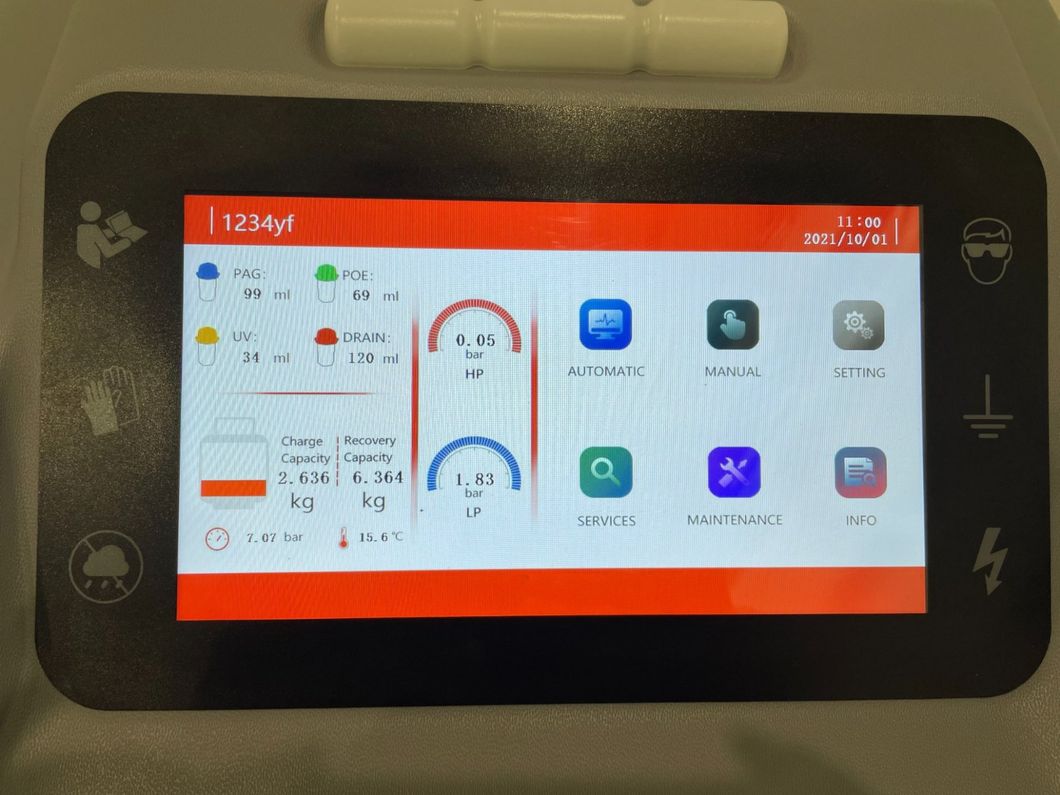

2. 10-inch touch screen configuration, full digital display and control, operation steps are prompted one by one;
3. Equipped with 5 high-precision electronic scales to realize accurate filling and weighing of refrigerant, PAG, POE, UV, and waste oil;
4. Upgrade the deep recovery function to increase the recovery efficiency to more than 95%;
5. Three refilling methods can be selected from HP/LP/HP+LP;
6. Built-in 20,000+ model refrigerant database, which can be added and edited as needed;
7. Configure the printer to print out the repair data, license plate information, and repair shop information as needed;
8. Powerful query function, keeping track of equipment operation records and vehicle maintenance records at any time;
9. The patented design of the new oil bottle prevents the new oil from contacting with the outside air to absorb moisture and deteriorate;
10. Configure three electronic fans to ensure good ventilation in the equipment, stop and alarm and stop the equipment to continue operation;
11. Use high-sensitivity sensors to realize the leak detection function of the air-conditioning system and equipment;
12. Intelligent electronic scale protection device to avoid damage to the electronic scale during transportation;
13. Intelligent reminder to replace the filter and vacuum pump oil;
Parameter
technical parameter: Applicable refrigerant type: 1234yf
Working voltage: AC 220V Power: 1200W
Working environment temperature: -20ºC~+60ºC;
Display: 10-inch touch screen;
Oil bottle: 4*350ml, (patented sealing technology, PAG/POE/UV/waste oil);
Electronic scale: 5 (working tank, PAG/POE/UV/waste oil);
Electronic scale accuracy: 10g;
Recovery efficiency: more than 95%;
Recovery capacity: 1/4HP;
Vacuum capacity: 170L/min (6CFM); bipolar;
Working tank capacity: 15kg;
Filter processing capacity: 200kg;
Pressure gauge type: digital pressure display;
Ventilation and cooling fan: 3pcs (shutdown alarm)
Product size: 1150mm (height) *740mm (depth) *550mm (width)
Weight: 105kg
Specification
Details
Features
1. Automatically realize the recovery, vacuuming and filling of 1234yf refrigerant;
2. 10-inch touch screen configuration, full digital display and control, operation steps are prompted one by one;
3. Equipped with 5 high-precision electronic scales to realize accurate filling and weighing of refrigerant, PAG, POE, UV, and waste oil;
4. Upgrade the deep recovery function to increase the recovery efficiency to more than 95%;
5. Three refilling methods can be selected from HP/LP/HP+LP;
6. Built-in 20,000+ model refrigerant database, which can be added and edited as needed;
7. Configure the printer to print out the repair data, license plate information, and repair shop information as needed;
8. Powerful query function, keeping track of equipment operation records and vehicle maintenance records at any time;
9. The patented design of the new oil bottle prevents the new oil from contacting with the outside air to absorb moisture and deteriorate;
10. Configure three electronic fans to ensure good ventilation in the equipment, stop and alarm and stop the equipment to continue operation;
11. Use high-sensitivity sensors to realize the leak detection function of the air-conditioning system and equipment;
12. Intelligent electronic scale protection device to avoid damage to the electronic scale during transportation;
13. Intelligent reminder to replace the filter and vacuum pump oil;
Parameter
technical parameter: Applicable refrigerant type: 1234yf
Working voltage: AC 220V Power: 1200W
Working environment temperature: -20ºC~+60ºC;
Display: 10-inch touch screen;
Oil bottle: 4*350ml, (patented sealing technology, PAG/POE/UV/waste oil);
Electronic scale: 5 (working tank, PAG/POE/UV/waste oil);
Electronic scale accuracy: 10g;
Recovery efficiency: more than 95%;
Recovery capacity: 1/4HP;
Vacuum capacity: 170L/min (6CFM); bipolar;
Working tank capacity: 15kg;
Filter processing capacity: 200kg;
Pressure gauge type: digital pressure display;
Ventilation and cooling fan: 3pcs (shutdown alarm)
Product size: 1150mm (height) *740mm (depth) *550mm (width)
Weight: 105kg
Specification
Model Number | AC80 |
Refrigerant type | 1234yf |
voltage | interflow 220V |
power | 1200w |
Working Temperature | -20ºC~+60ºC |
display screen | 10 inch touch screen |
oil bottle | 350 ml |
electronic scale | 5 pcs |
Electronic scale accuracy | 10g |
retrieve capability | 1/4HP |
Vacuuming capacity | 170L/min |
